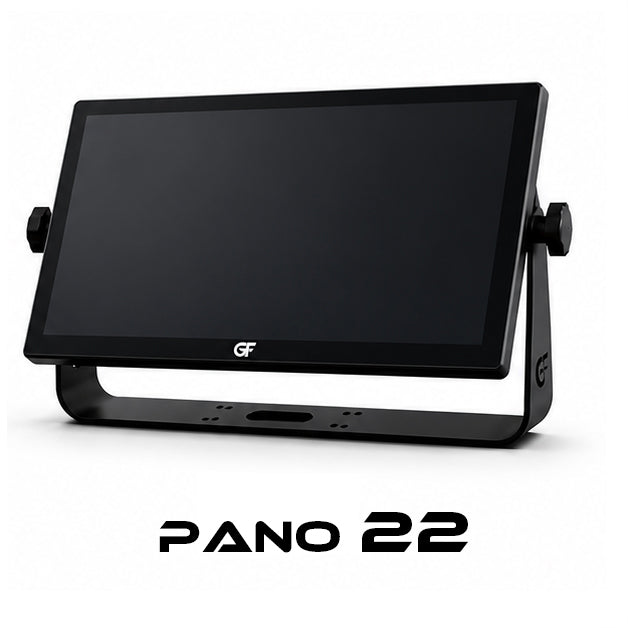

Pano 22 – 21.5" Full IP67 Waterproof Touch Display

Command the Water. See Everything. Lighter than ever.
The Pano 22 is a true giant at the helm — a massive 21.5 inches of Full HD clarity that transforms your dash into a full command center. With its expansive viewing area, you can run split screens for charts, sonar, radar, and cameras all at once without crowding your view. Paired with 1500 nits of sunlight-readable brightness, a 1000:1 contrast ratio, and full IP67 waterproofing, this display delivers unmatched visibility and control in any condition.

📦 Flat Rate $25 Shipping - Please note: A signature will be required upon delivery of all GF Screen orders to ensure safe arrival.

🎣 Why You’ll Love It

• See Everything: 21.5" of edge-to-edge clarity

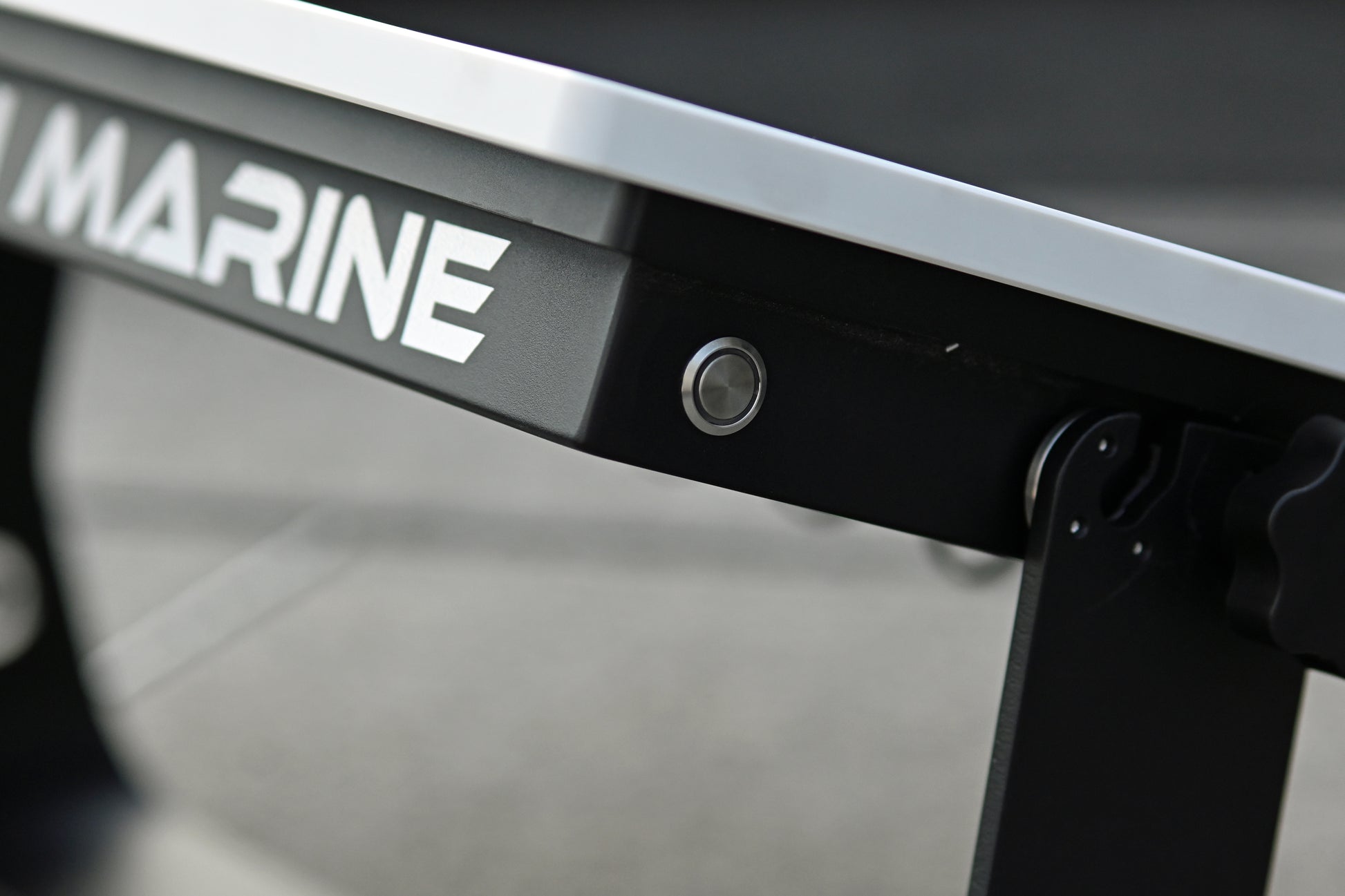

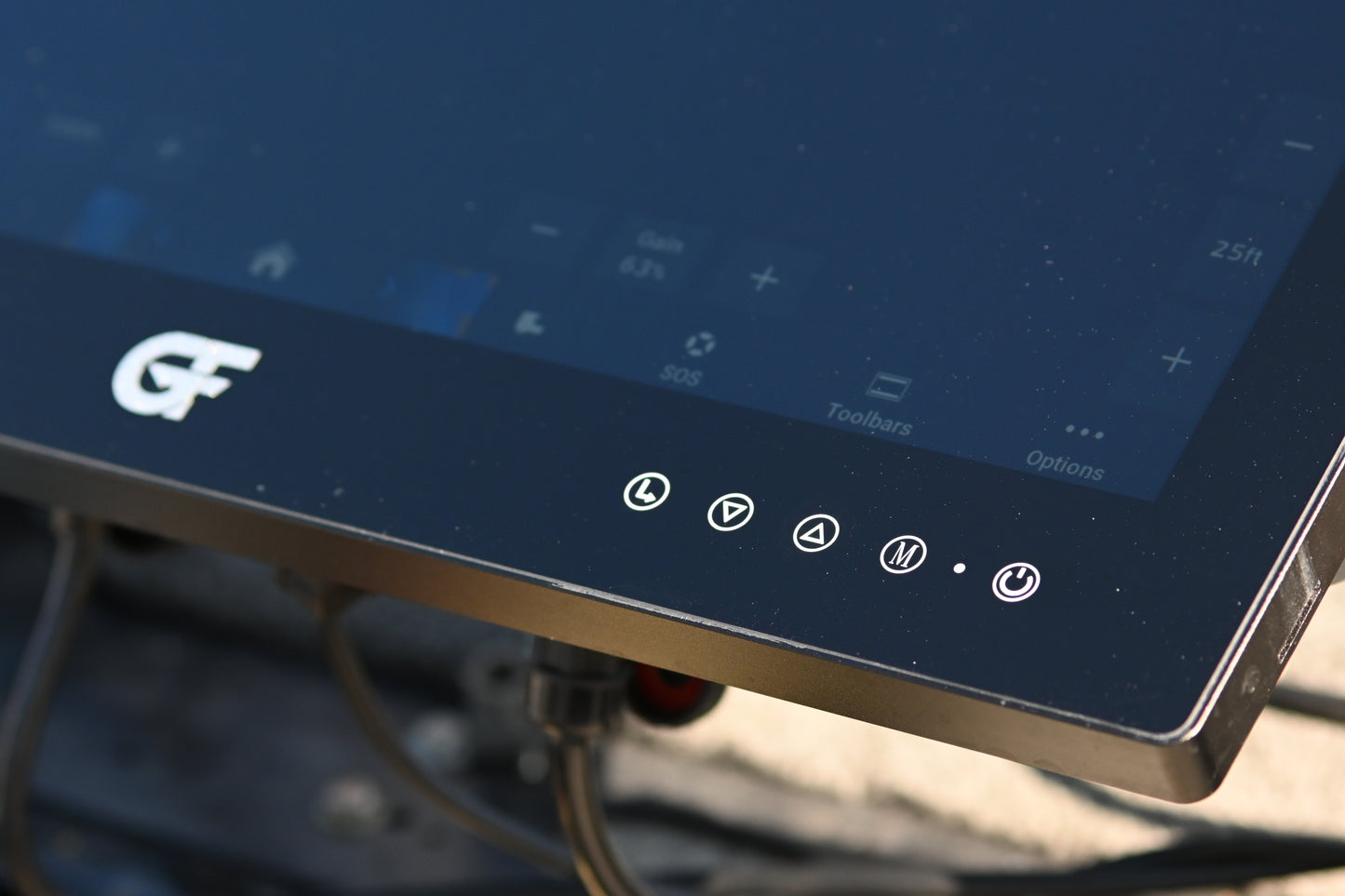

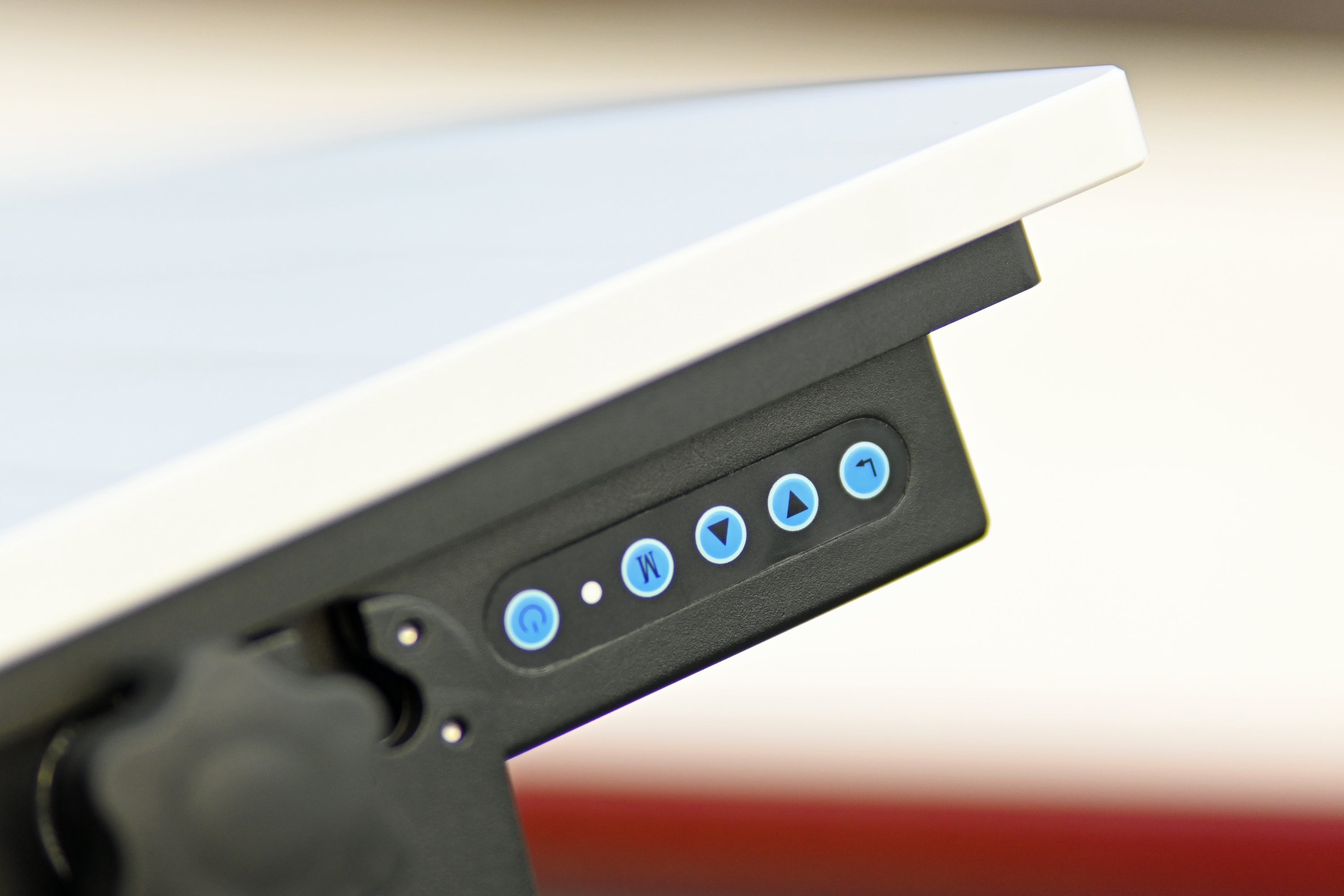

• Slimmer Package: Relocated buttons for a tighter layout on your rig.
• Weight Conscious: Now 30% lighter than the Pano 22 Mark I display.

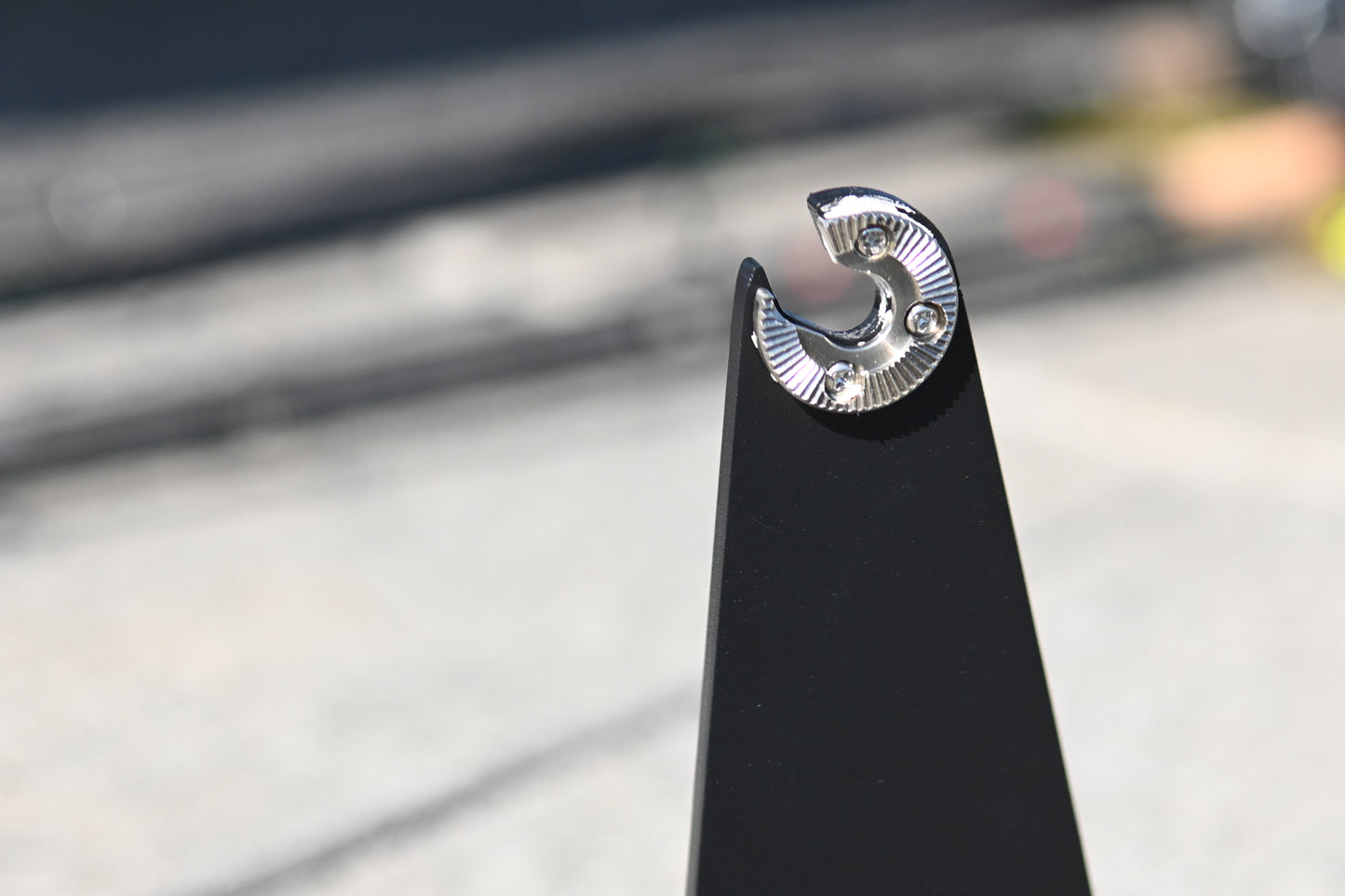

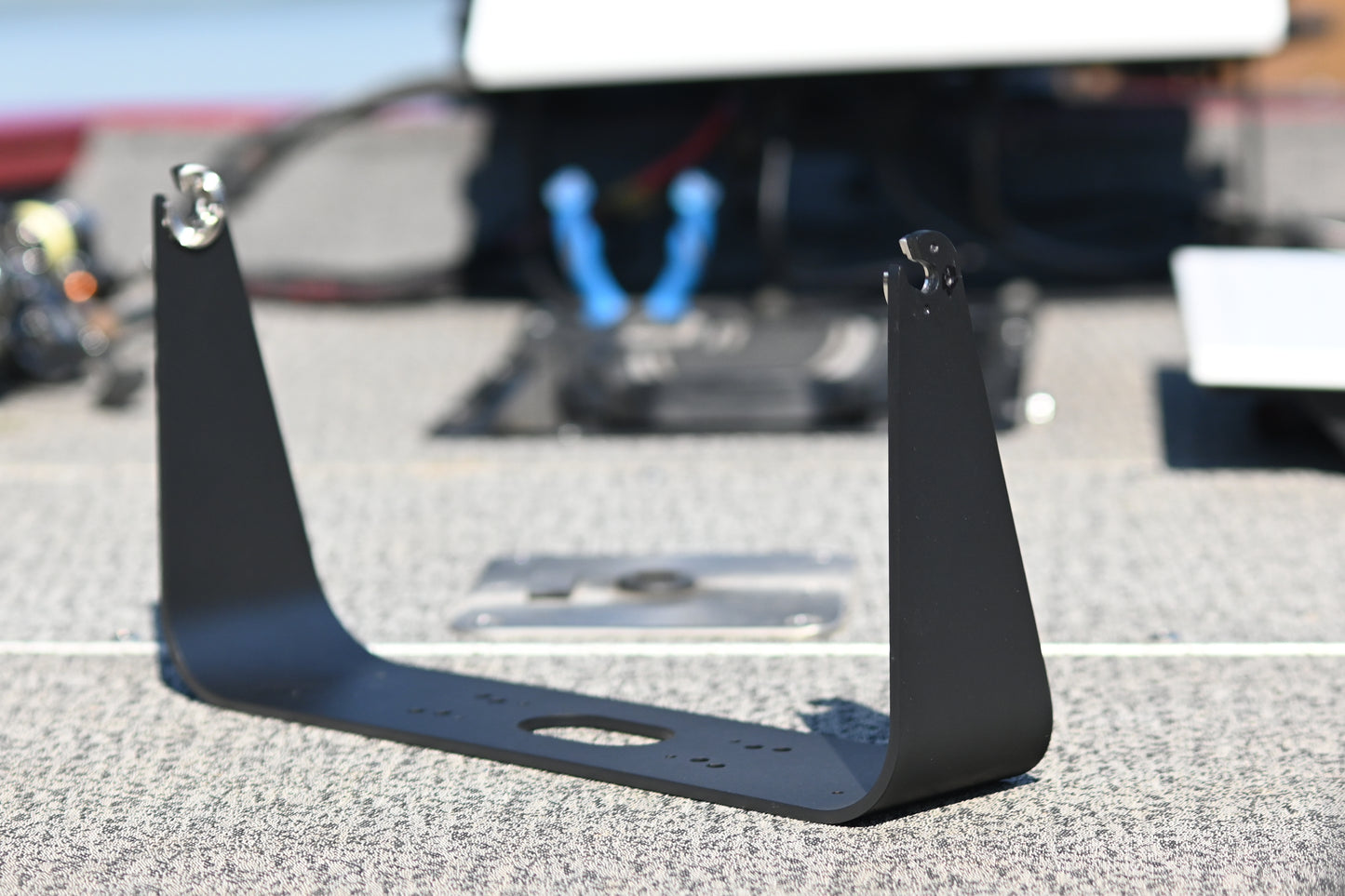

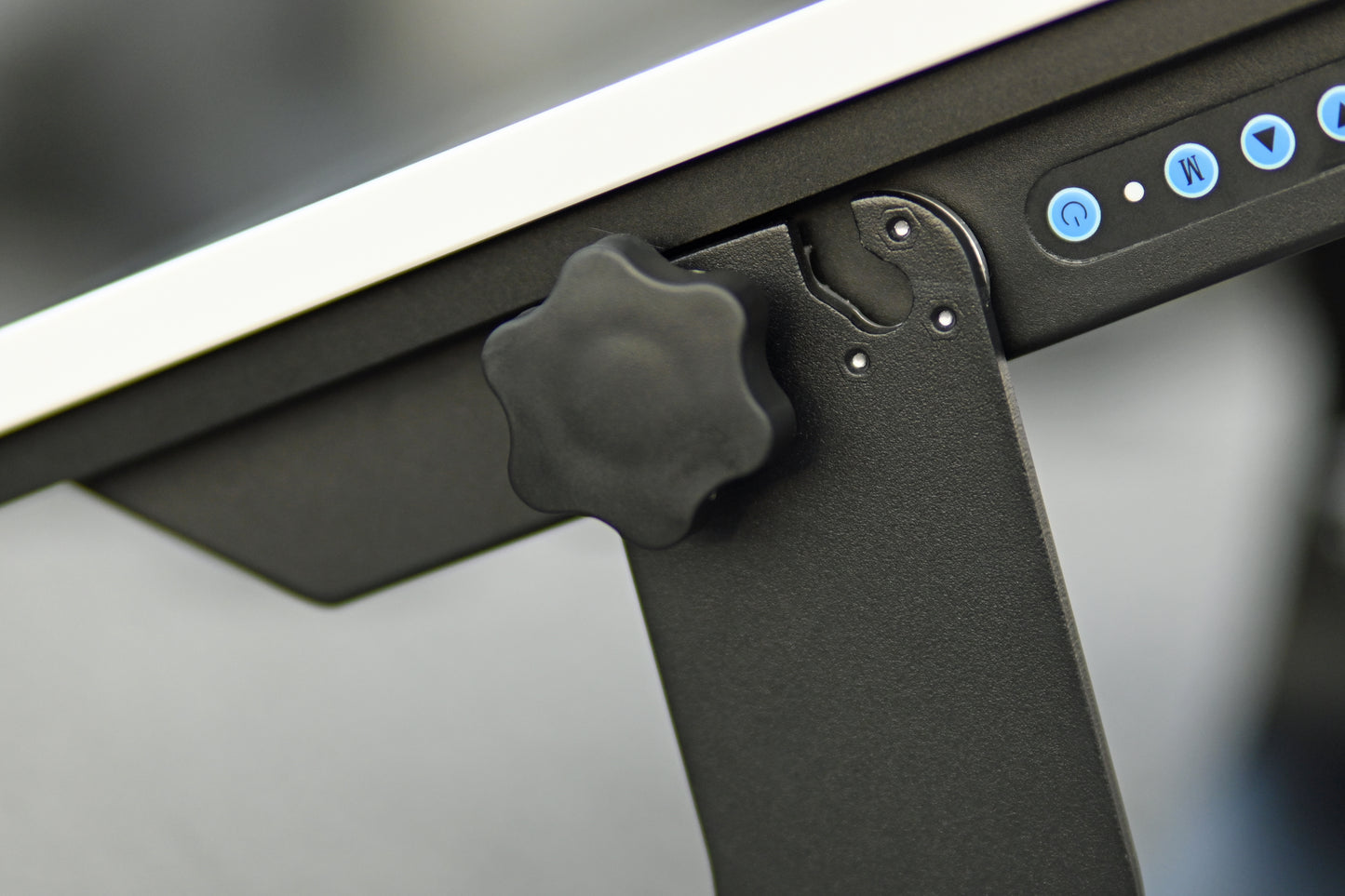

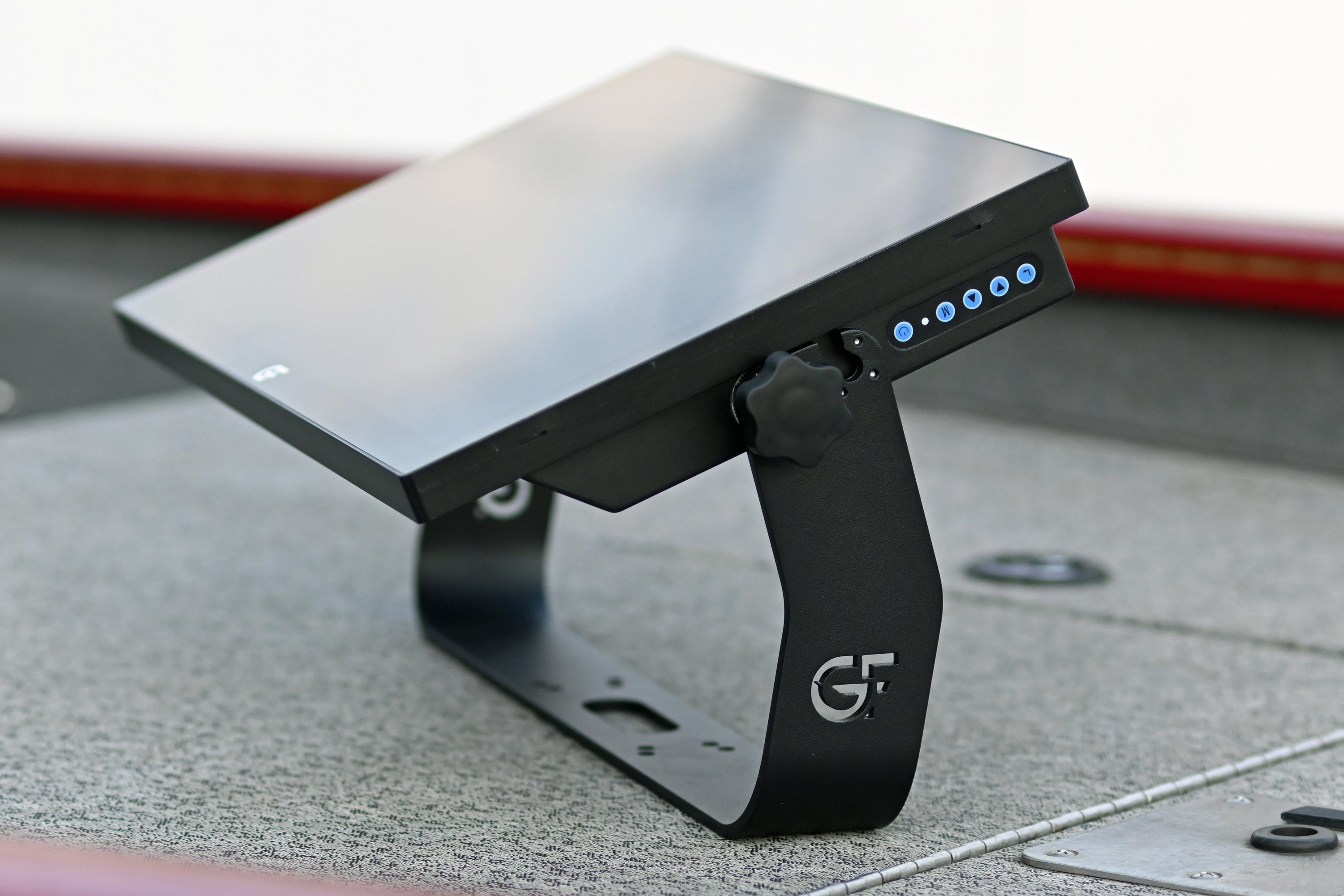

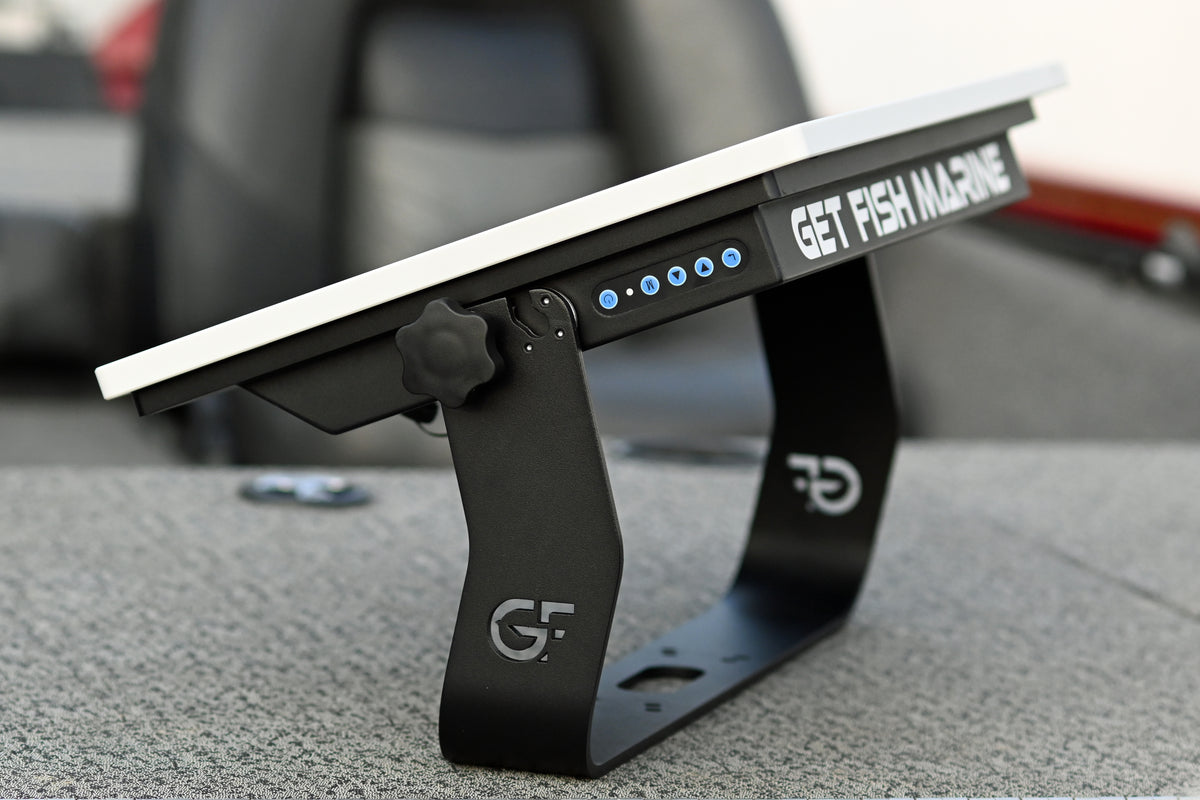

• New Aluminum Cradle: Lighter and now with a second pivot point.
• Sunlight-Readable: 1500 nits with auto-dimming sensor
• Ultra-Dark Blacks: 1000:1 contrast ratio for deep blacks and vivid detail
• True Waterproofing: IP67-rated, dustproof, and wash-down safe
• Always Clear: Optical bonding + anti-glare to cut fog and reflections
• Precision Touch: 10-point capacitive works even with water droplets

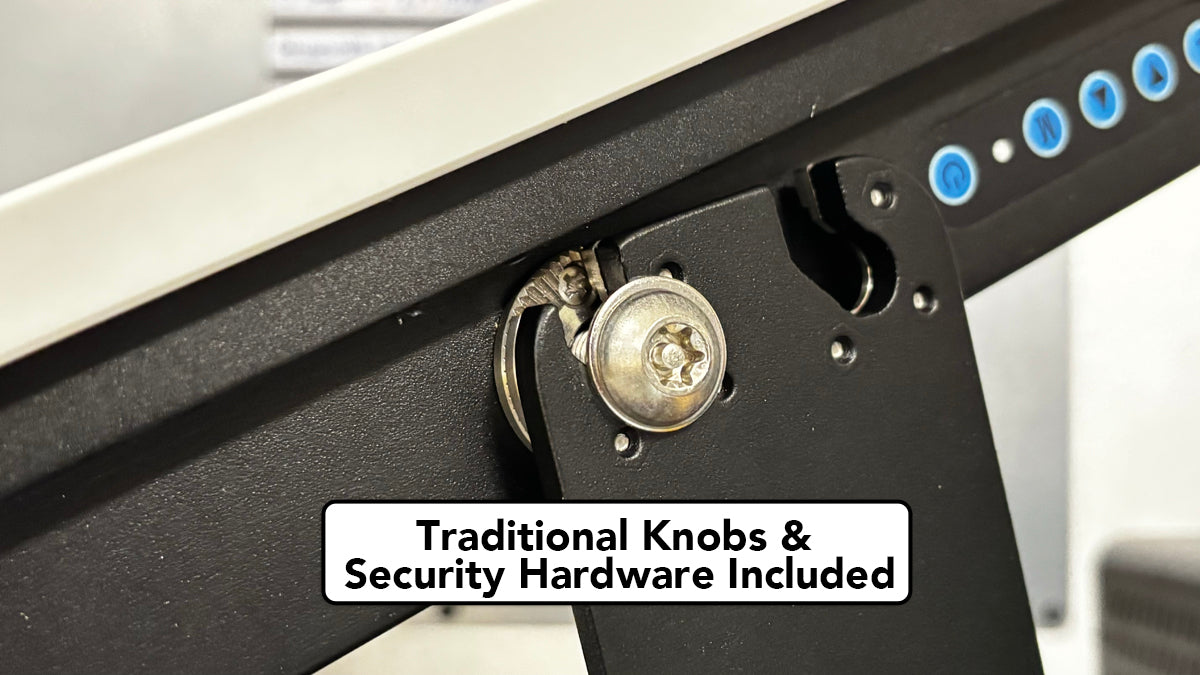

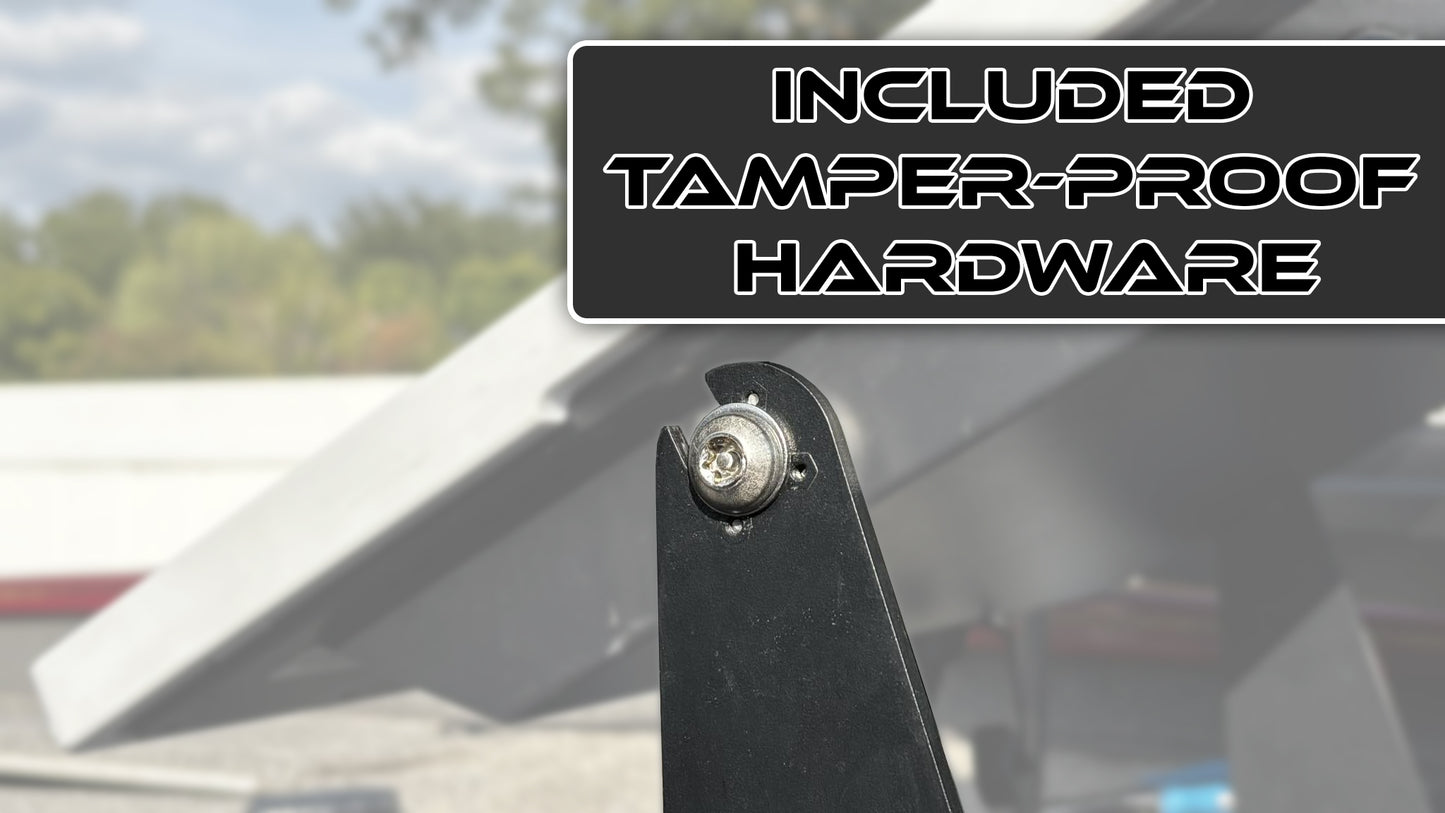

• Lock 'em Up Security: We include Tamper-proof Display-to-Cradle Hardware

📦 Package Includes:

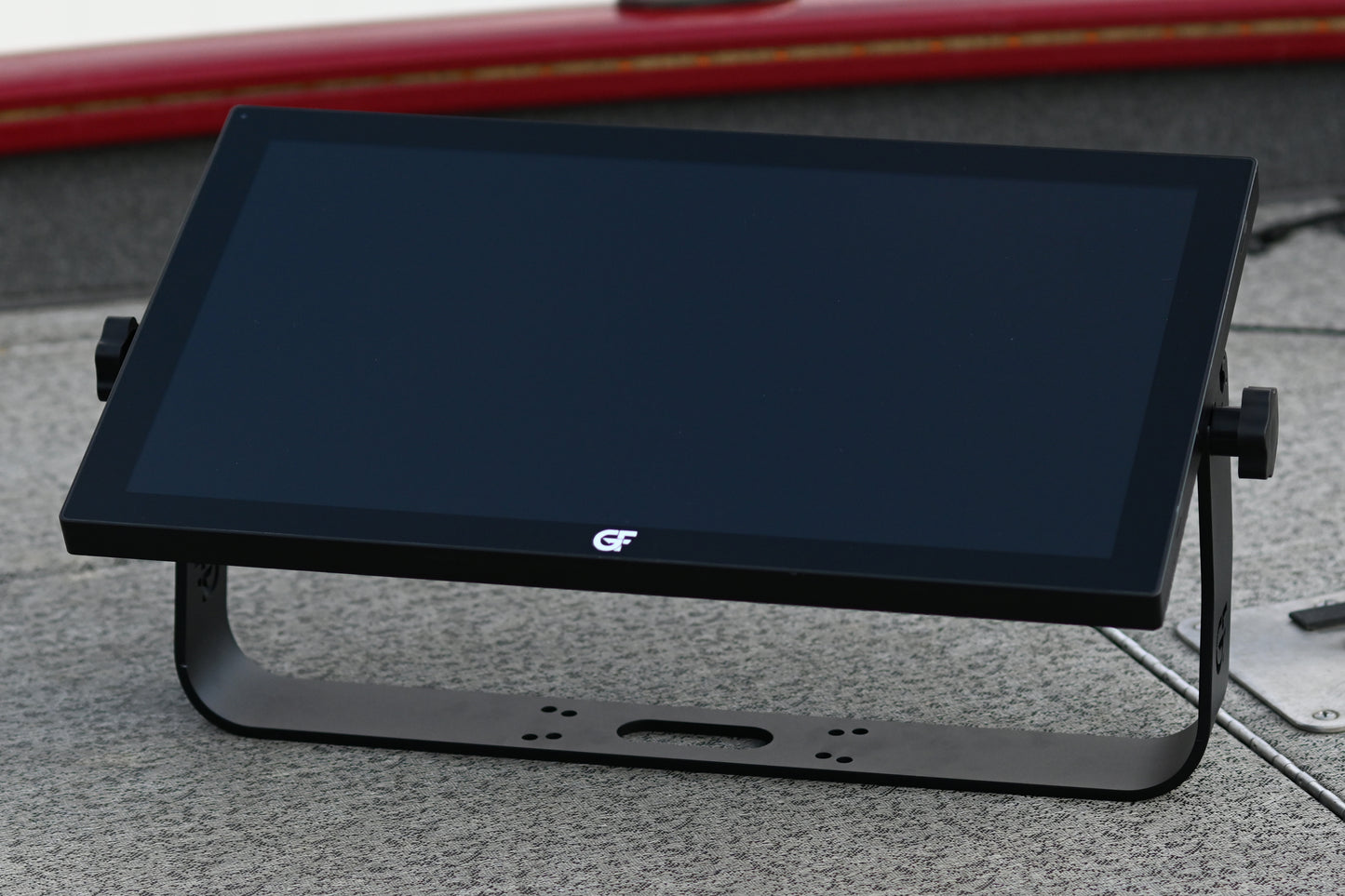

• 21.5" Full IP67 Waterproof Touch Display

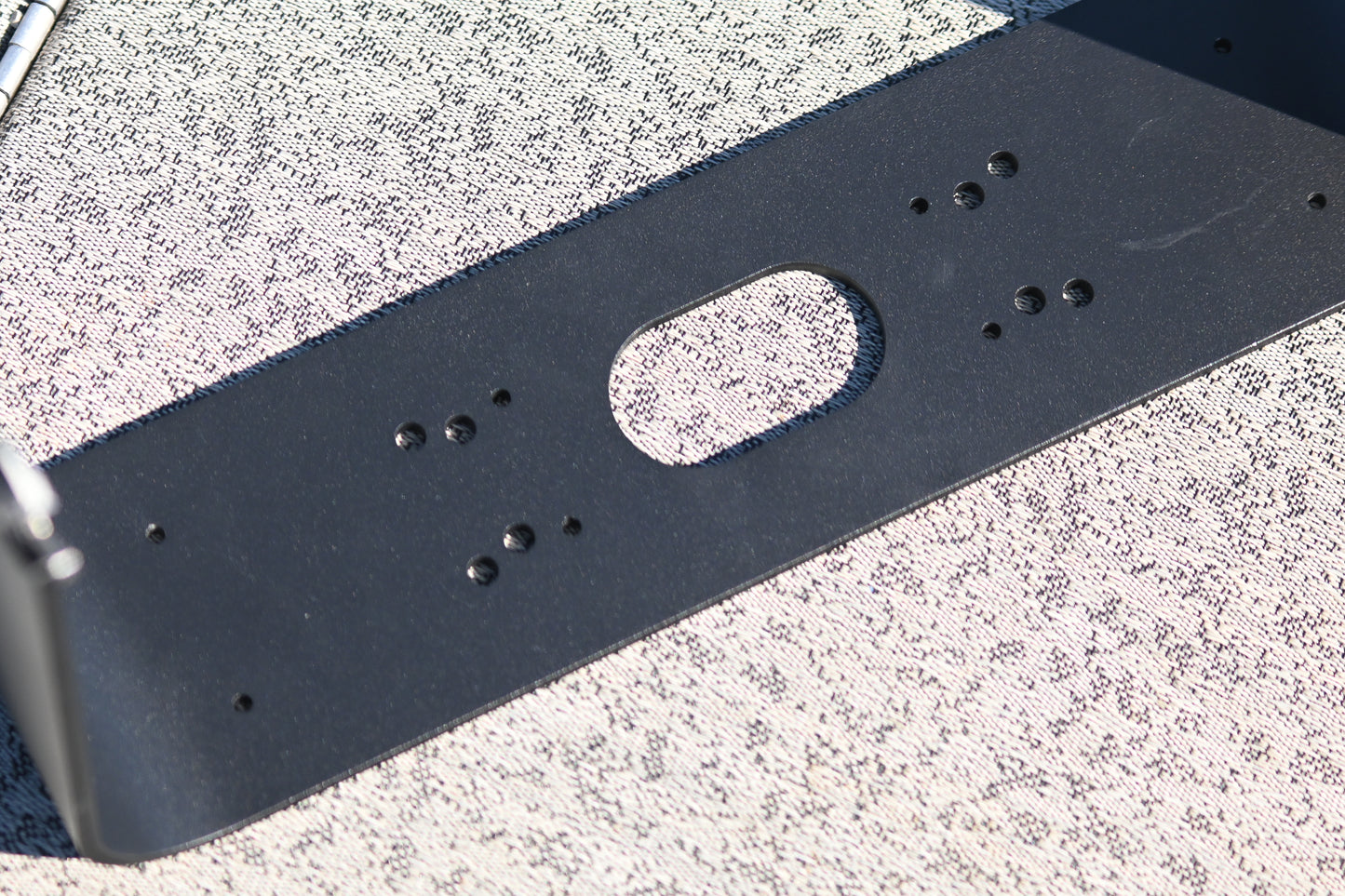

• Heavy-Duty U-shaped aluminum mounting bracket - dual pivot points

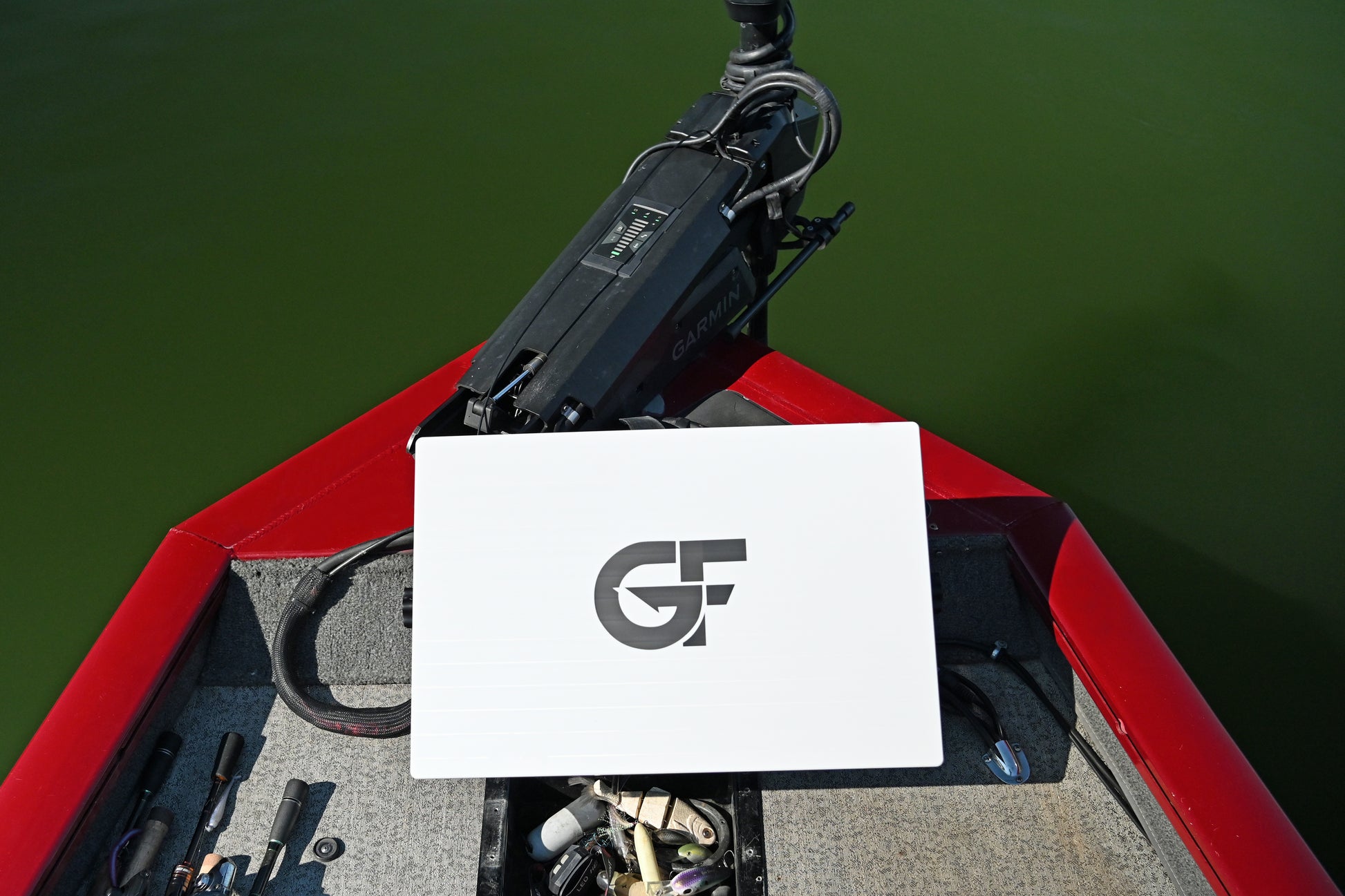

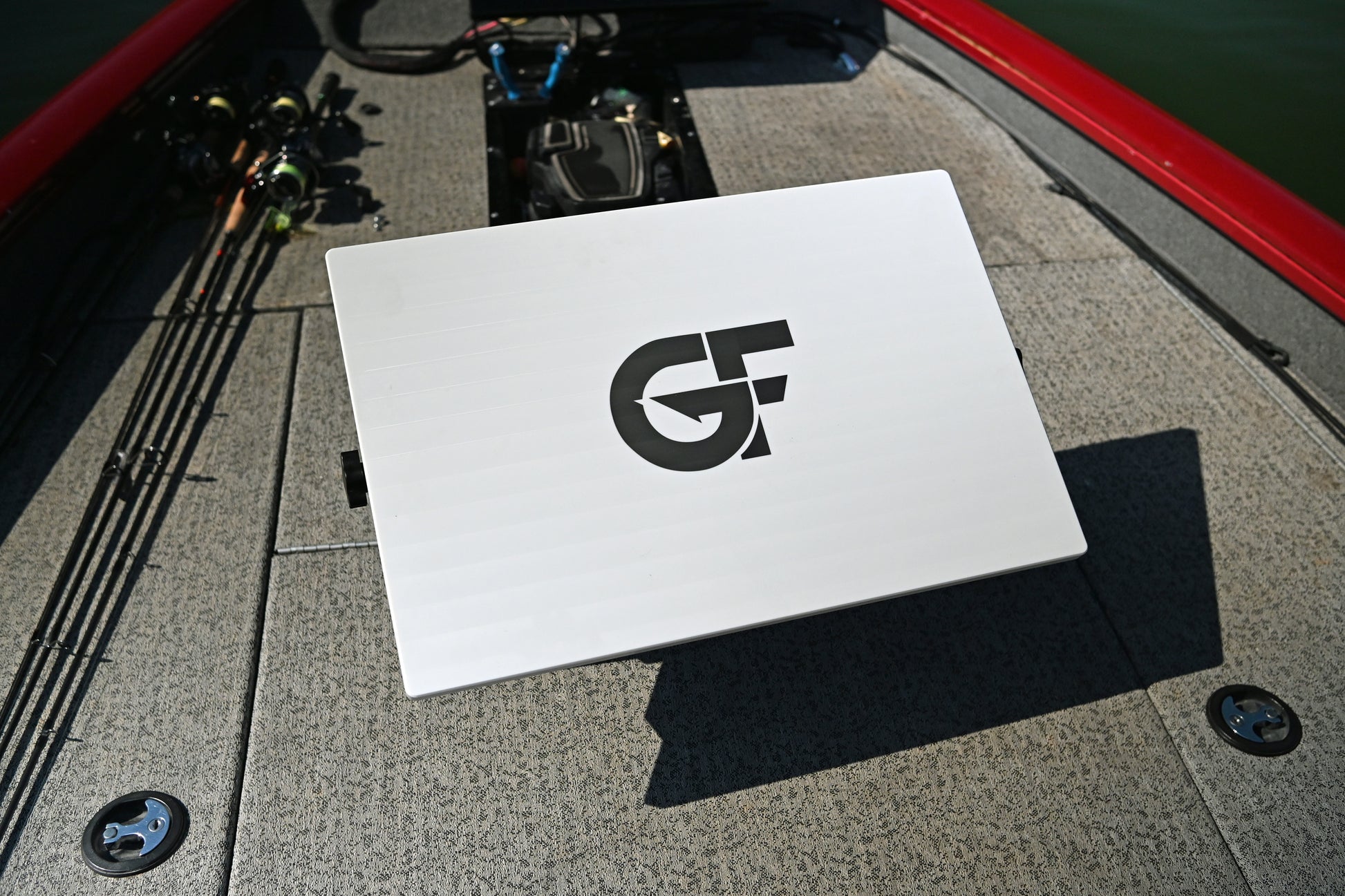

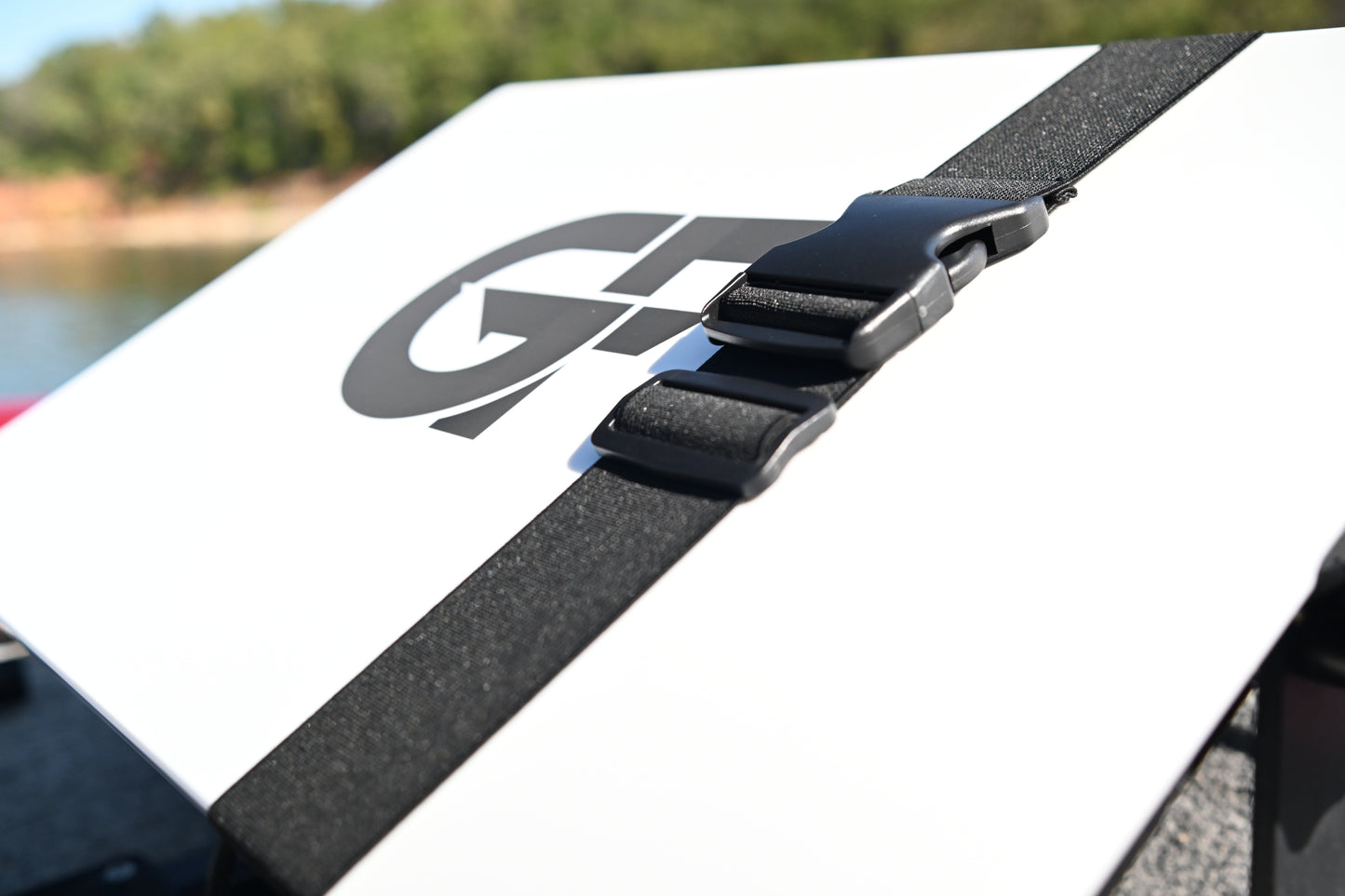

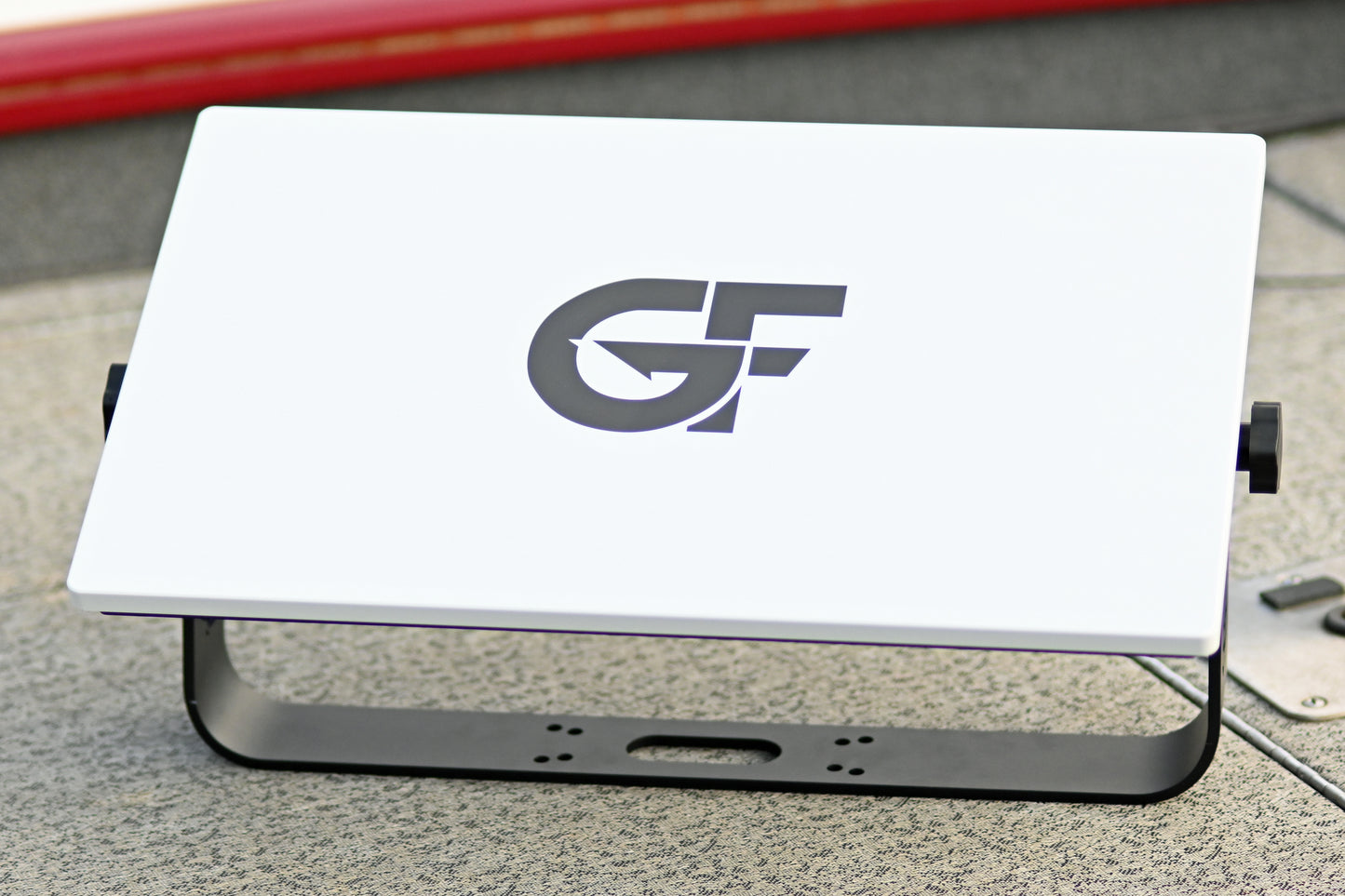

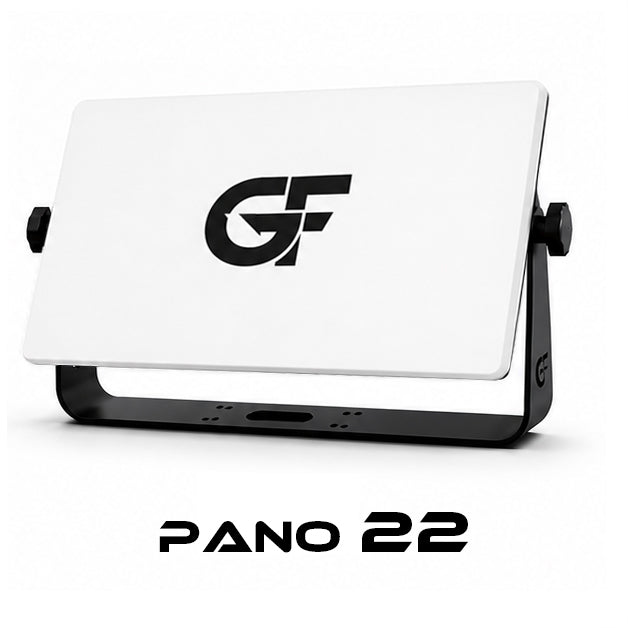

• "GF" protective sun cover with buckle strap (for towing & storage)
• (2) Stainless Tamper-Proof Torx Display-to-Cradle Bolts
• Waterproof HDMI cable – 26 ft (8 m) - Updated Length
• (1) Waterproof USB touch cable [Micro USB] – 26 ft (8 m) - Updated Length
• USB-C adapter (where applicable)
• DC power cable – 26 ft (8 m) - Updated Length

🖥️ Display:

• 21.5" industrial-grade LCD, 1920×1080 Full HD, 16:9 aspect ratio
• Brightness: 1500 nits sunlight-readable with auto-dimming light sensor
• Contrast Ratio: 1000:1
• Viewing Angles: 89°/89°/89°/89° (R/L/U/D)
• Weight w/Stand: 16.7lb.

✅ Compatibility:

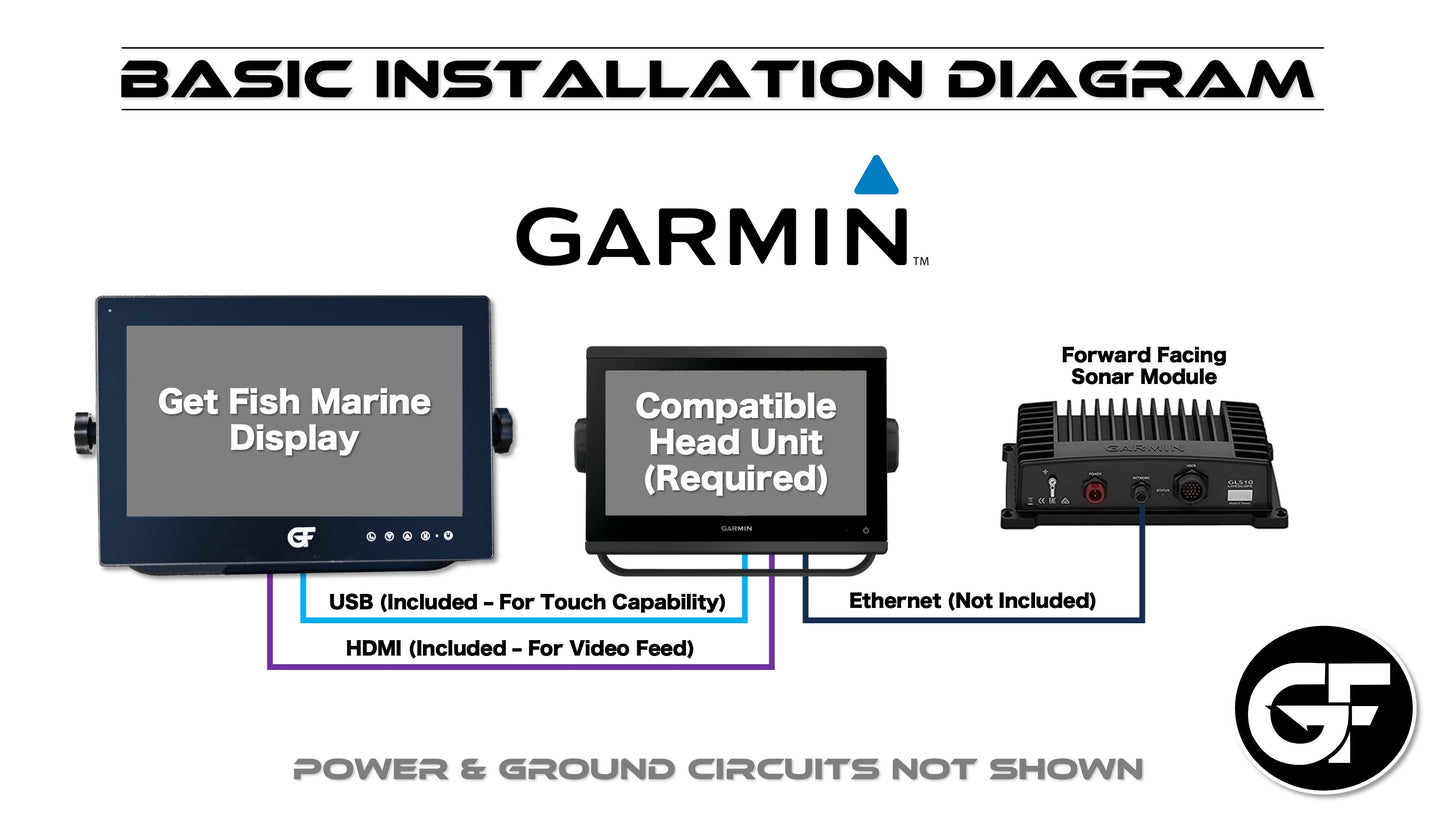

• See Get Fish Marine Compatibility Page
• Compatible with Most Garmin GPSMAP Units
• Lowrance Compatibility is In-Process with RMP Connect Module. Not available at this time.

👆Touch Technology:

• 10-point capacitive
• EETI waterproof solution – works even with water on screen

🛡️ Build & Protection:

• Optical bonding prevents condensation, improves clarity
• Anti-glare coating reduces reflections
• IP67-rated, fully waterproof and dustproof

🔋 Power & Connectivity:

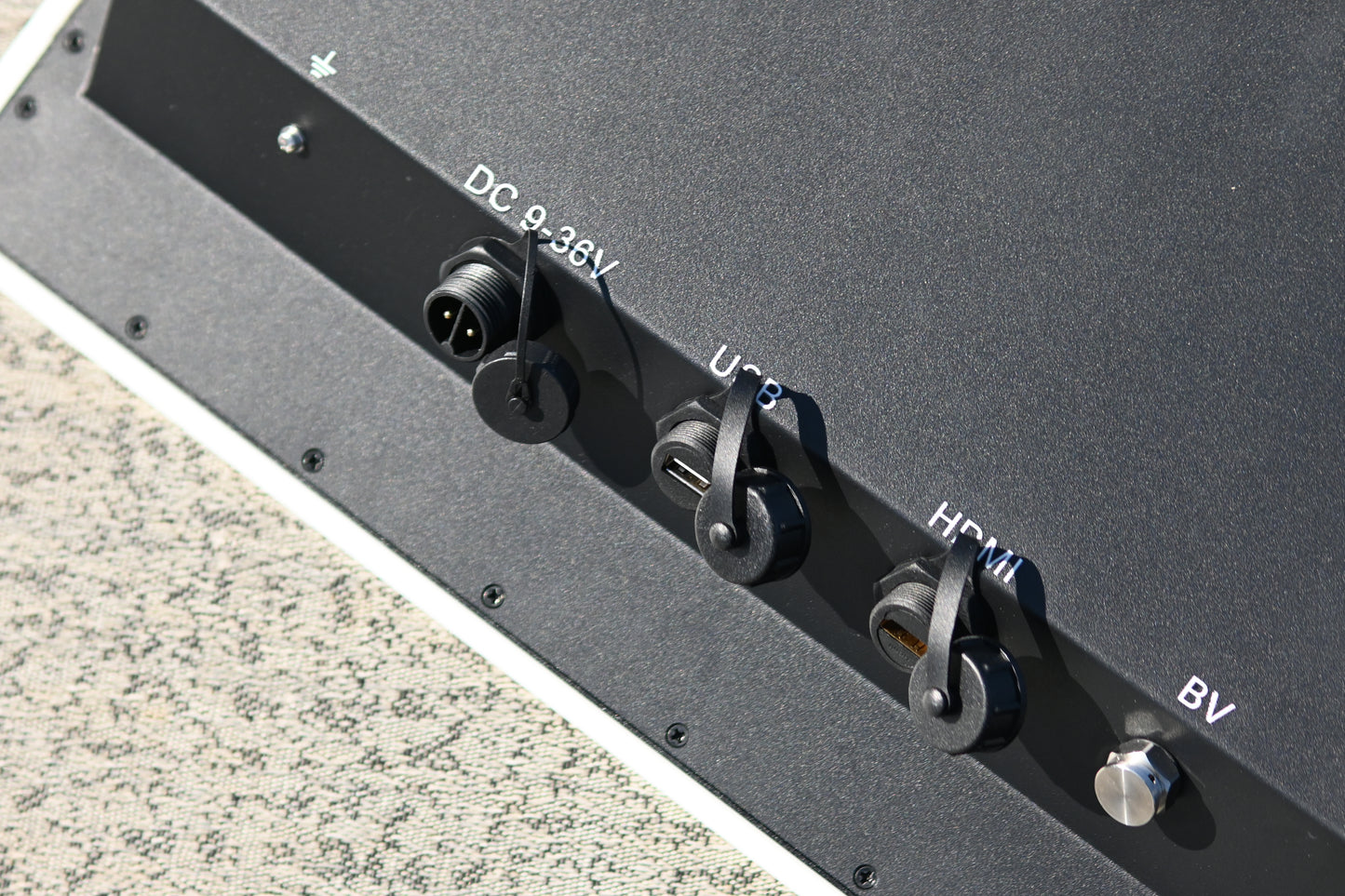

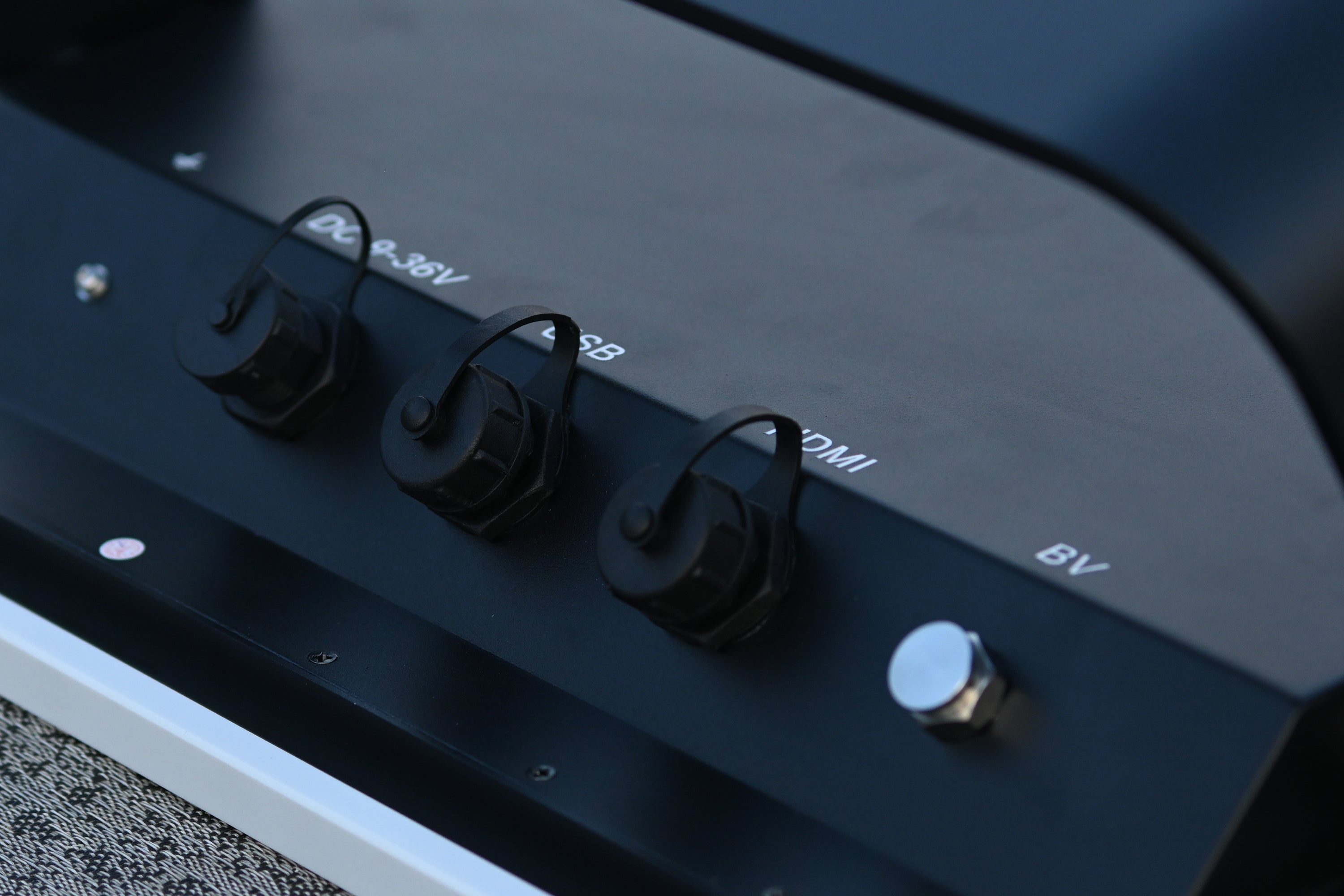

• HDMI + USB Touch + DC IN
• Operating Temp: -4°F to 158°F (-20°C to 70°C)
• Power Input: DC 9–36 vdc

❓Comparison:

• NBT Marine vs Get Fish Marine Specs (10/06/2025)
