Define 17

$2,749.99
$2,749.99
Brand: Get Fish Marine
Availability: Out of stock
$2,749.99
$2,749.99

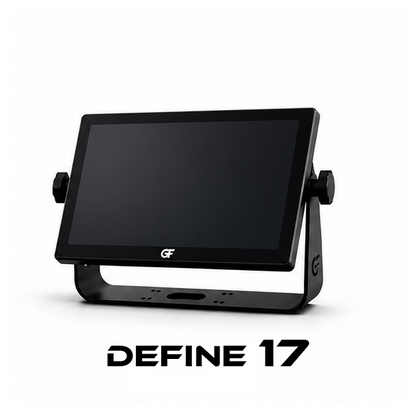

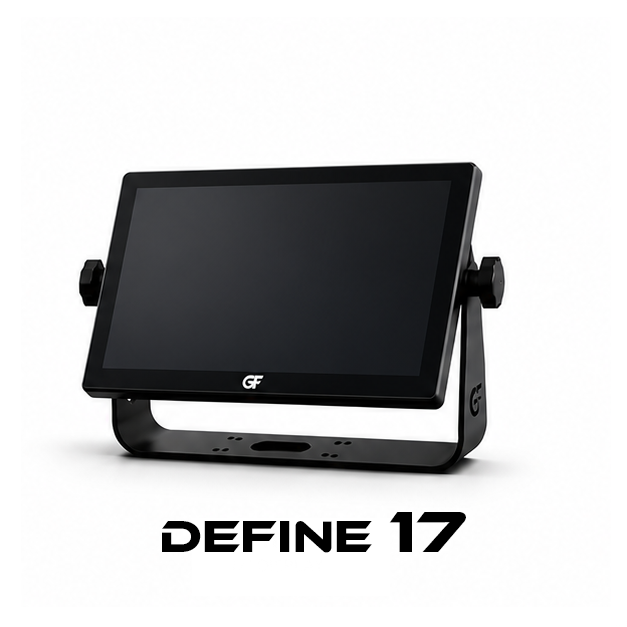

Define 17  – Our Highest Resolution

Sharper. Brighter. Next-Level Clarity.
The Get Fish Marine (GF) Define 17 is built for anglers who want maximum image detail in a compact marine display. Its 4K panel delivers 8.3 million pixels and exceptional contrast, giving charts, sonar, radar, and camera feeds a sharper, more defined look. A 1300-nit sunlight-readable display, optical bonding, and anti-glare treatment keep the image clear in changing conditions, while the IP67-sealed aluminum and steel construction is built for serious marine use.

🎣 Why You’ll Love It

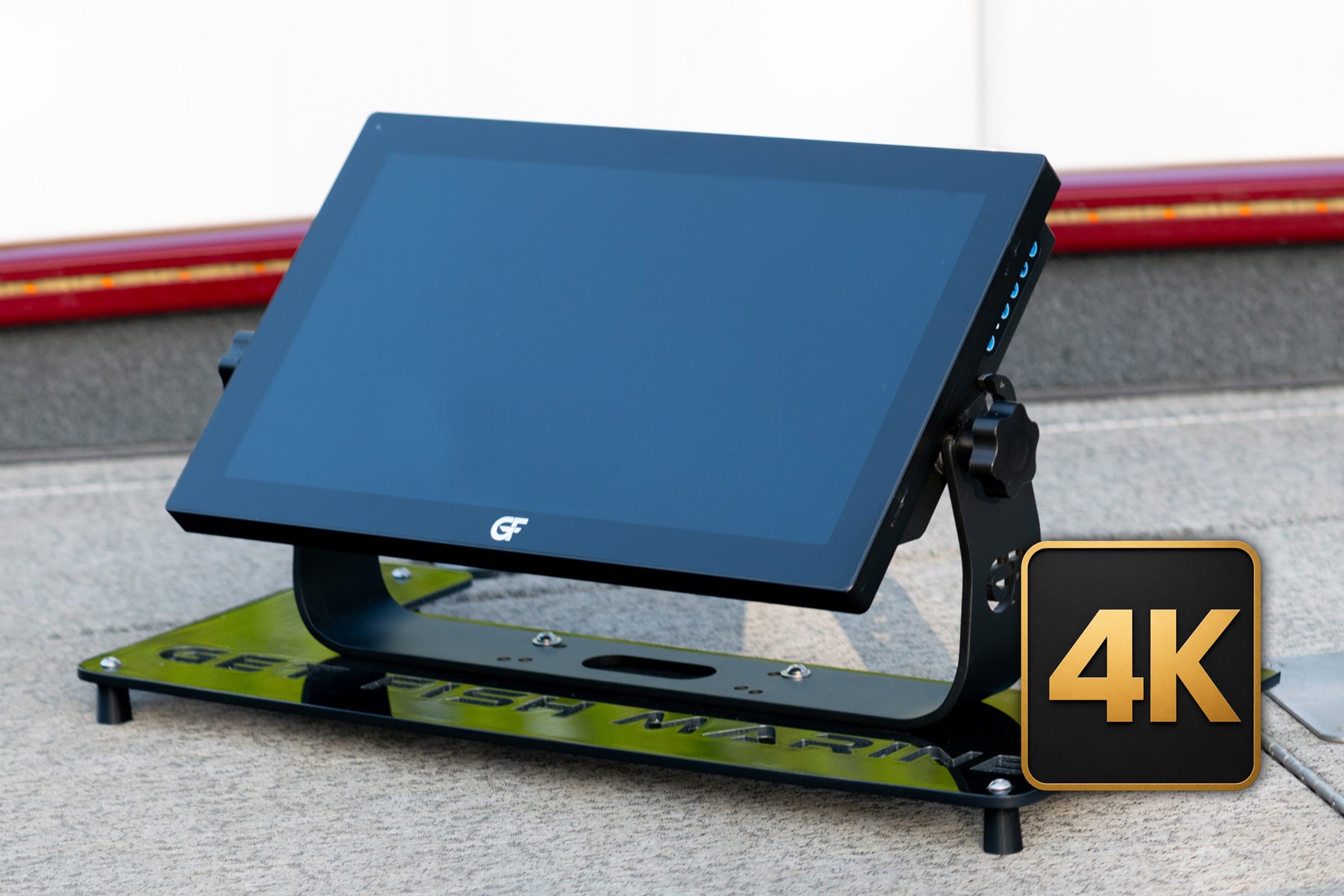

  • 4K Ultra Clarity: 8.3 million pixels for exceptional detail and definition.

  • Deep, True Blacks: 12,000:1 contrast ratio for dramatically richer blacks and stronger image separation.

  • Sunlight-Readable: 1300 nits for clear visibility in direct sunlight.

  • Optically Bonded: Fewer reflections, no air gap, no internal fogging.

  • IP67 Waterproof: Dustproof, rainproof, and safe for normal wash-down conditions.

  • Responsive Touch: 10-point capacitive touchscreen with a dedicated touch ON/OFF control.

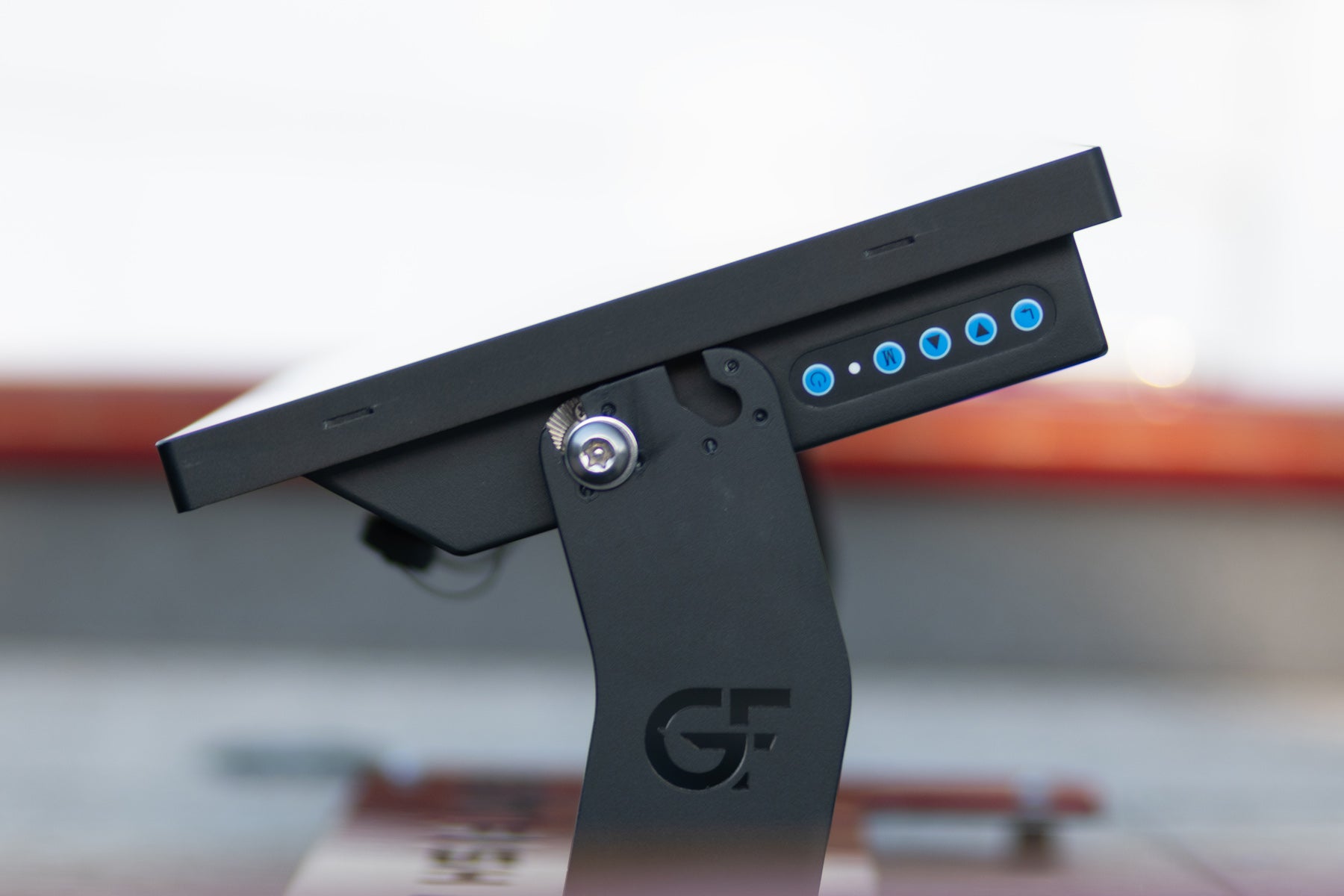

  • Premium Construction: Aluminum bezel and reinforced steel housing built for long-term marine use.

  • Anti-Glare Display: Reduces reflections and preserves image clarity in bright conditions.

  • Everything Included: Compatible Garmin installations require nothing else.

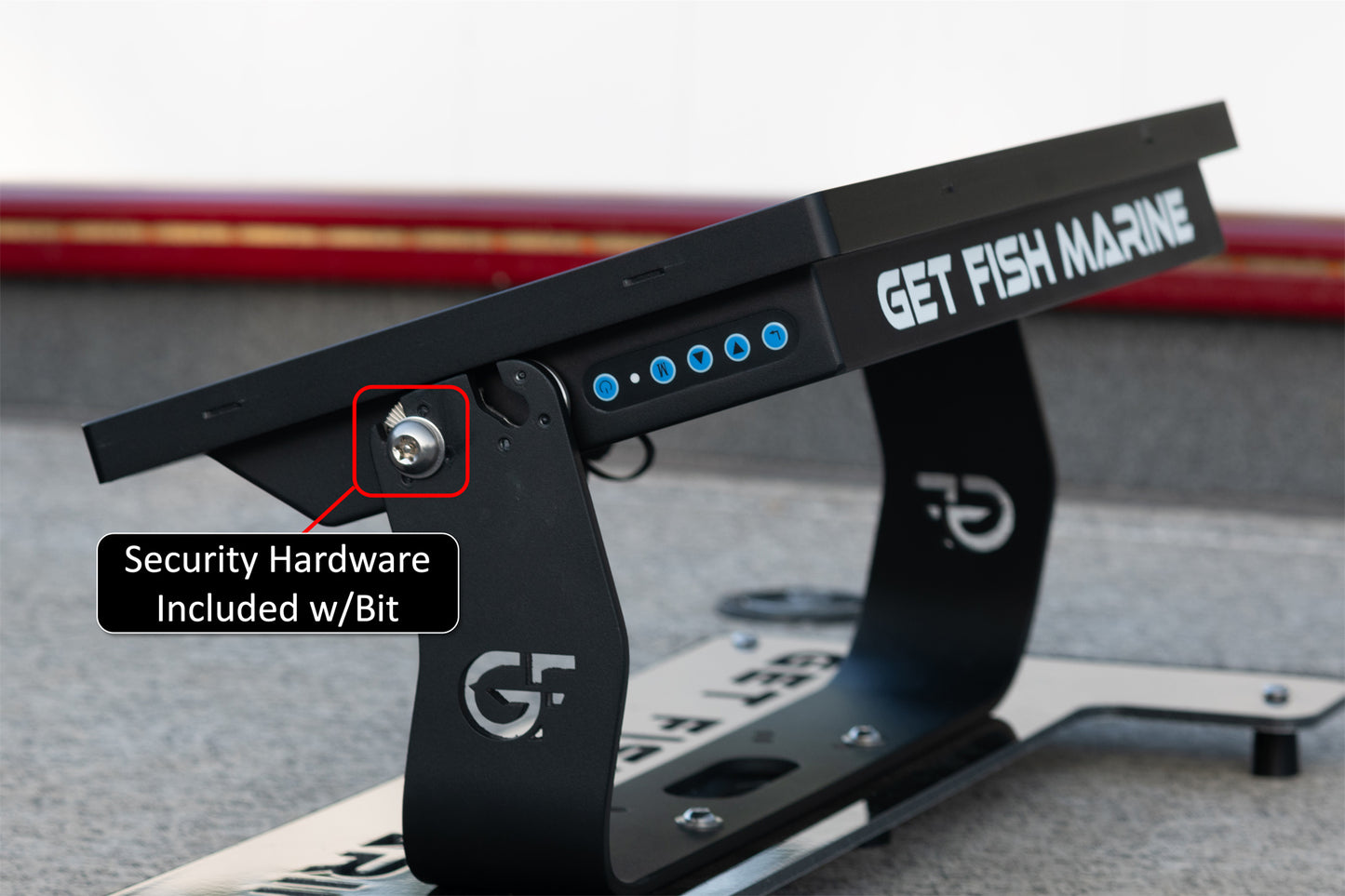

  • Enhanced Security: Tamper-resistant hardware included at no extra cost.

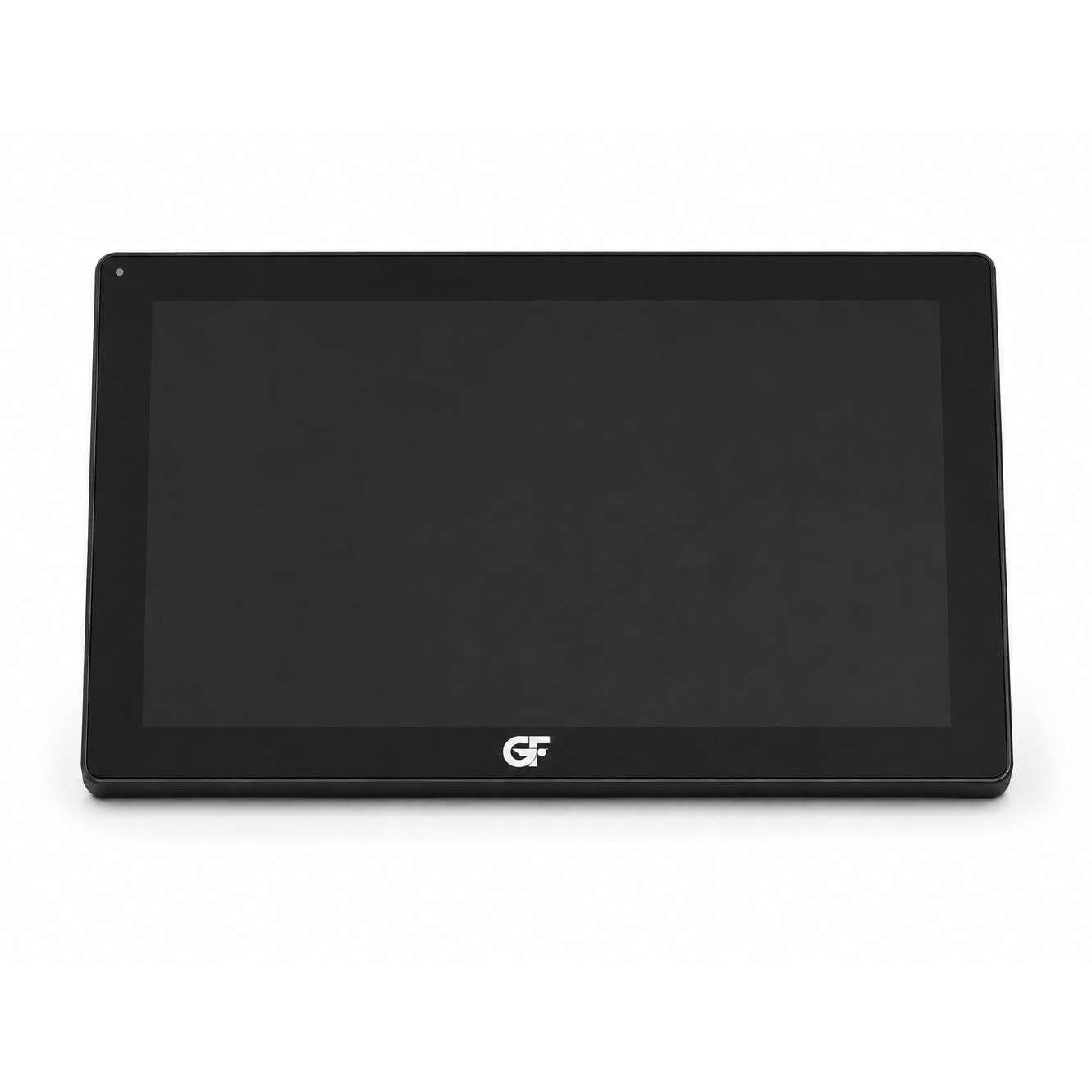

Display

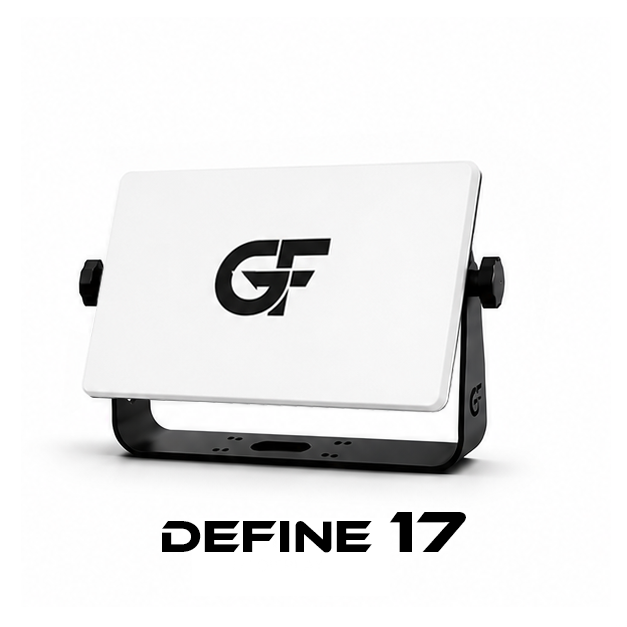

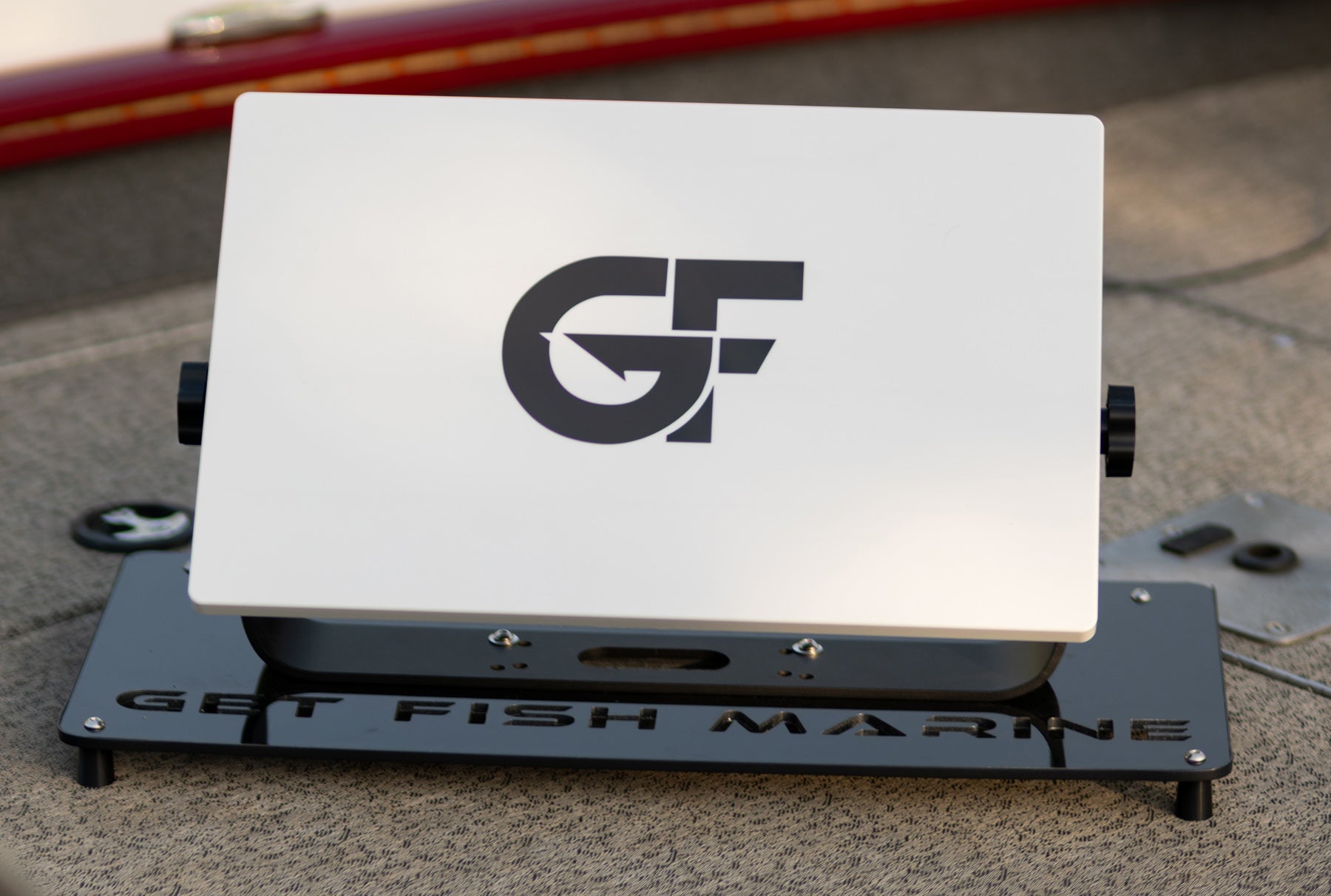

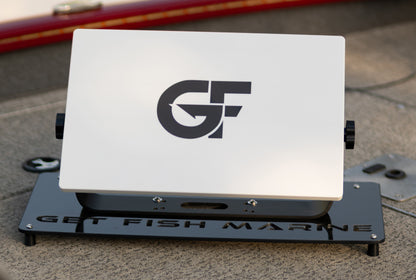

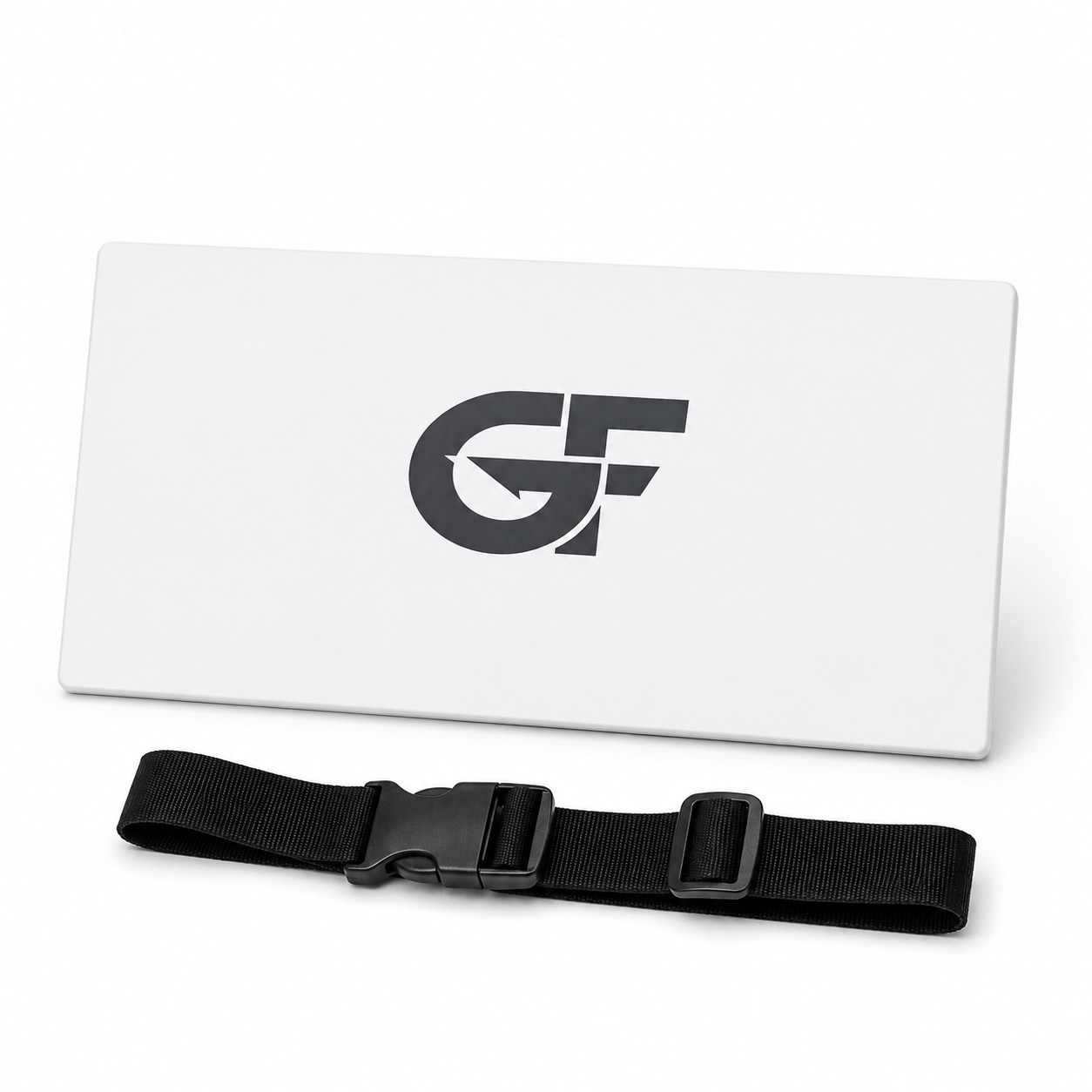

Sun Cover w/Strap

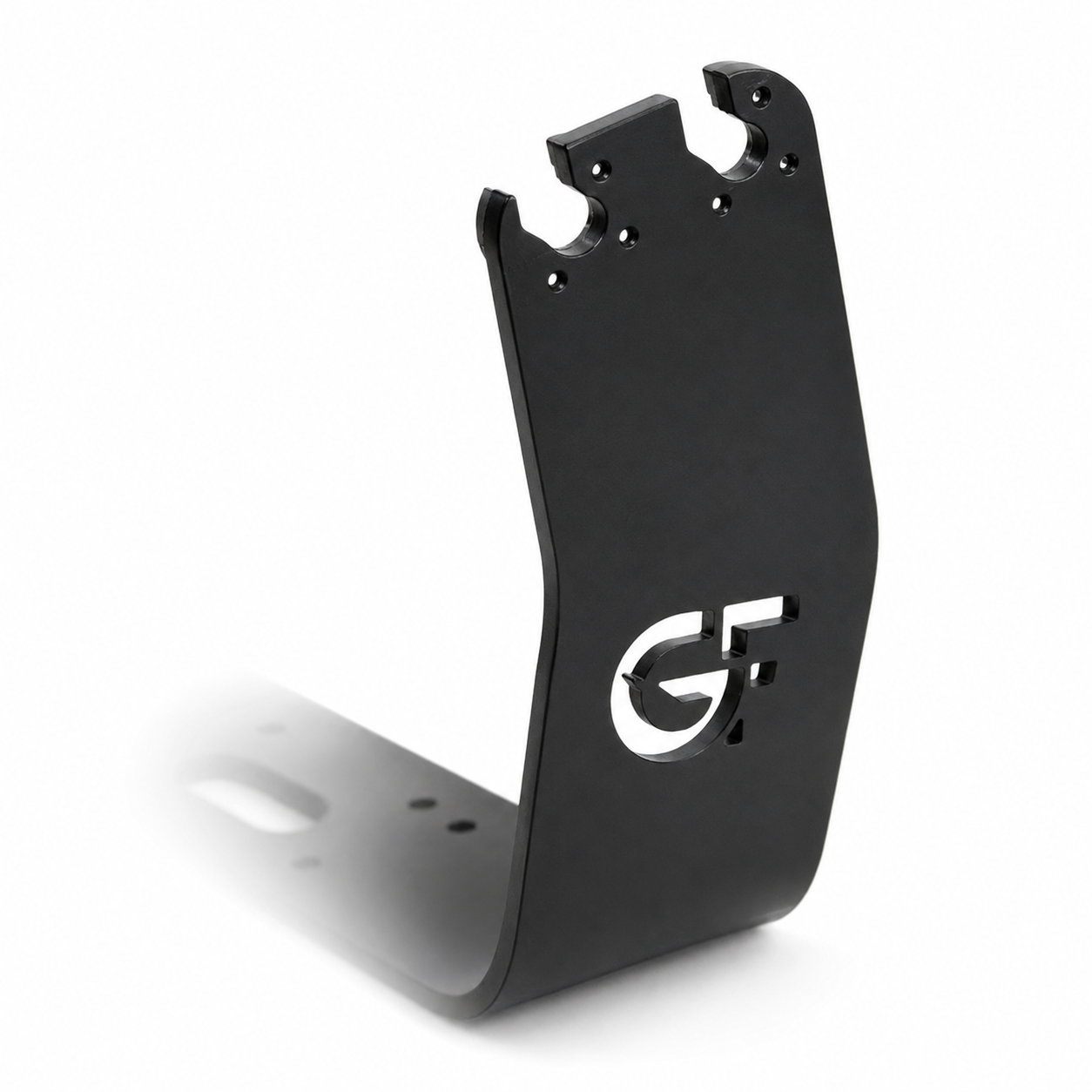

Aluminum Mount

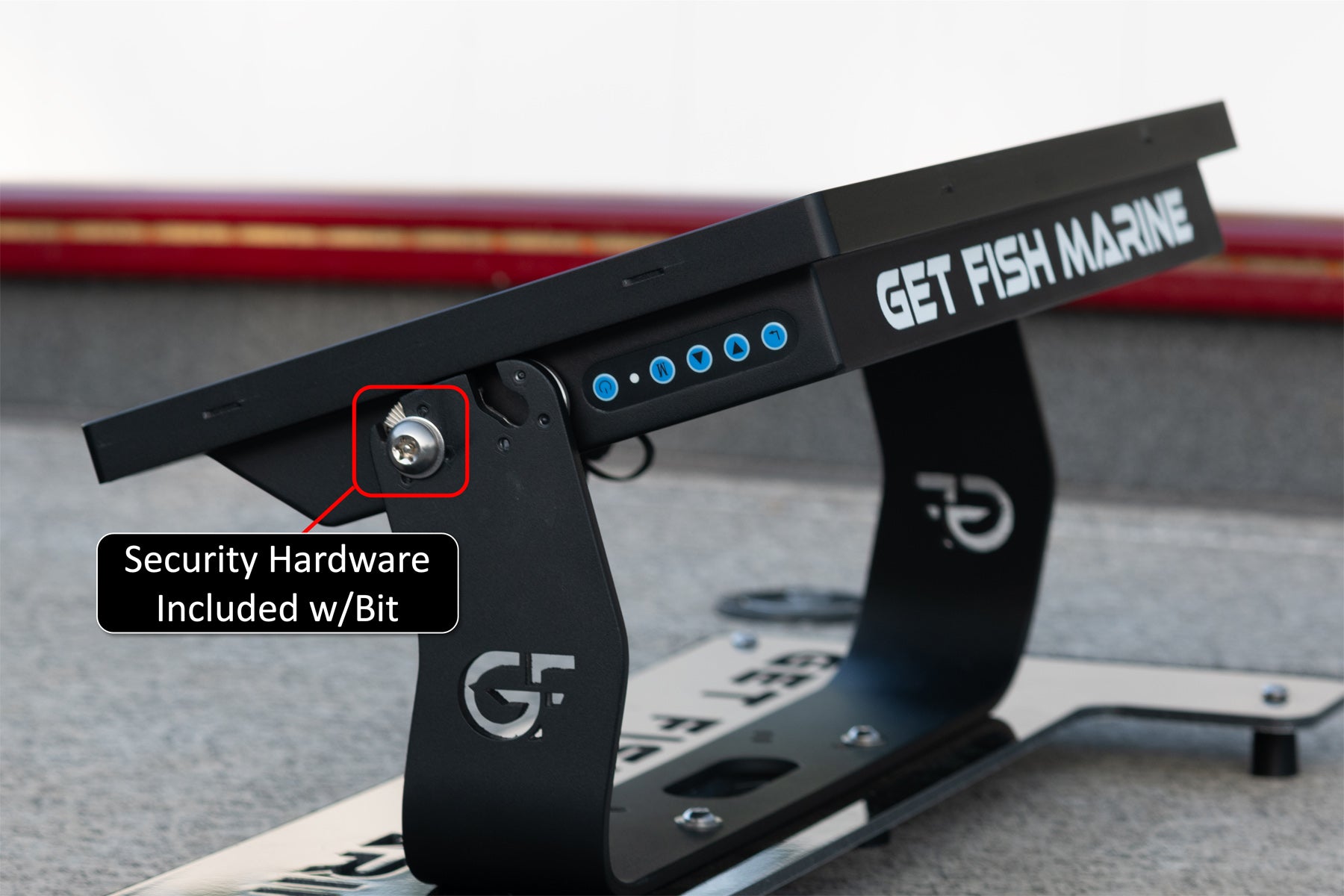

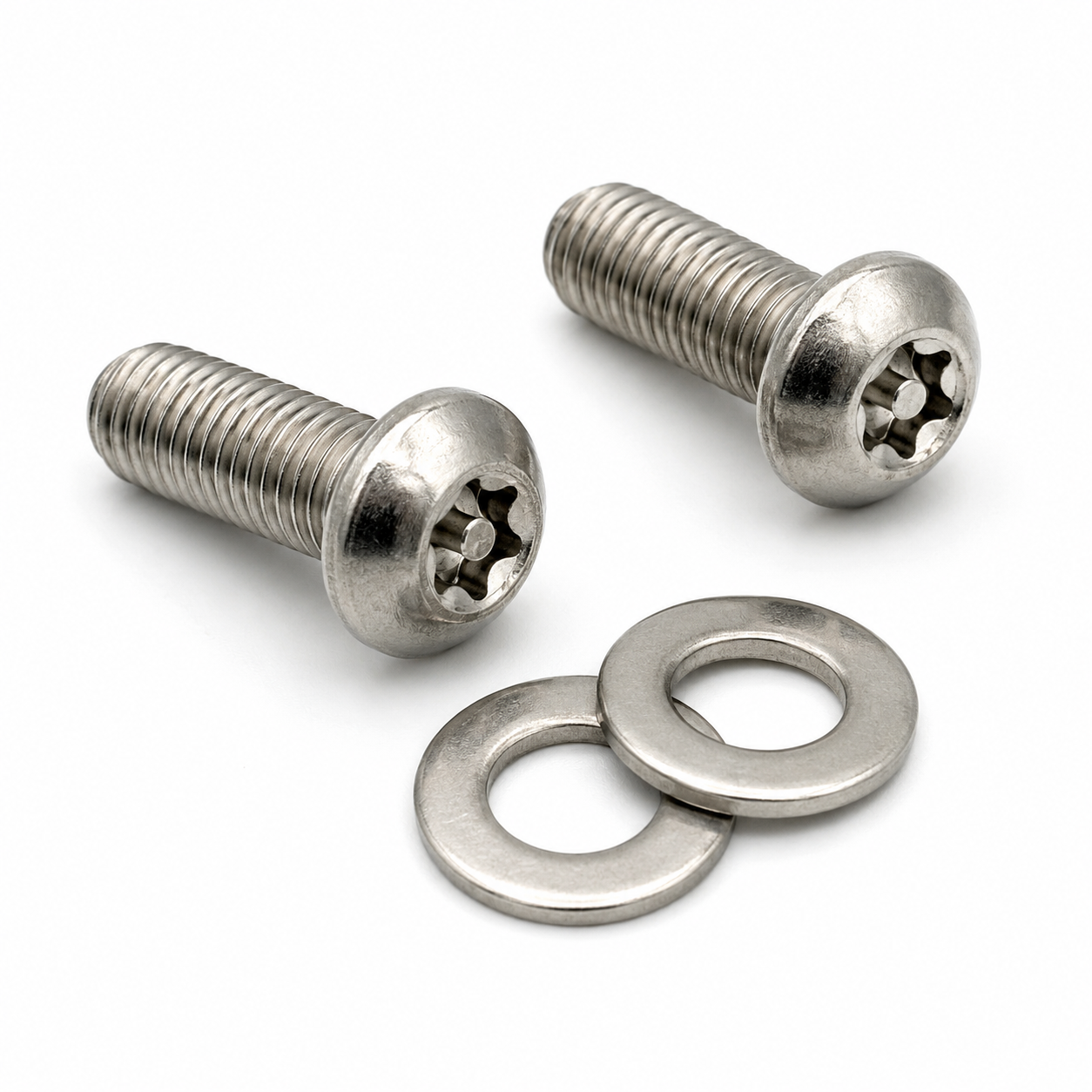

SS Security Hardware

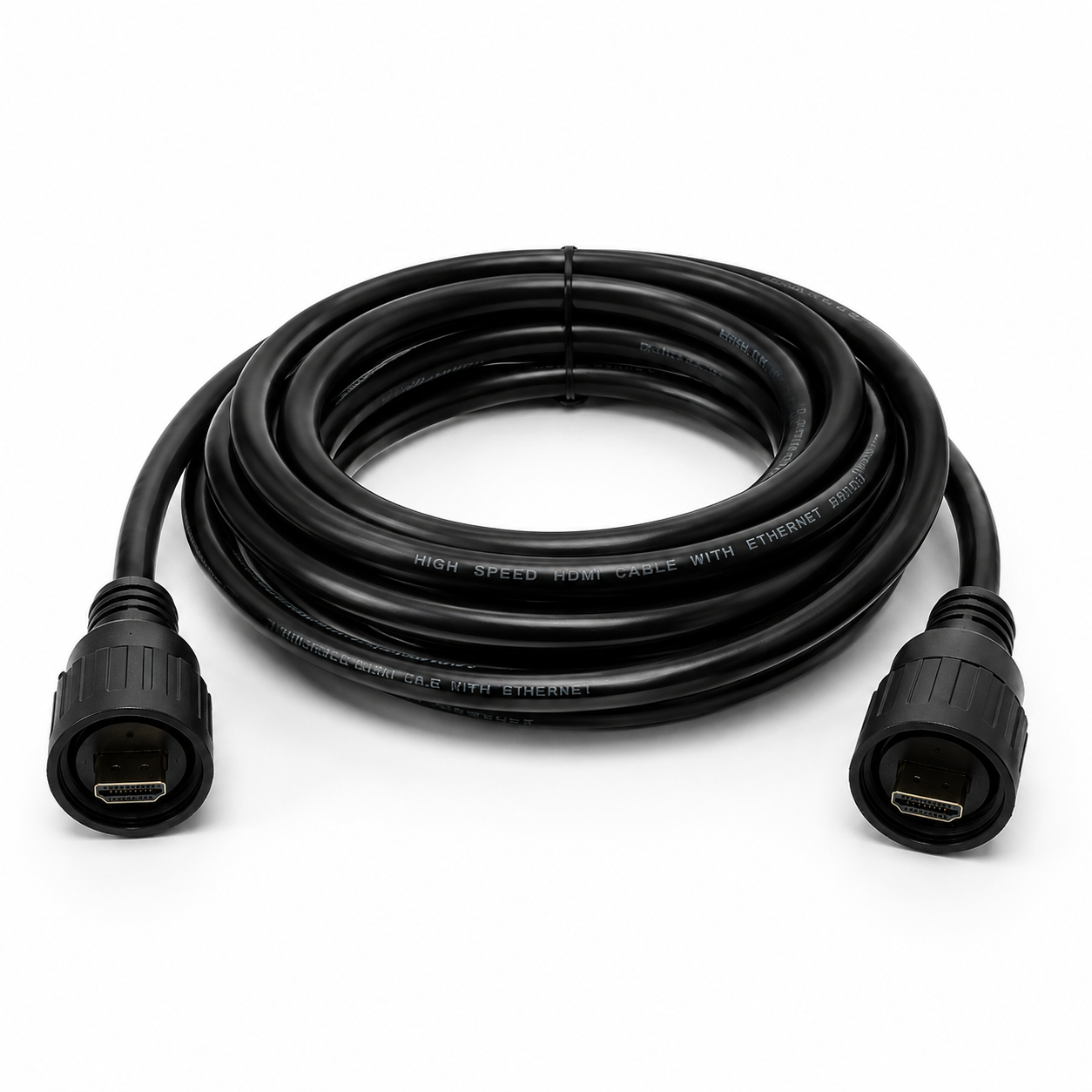

HDMI Cable (26ft)

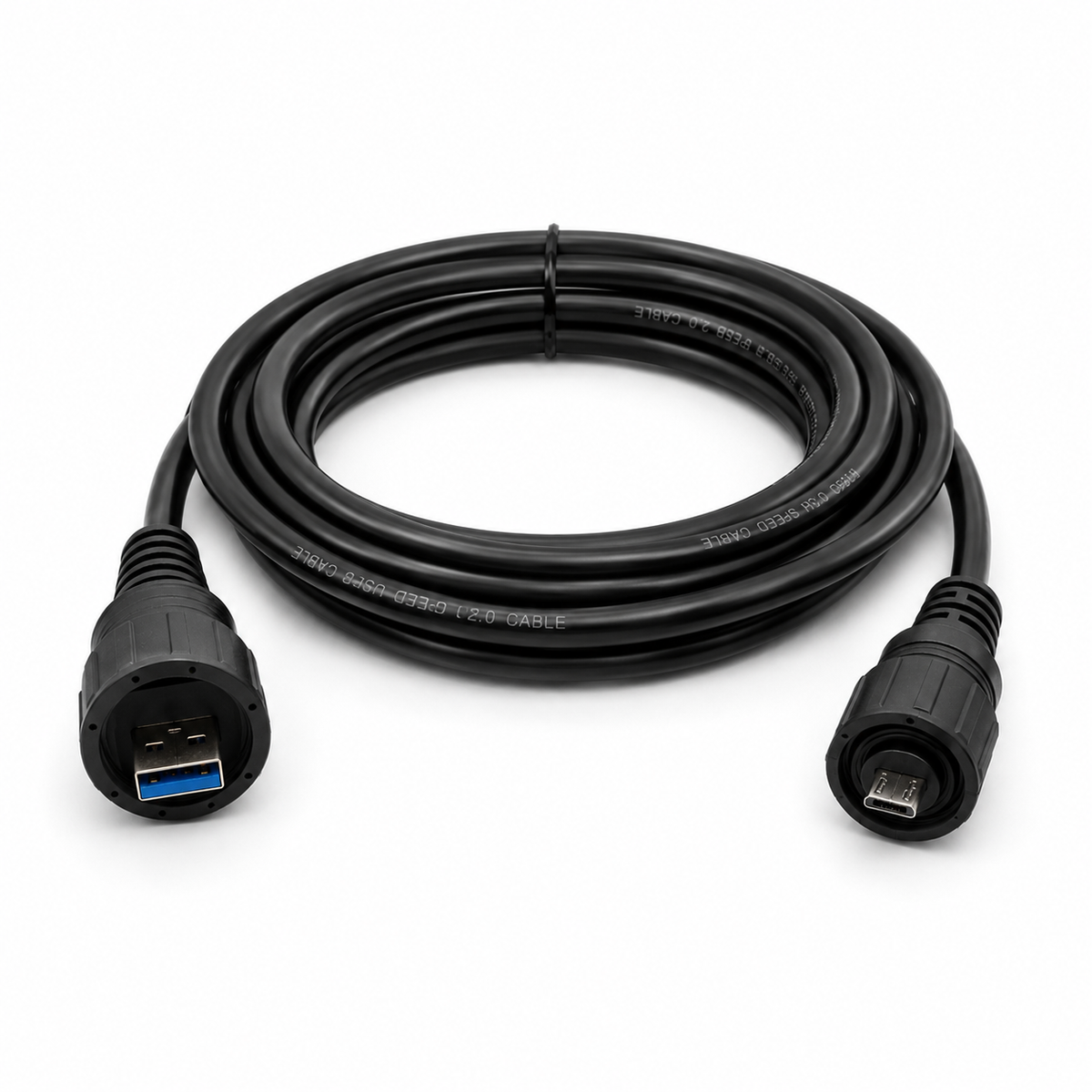

USB Cable (26ft)

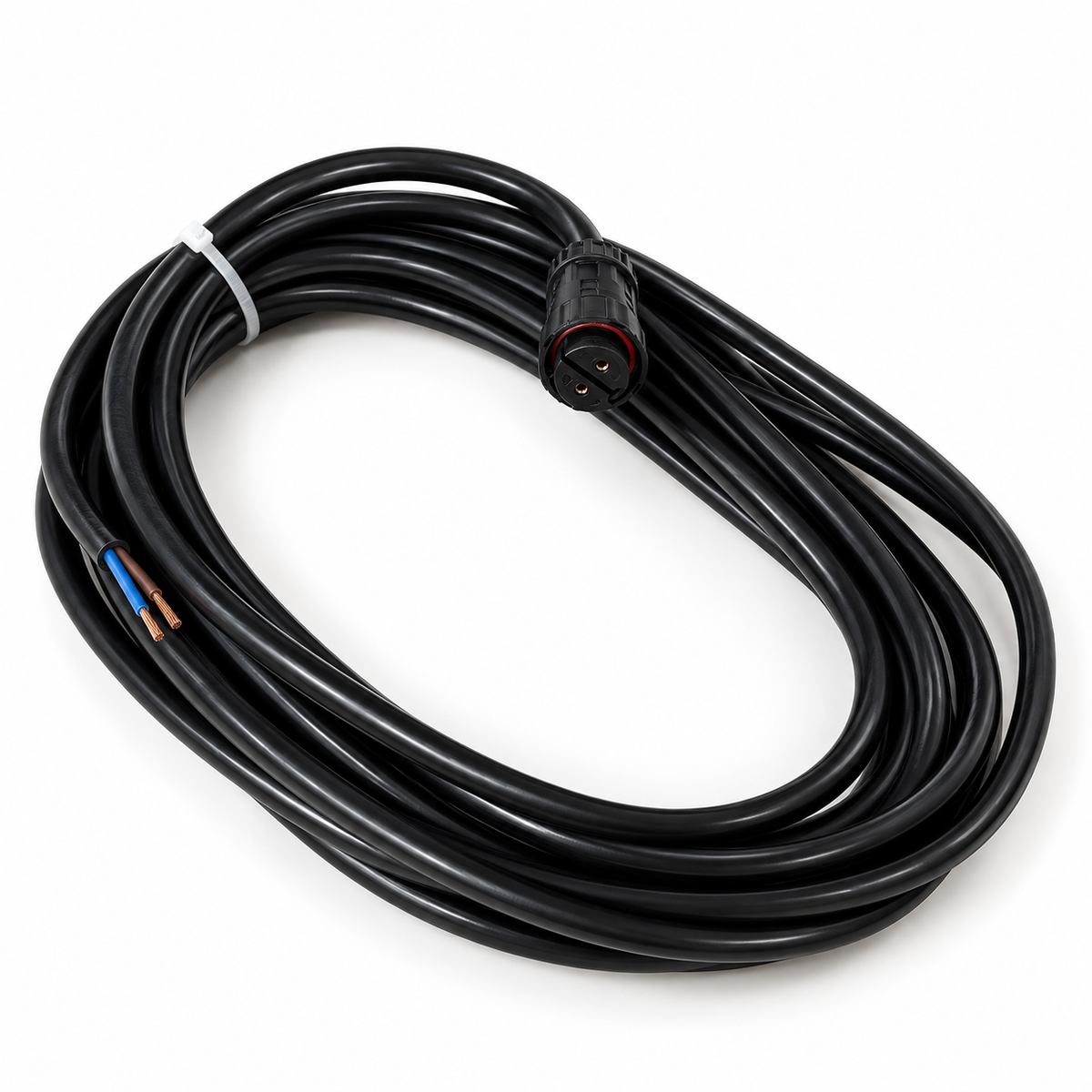

Power Cable (26ft)
Knob Set

Compatibility

👉 Review the Compatibility Page for full compatibility details and use our compatibility checker!


Garmin

Compatible Garmin GPSMAP models with HDMI output can mirror the Garmin display to the Define 17. On supported touchscreen GPSMAP models, the included USB connection enables touchscreen control directly from the Define 17.

Compatible Garmin Models Include:

  • GPSMAP 8410 / 8410xsv
  • GPSMAP 8610 / 8610xsv
  • GPSMAP 8412 / 8412xsv
  • GPSMAP 8612 / 8612xsv
  • GPSMAP 8416 / 8416xsv
  • GPSMAP 8616 / 8616xsv
  • GPSMAP 9010 / 9010xsv
  • GPSMAP 9210 / 9210xsv
  • GPSMAP 9013 / 9013xsv
  • GPSMAP 9213 / 9213xsv
  • GPSMAP 9017 / 9017xsv
  • GPSMAP 9217 / 9217xsv
  • GPSMAP 1223xsv / 1243xsv
  • GPSMAP 1623 / 1623xsv
  • GPSMAP 1643 / 1643xsv
  • GPSMAP 8700 Black Box
  • ECHOMAP Ultra 2 162sv / 166sv — Video Only; Touch Control Not Supported

Lowrance

Compatible Lowrance displays require an RMP Flex Connect to convert the Lowrance Ethernet video output to HDMI. Touchscreen control is supported when the connected Lowrance model has a USB port.


What is NOT compatible? (No HDMI and USB port)

  • Garmin ECHOMAP UHD 62cv
  • Garmin ECHOMAP UHD 63cv
  • Garmin ECHOMAP UHD 64cv
  • Garmin ECHOMAP UHD 65cv
  • Garmin ECHOMAP UHD 72cv
  • Garmin ECHOMAP UHD 72sv
  • Garmin ECHOMAP UHD 73cv
  • Garmin ECHOMAP UHD 73sv
  • Garmin ECHOMAP UHD 74cv
  • Garmin ECHOMAP UHD 74sv
  • Garmin ECHOMAP UHD 75cv
  • Garmin ECHOMAP UHD 75sv
  • Garmin ECHOMAP UHD 92sv
  • Garmin ECHOMAP UHD 93sv
  • Garmin ECHOMAP UHD 94sv
  • Garmin ECHOMAP UHD 95sv
  • Garmin ECHOMAP UHD2 52cv
  • Garmin ECHOMAP UHD2 53cv
  • Garmin ECHOMAP UHD2 54cv
  • Garmin ECHOMAP UHD2 55cv
  • Garmin ECHOMAP UHD2 72cv
  • Garmin ECHOMAP UHD2 73cv
  • Garmin ECHOMAP UHD2 74cv
  • Garmin ECHOMAP UHD2 75cv
  • Garmin ECHOMAP UHD2 72sv
  • Garmin ECHOMAP UHD2 73sv
  • Garmin ECHOMAP UHD2 74sv
  • Garmin ECHOMAP UHD2 75sv
  • Garmin ECHOMAP UHD2 92sv
  • Garmin ECHOMAP UHD2 93sv
  • Garmin ECHOMAP UHD2 94sv
  • Garmin ECHOMAP UHD2 95sv
  • Garmin ECHOMAP Ultra 102sv
  • Garmin ECHOMAP Ultra 106sv
  • Garmin ECHOMAP Ultra 122sv
  • Garmin ECHOMAP Ultra 126sv
  • Garmin ECHOMAP Ultra 2 102sv
  • Garmin ECHOMAP Ultra 2 106sv
  • Garmin ECHOMAP Ultra 2 122sv
  • Garmin ECHOMAP Ultra 2 126sv

Flat Rate Shipping

Insured Delivery w/Signature

Local Pick-Up Available

Lower 48 Shipping
Get Fish Marine displays ship for a flat rate of $25 per display within the contiguous United States. Orders are insured and shipped with signature required to help ensure your display arrives safely.



Canada Shipping
We also ship Get Fish Marine displays to Canada. Available shipping options and rates are calculated during checkout.



Local Pickup – Gainesville, Texas
Prefer to pick up your display? Free local pickup can be selected during checkout at Lake Pro Tackle:

    Lake Pro Tackle
    5900 W US Highway 82
    Gainesville, TX 76240

You’ll receive confirmation when your order is ready for pickup. Please wait for that confirmation before visiting the store.

Product information

Define 17 Specifications

Generation

Mark II

Diagonal Display Size

17.3 in

Display Resolution & Aspect Ratio

3840 x 2160 - UHD (4K) - 16:9

Technical Specs

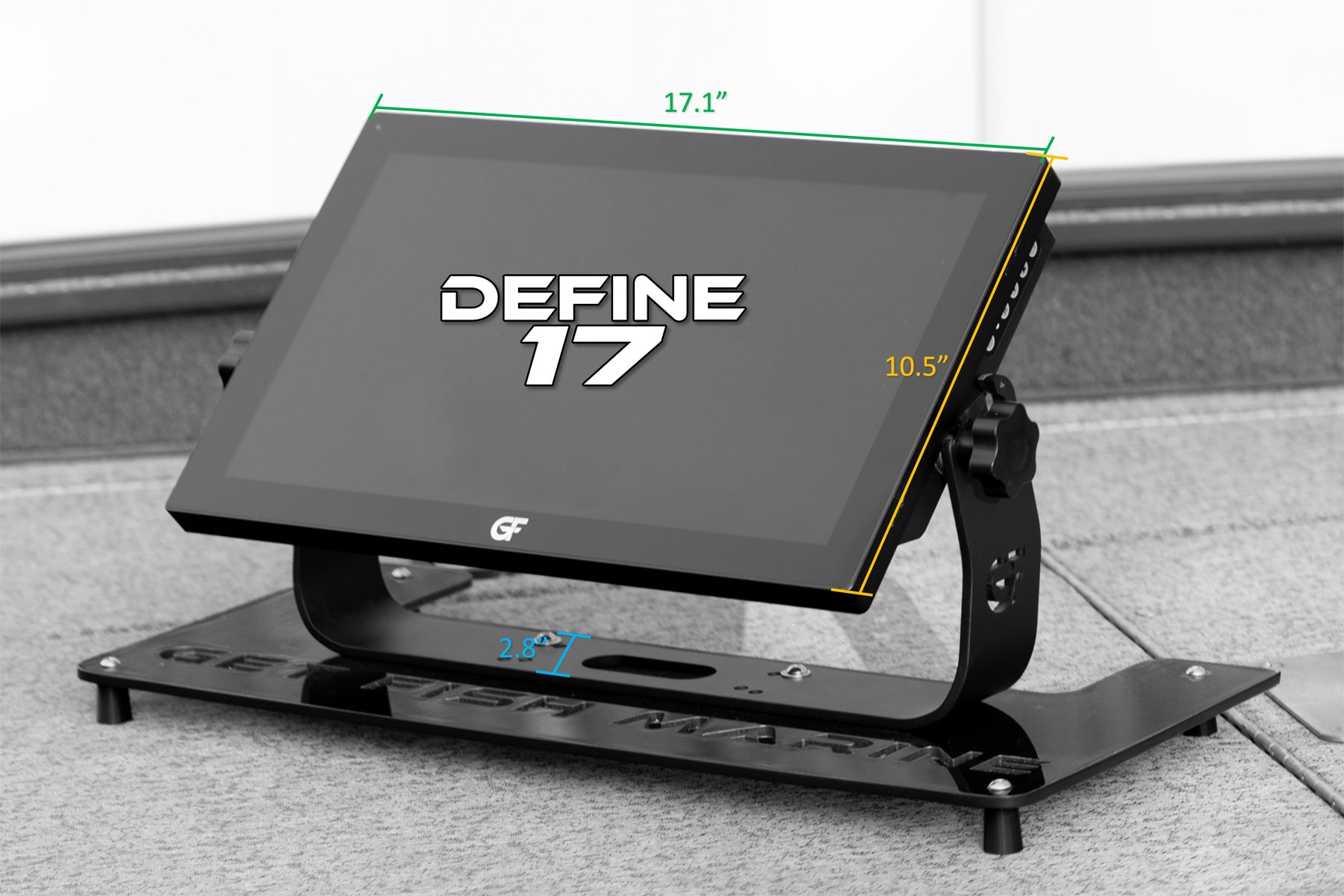

Width • Depth • Height

17.1 in • 4.2 in • 11.9 in

Weight w/o Sun Cover

12.7 lb

Contrast Ratio

12,000:1

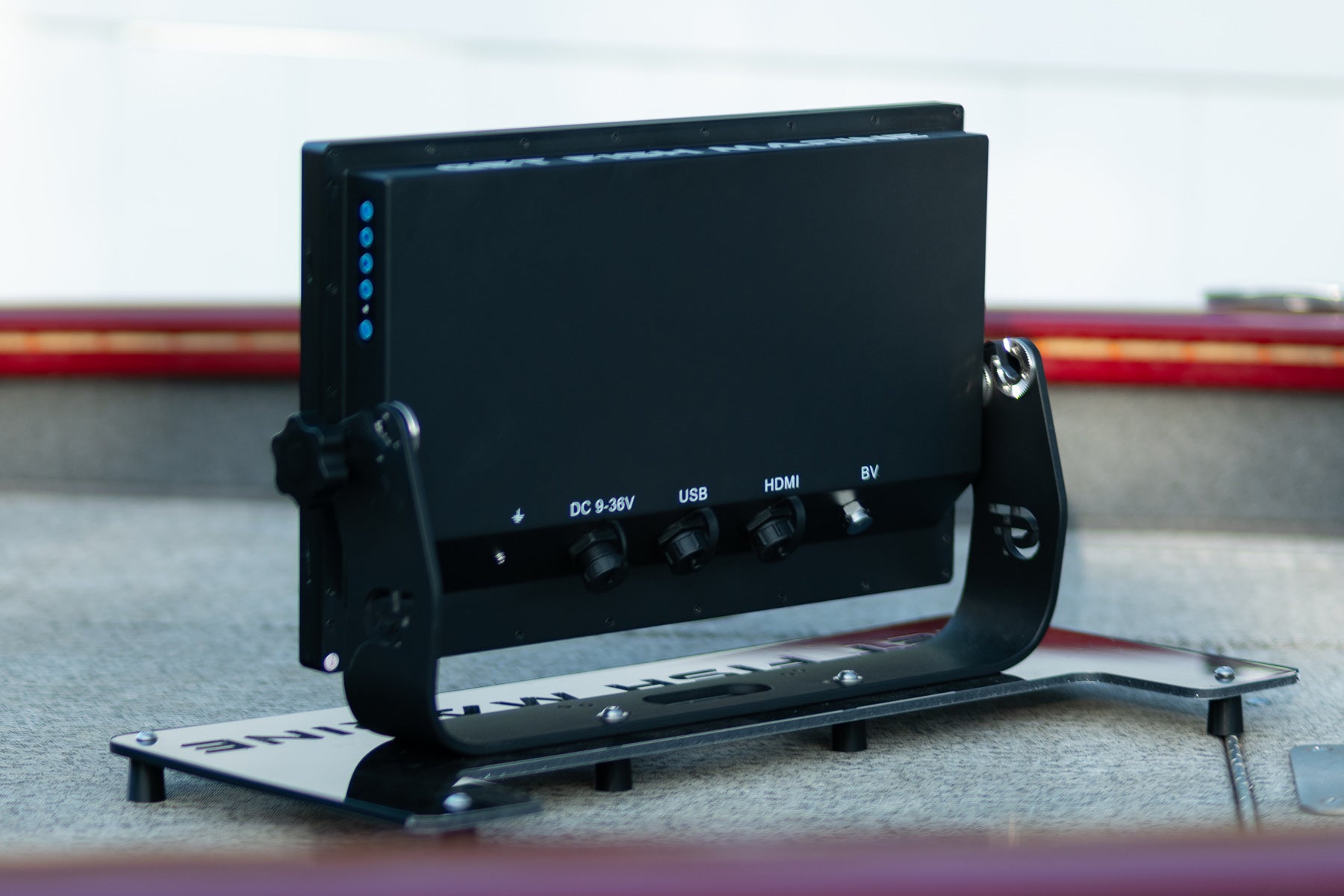

Input Voltage Range (DC)

9 V to 36 V

12vdc Current Draw (Max Brightness)

3.9 A

Temperature Rating

-4°F min to 158°F max

HDMI Cable Length

26.3 ft / 8 m

USB Cable Length

26.3 ft / 8 m

Power Cable Length

26.3 ft / 8 m
