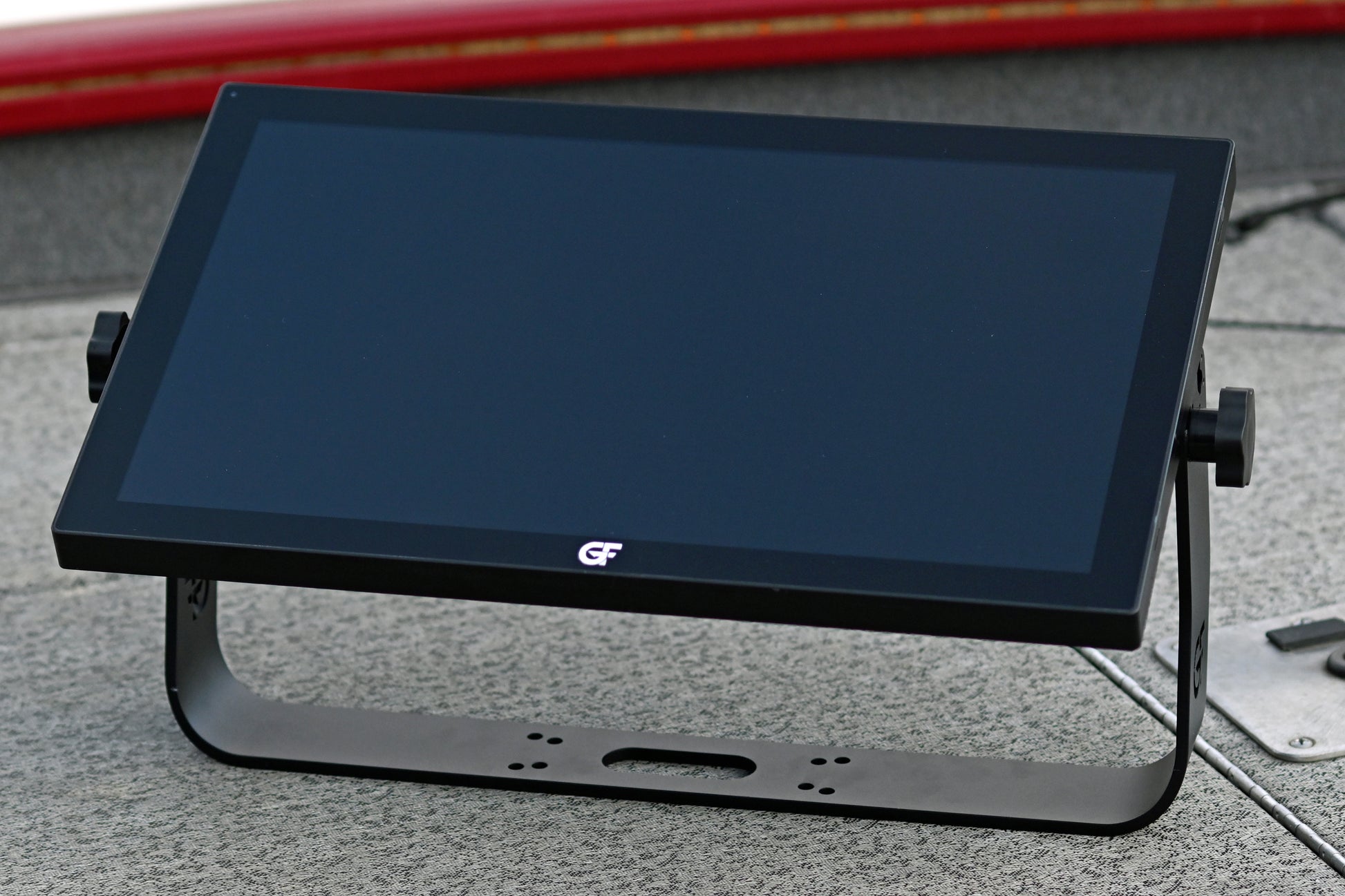

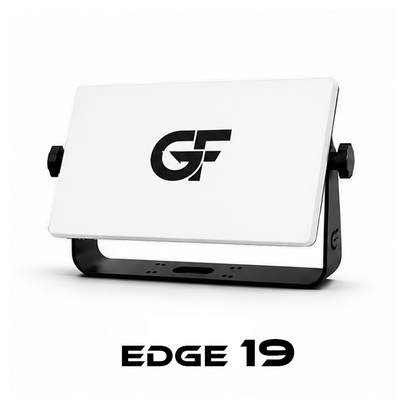

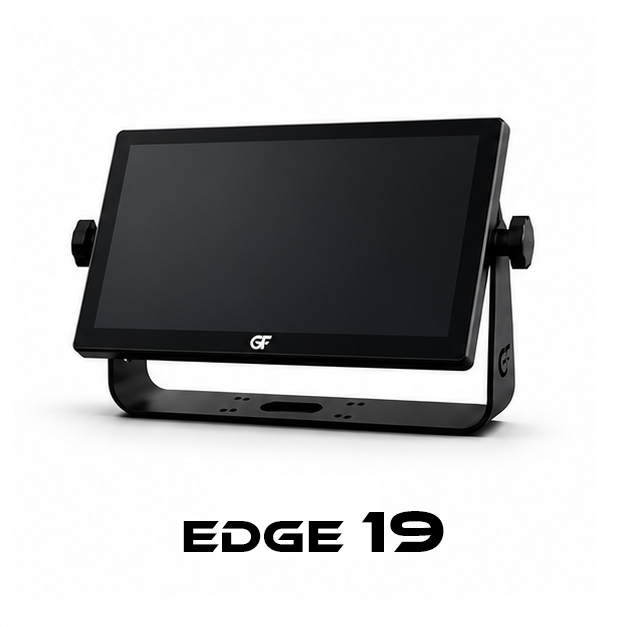

Edge 19 (Mark II) - 18.5" Waterproof Touch Display

Balanced Power. Bigger Perspective. Lighter Than Ever.

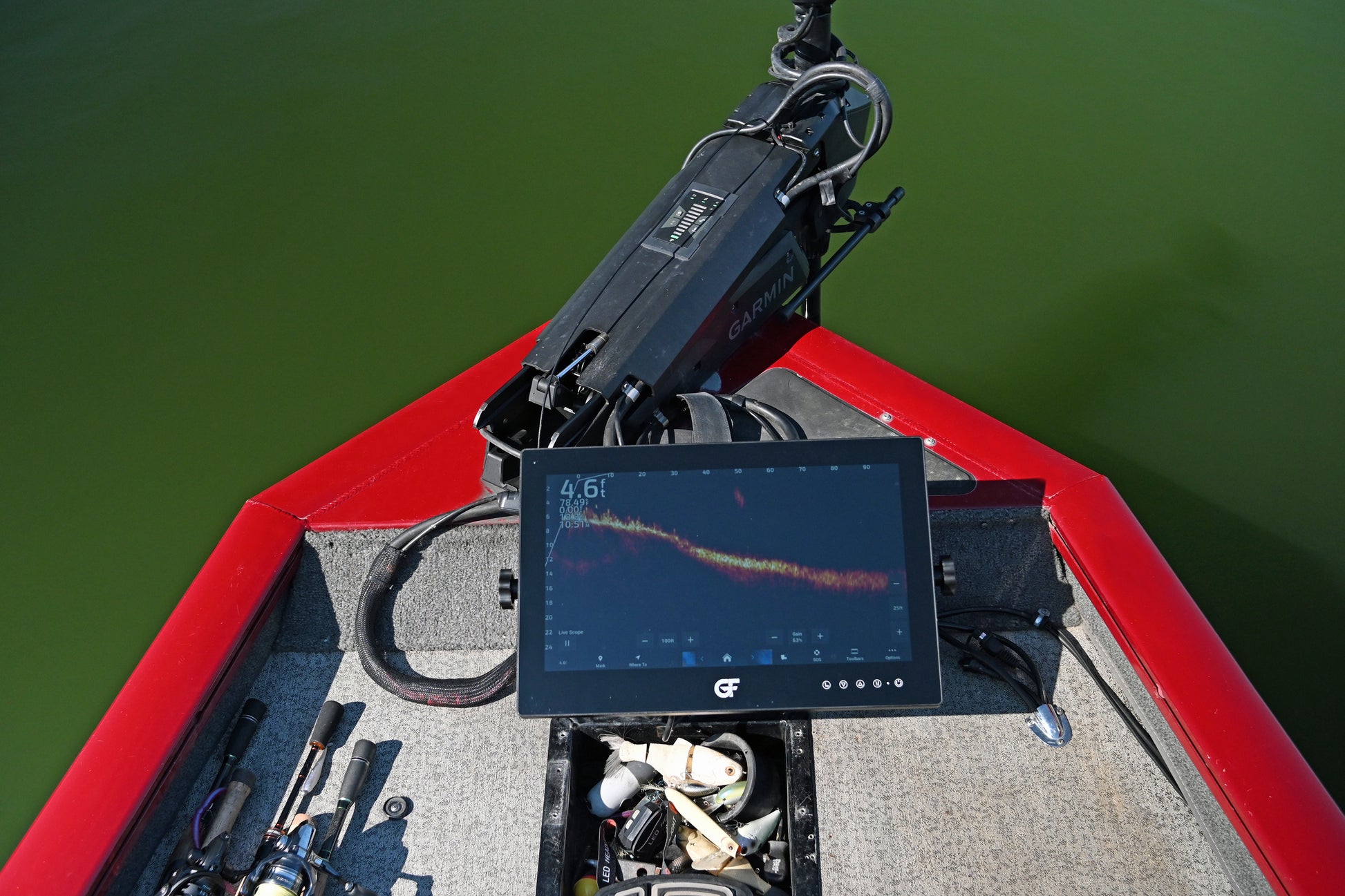

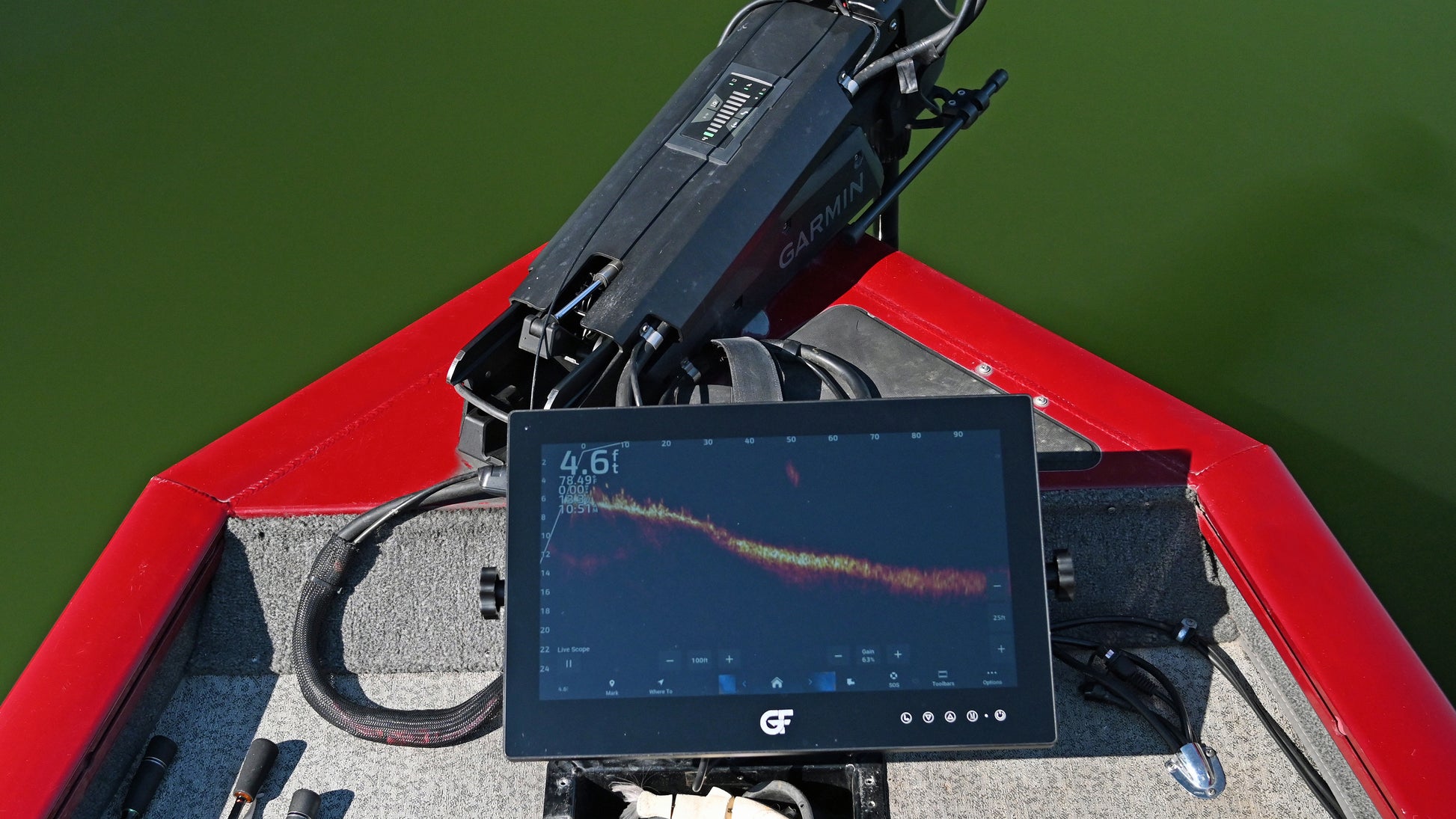

The Edge 19 delivers the ideal mix of size and flexibility — with 18.5 inches of Full HD clarity, you gain more screen space for charts, sonar, radar, and cameras without overwhelming your helm. With 1500 nits of sunlight-readable brightness, a 1000:1 contrast ratio, and full IP67 waterproofing, this display ensures your data stays sharp and readable in blazing sun, pounding waves, or driving rain.

📦 Flat Rate $25 Shipping - Please note: A signature will be required upon delivery of all GF Screen orders to ensure safe arrival.

🎣 Why You’ll Love It

• Expanded Viewing Area: 18.5" of crystal-clear display space

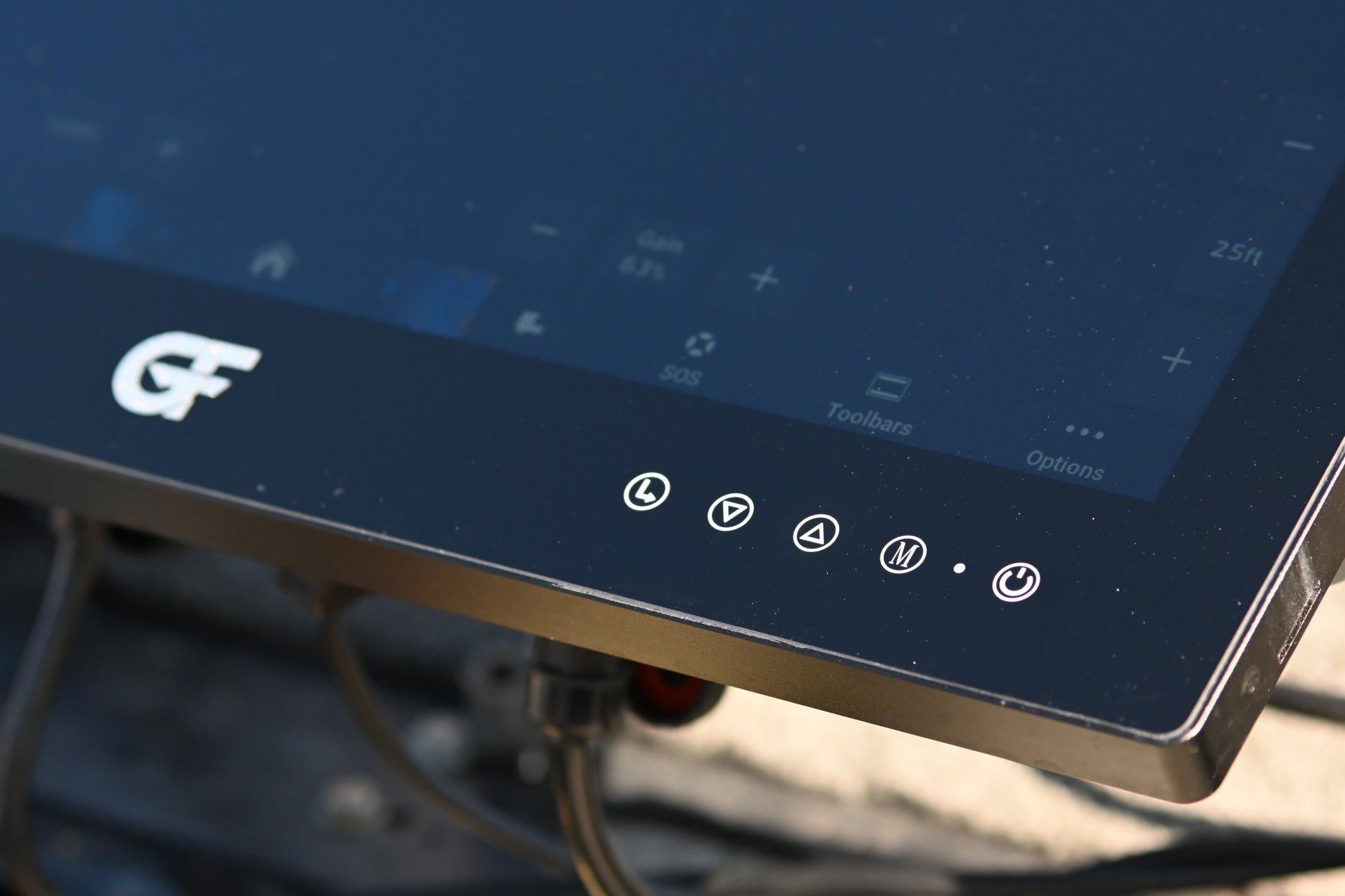

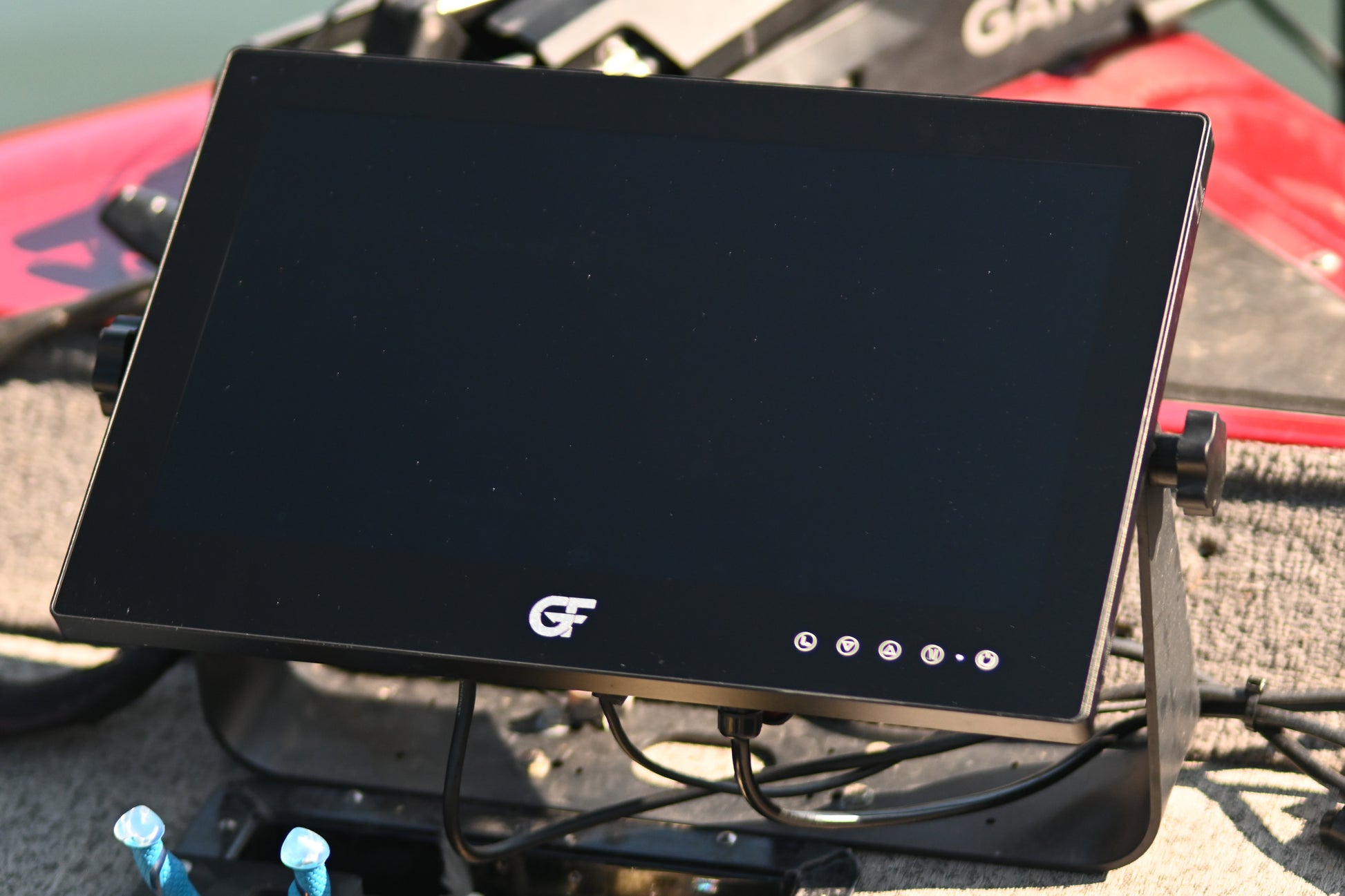

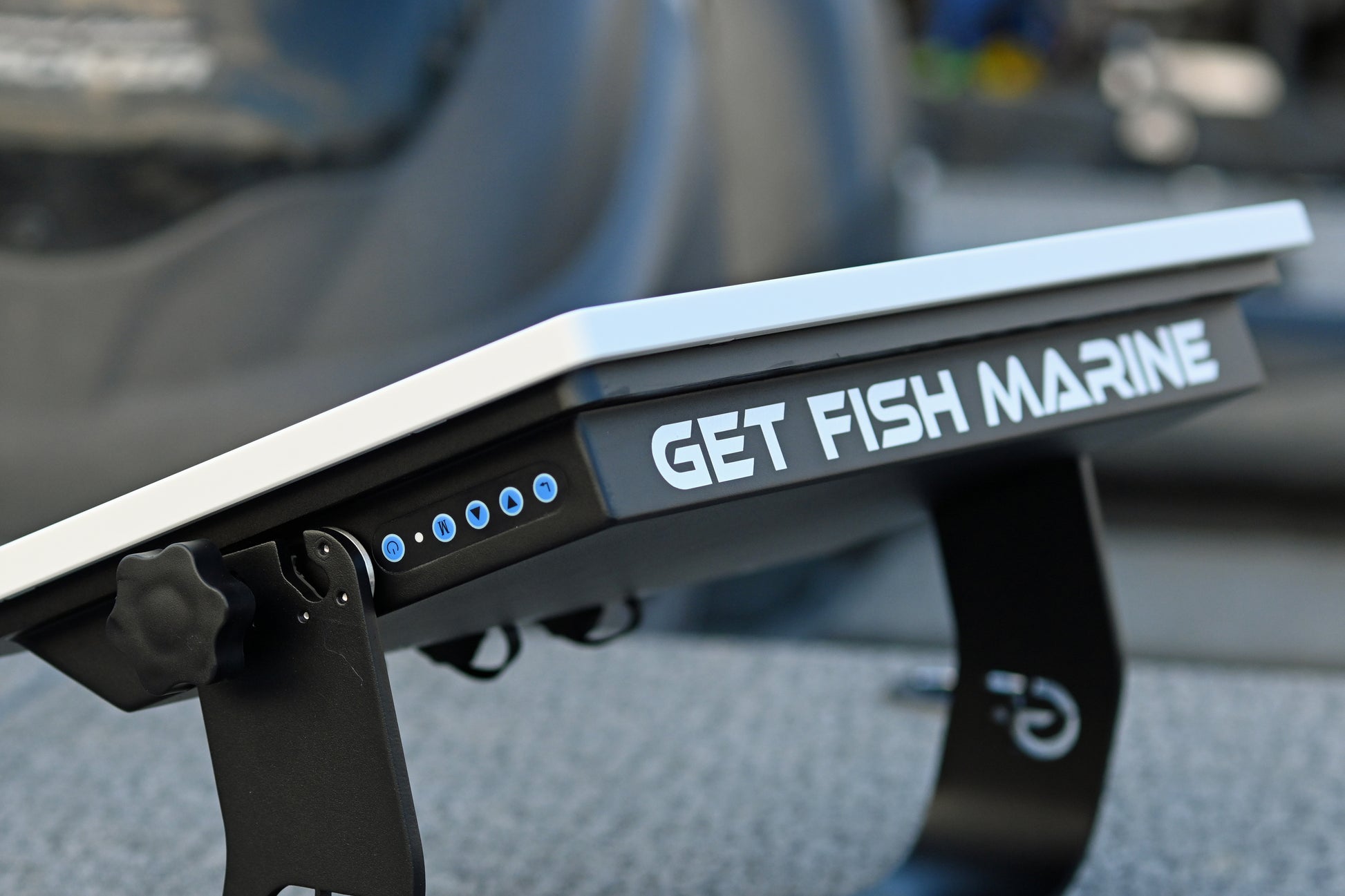

• Slimmer Package: Relocated buttons for a tighter layout on your rig.
• Weight Conscious: 30% Lighter than Edge 19 Mark I

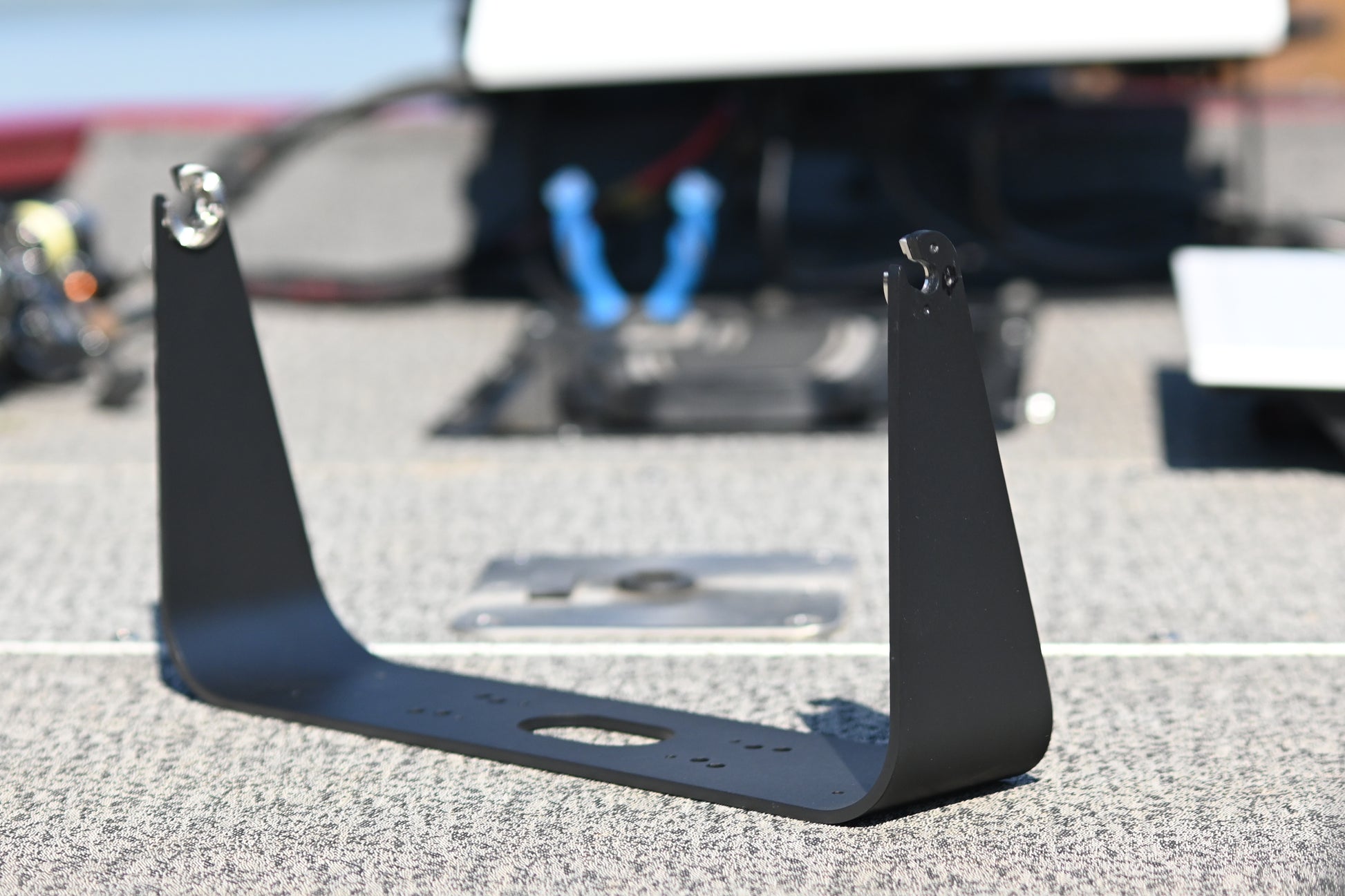

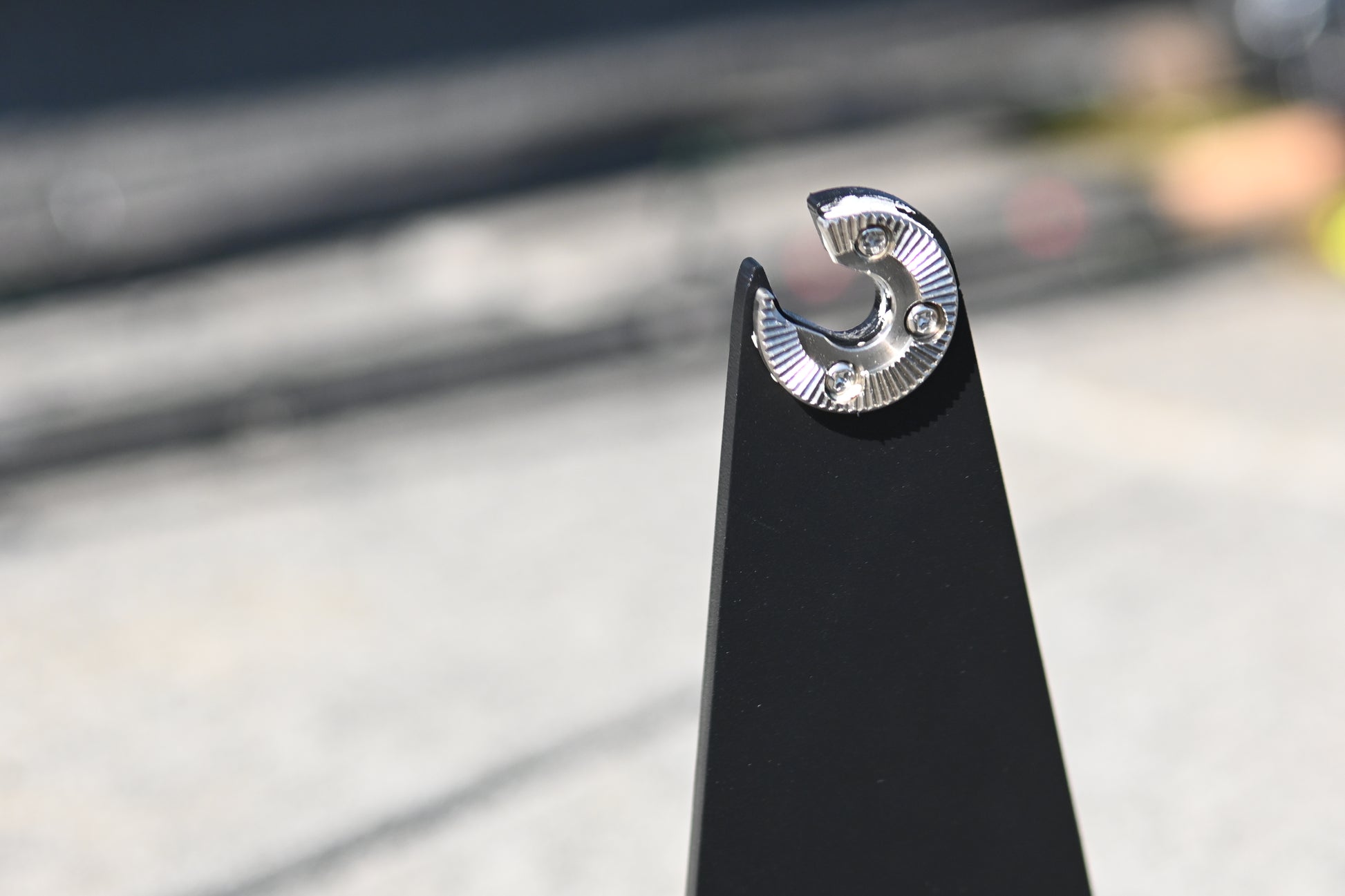

• New Aluminum Cradle: Lighter and now with a second pivot point.
• Sunlight-Readable: 1500 nits with auto-dimming sensor
• Balanced Contrast: 1000:1 ratio for accurate detail in all lighting
• True Waterproofing: IP67-rated, dustproof, and wash-down safe
• Always Clear: Optical bonding + anti-glare to cut fog and reflections
• Friendly Touch: 10-point capacitive works even with water droplets

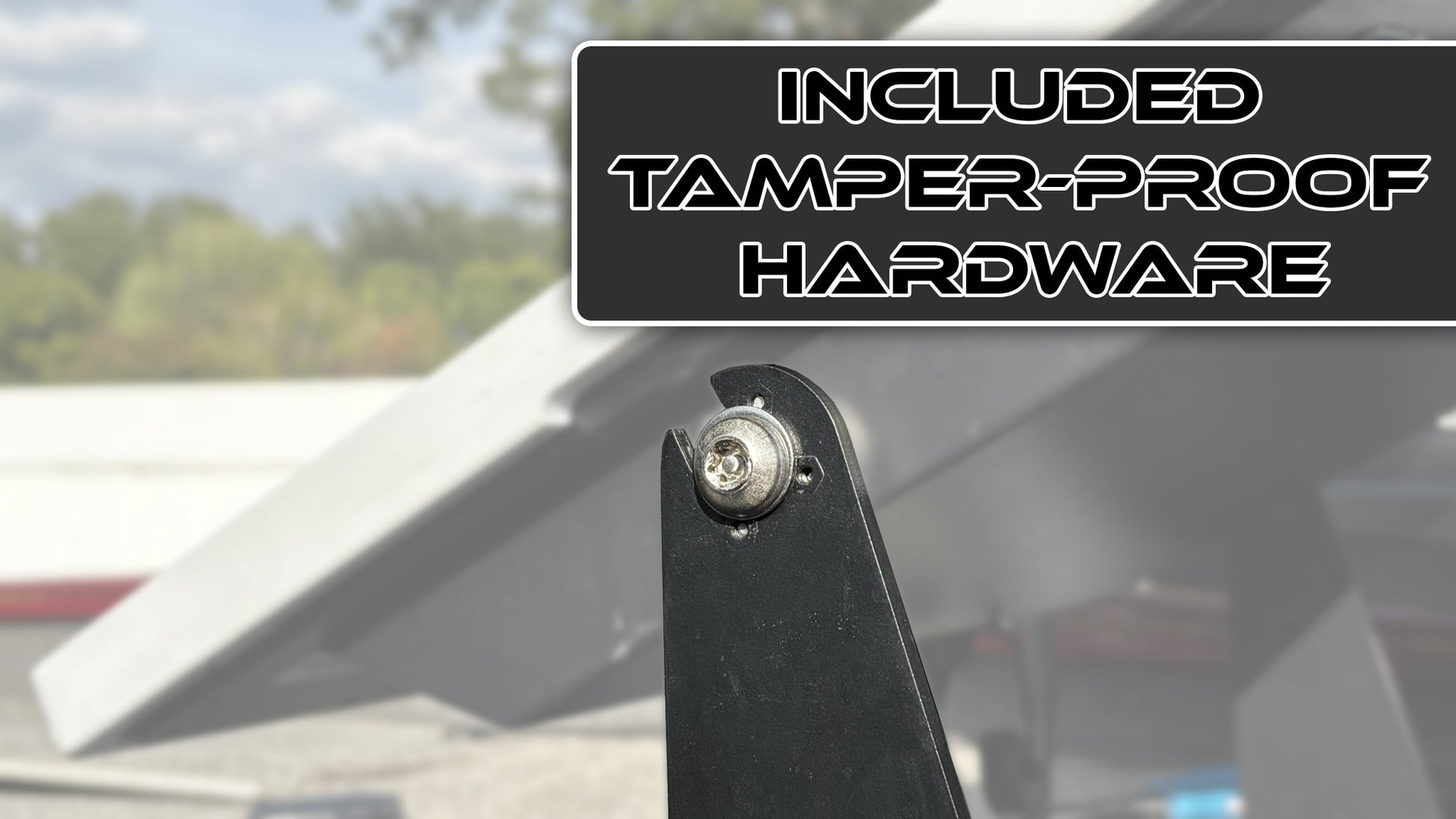

• Added Security: We include Tamper-proof Display-to-Cradle Hardware

📦 Package Includes:

• 18.5" Full IP67 Waterproof Touch Display

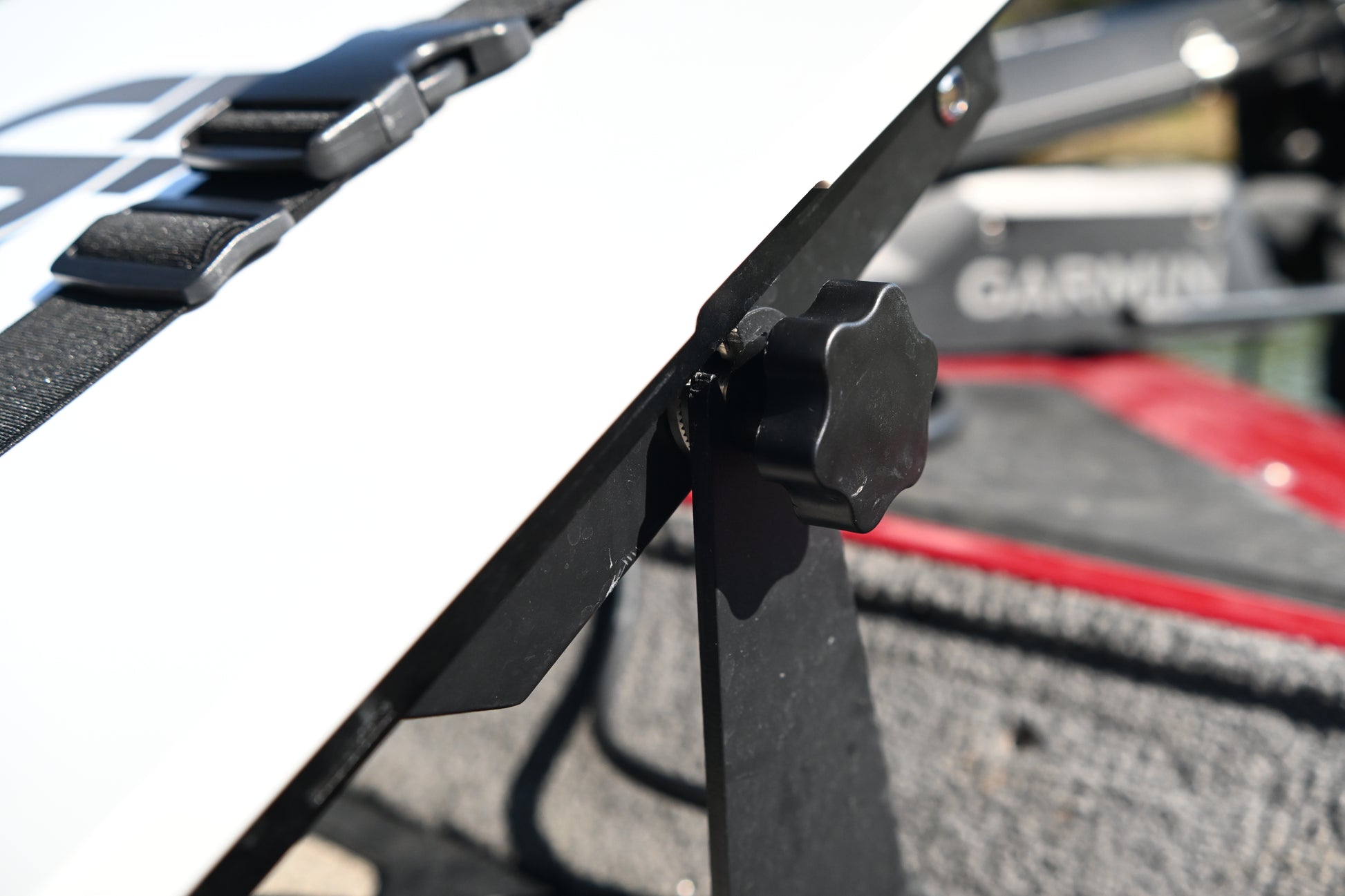

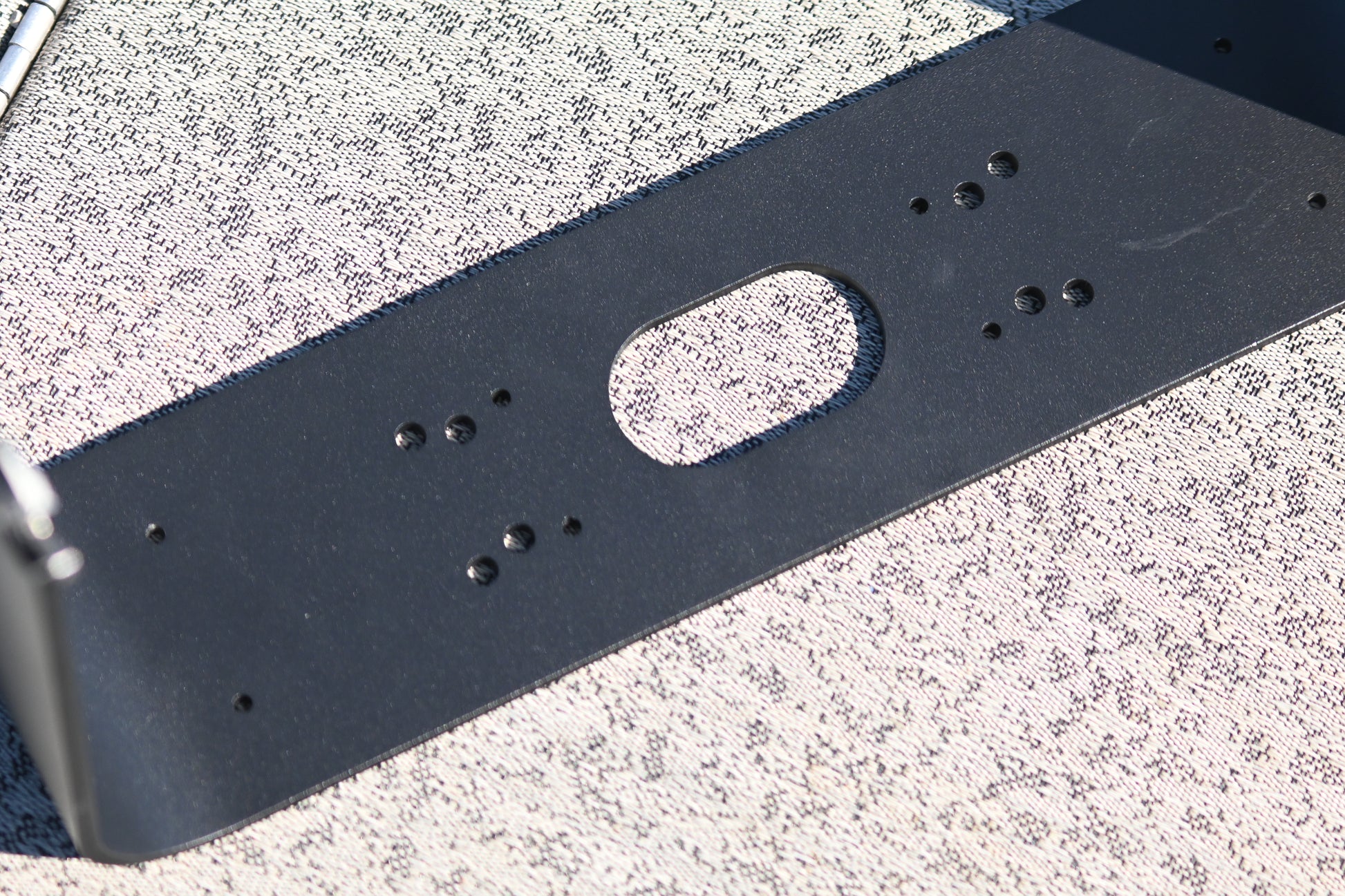

• Heavy-Duty U-shaped mounting bracket w/Knobs

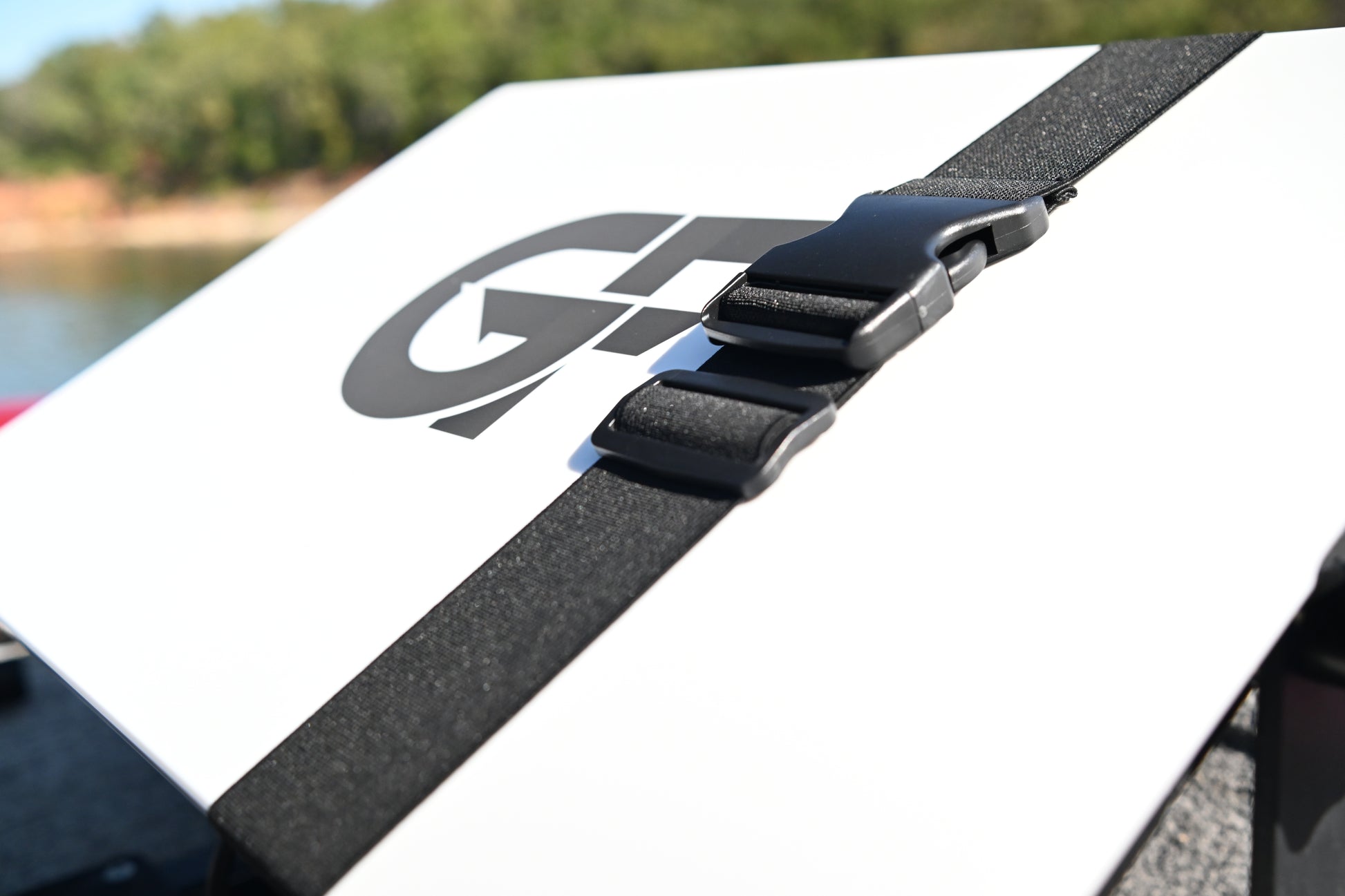

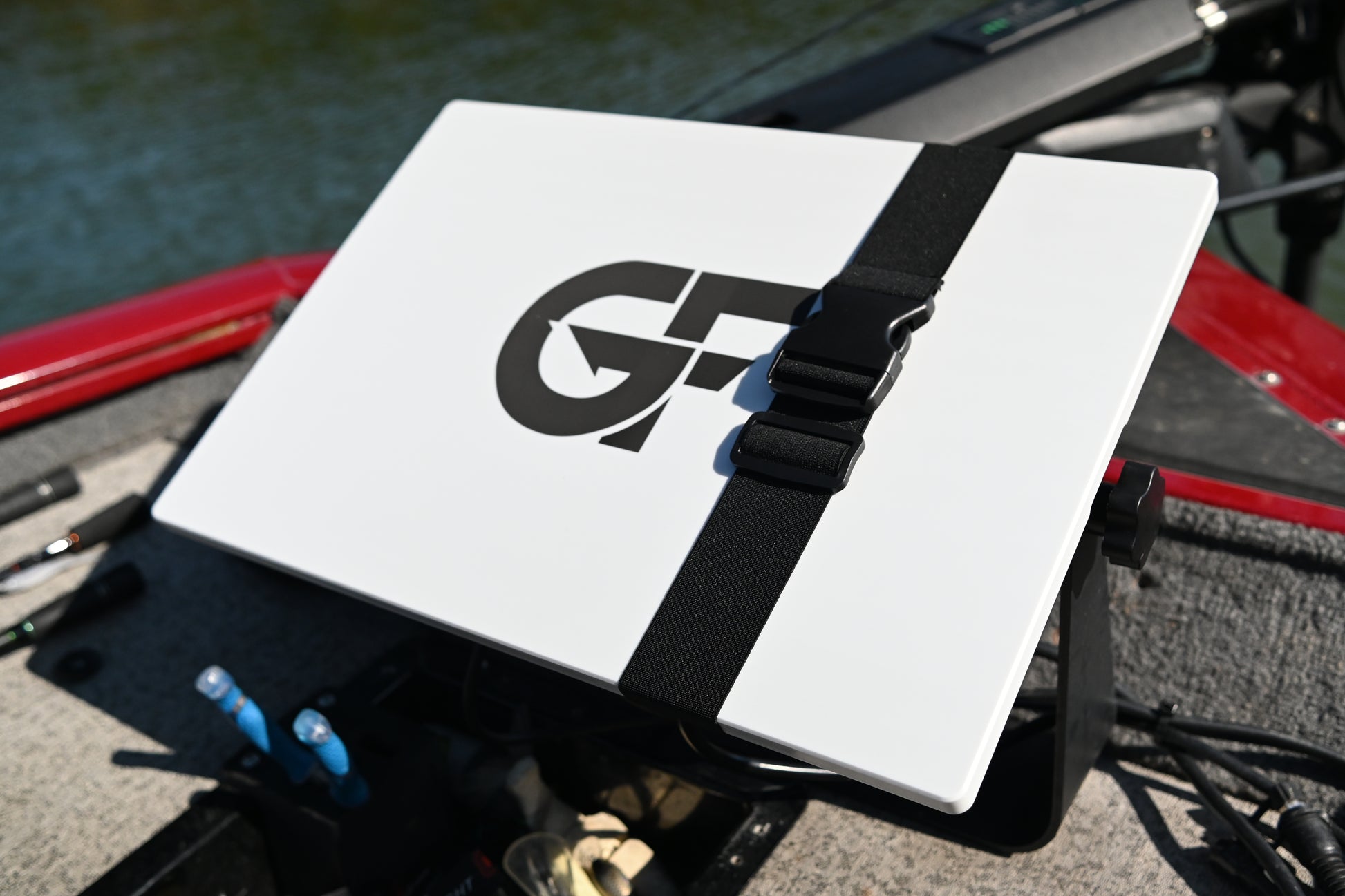

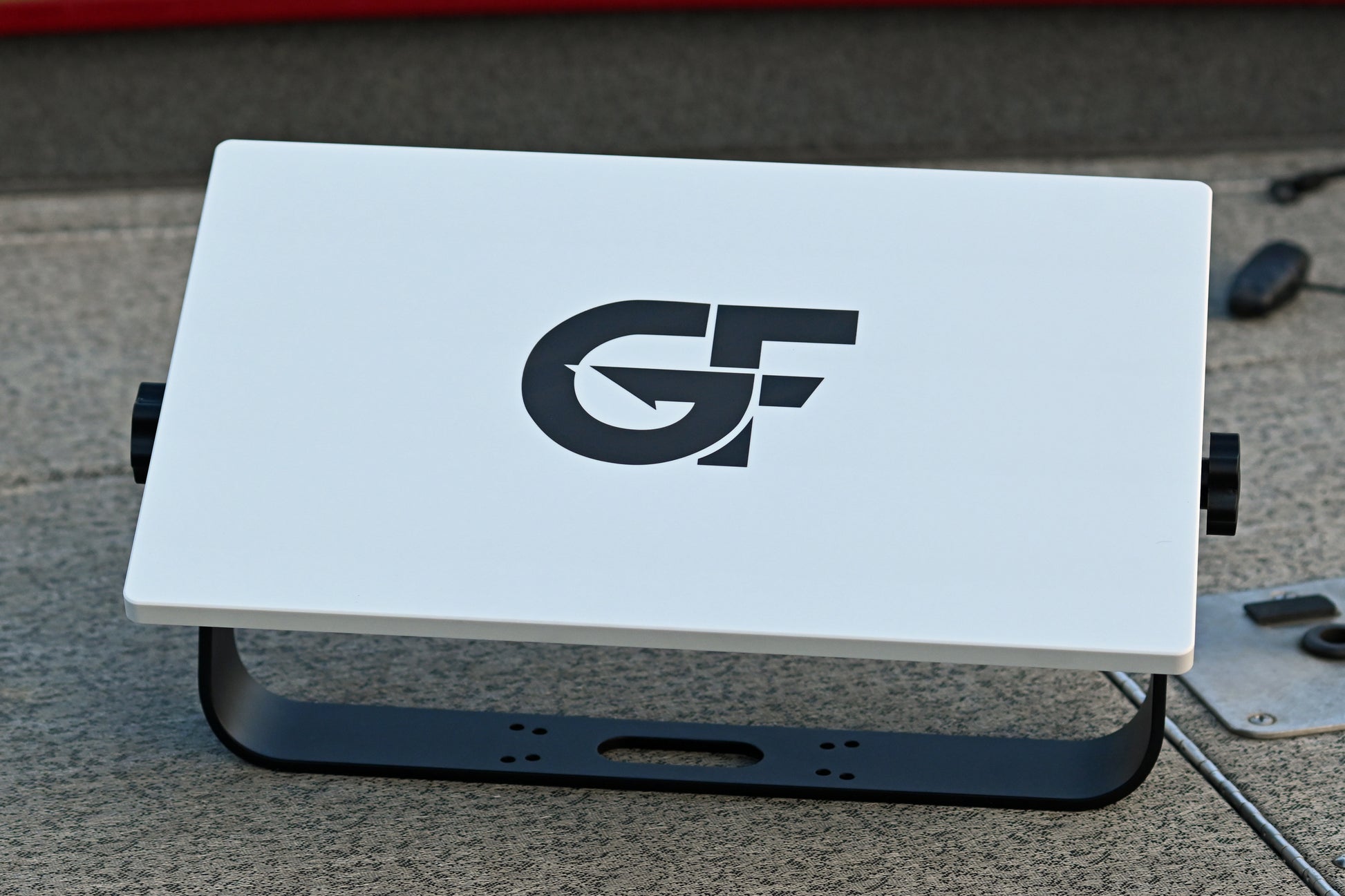

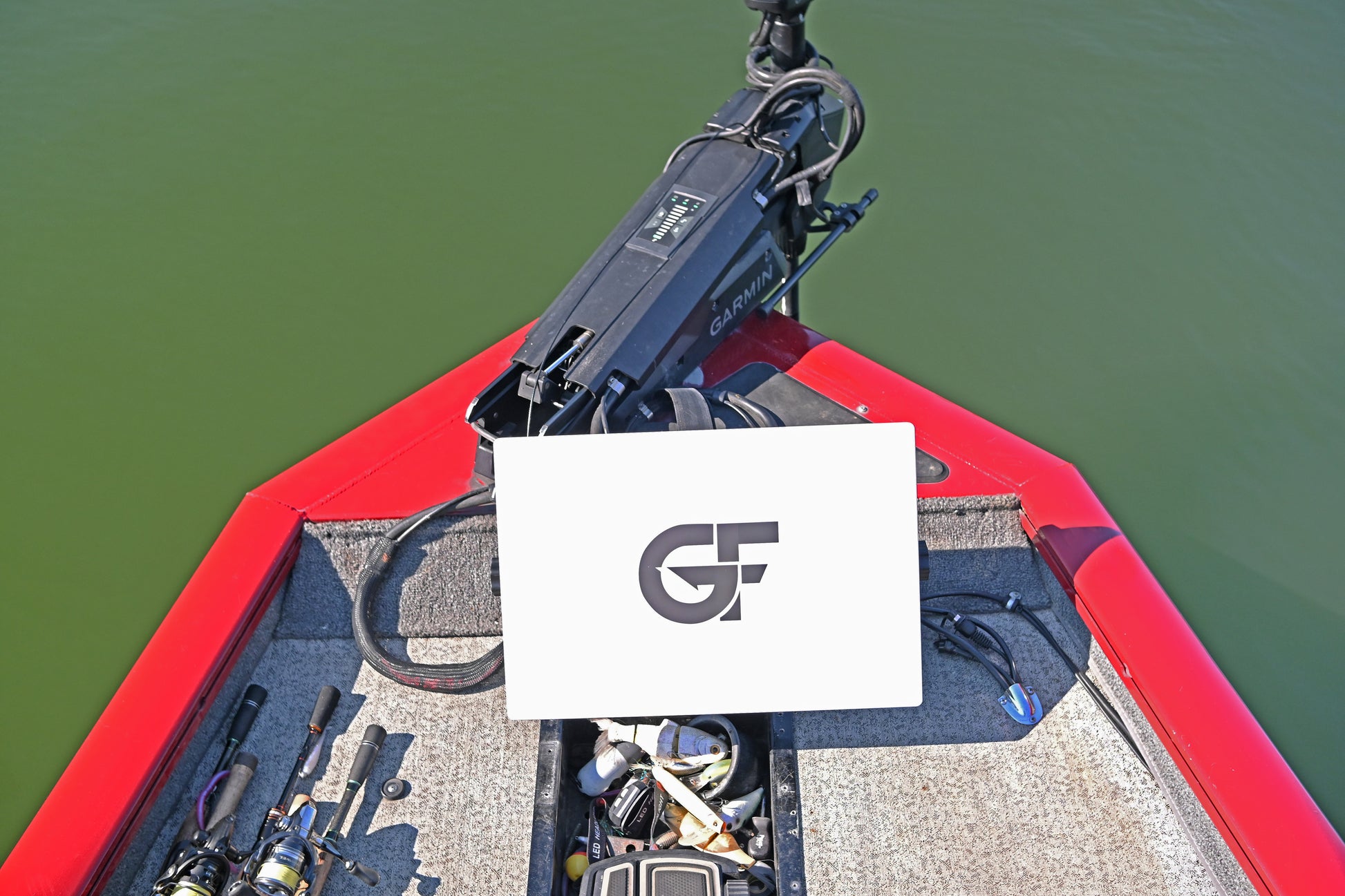

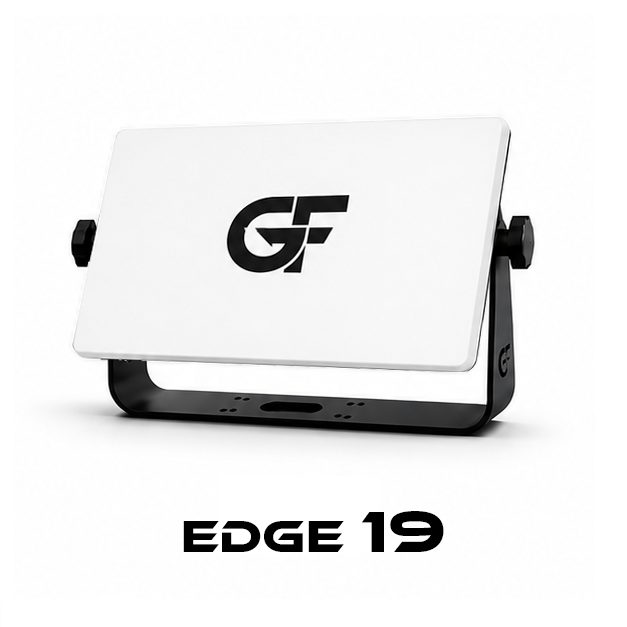

• "GF" protective sun cover with buckle strap (for towing & storage)
• (2) Stainless Tamper-Proof Torx Display-to-Cradle Bolts
• Waterproof HDMI cable – 26 ft (8 m) - Updated Length
• (1) Waterproof USB touch cable [Micro USB] – 26 ft (8 m) - Updated Length
• USB-C Adapter (where applicable)
• (1) DC power cable – 26 ft (8 m) - Updated Length

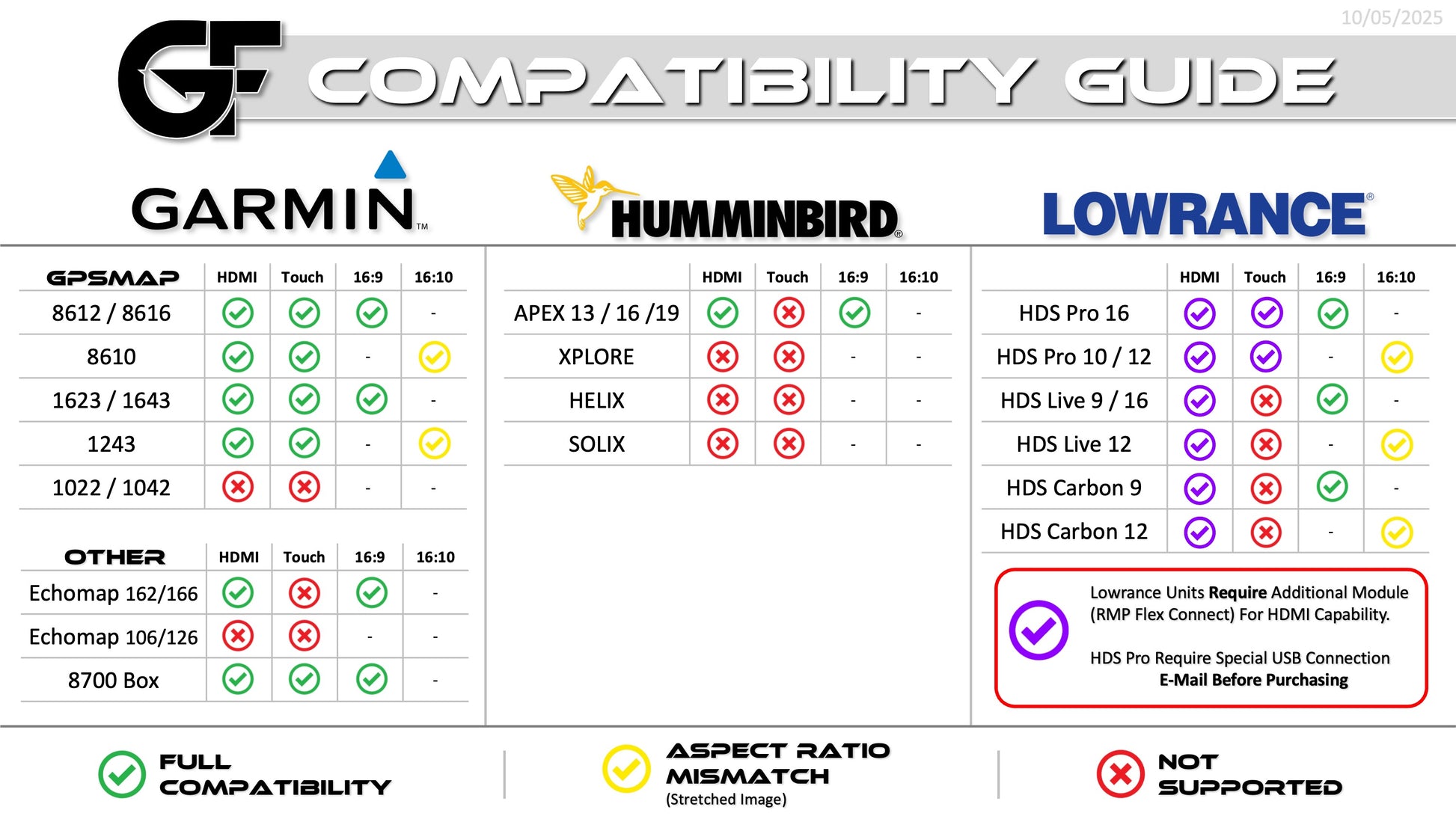

✅ Compatibility:

• See Get Fish Marine Compatibility Page
• Compatible with Most Garmin GPSMAP Units
• Lowrance Compatibility is In-Process with RMP Connect Module. Not available at this time.

🖥️ Display:

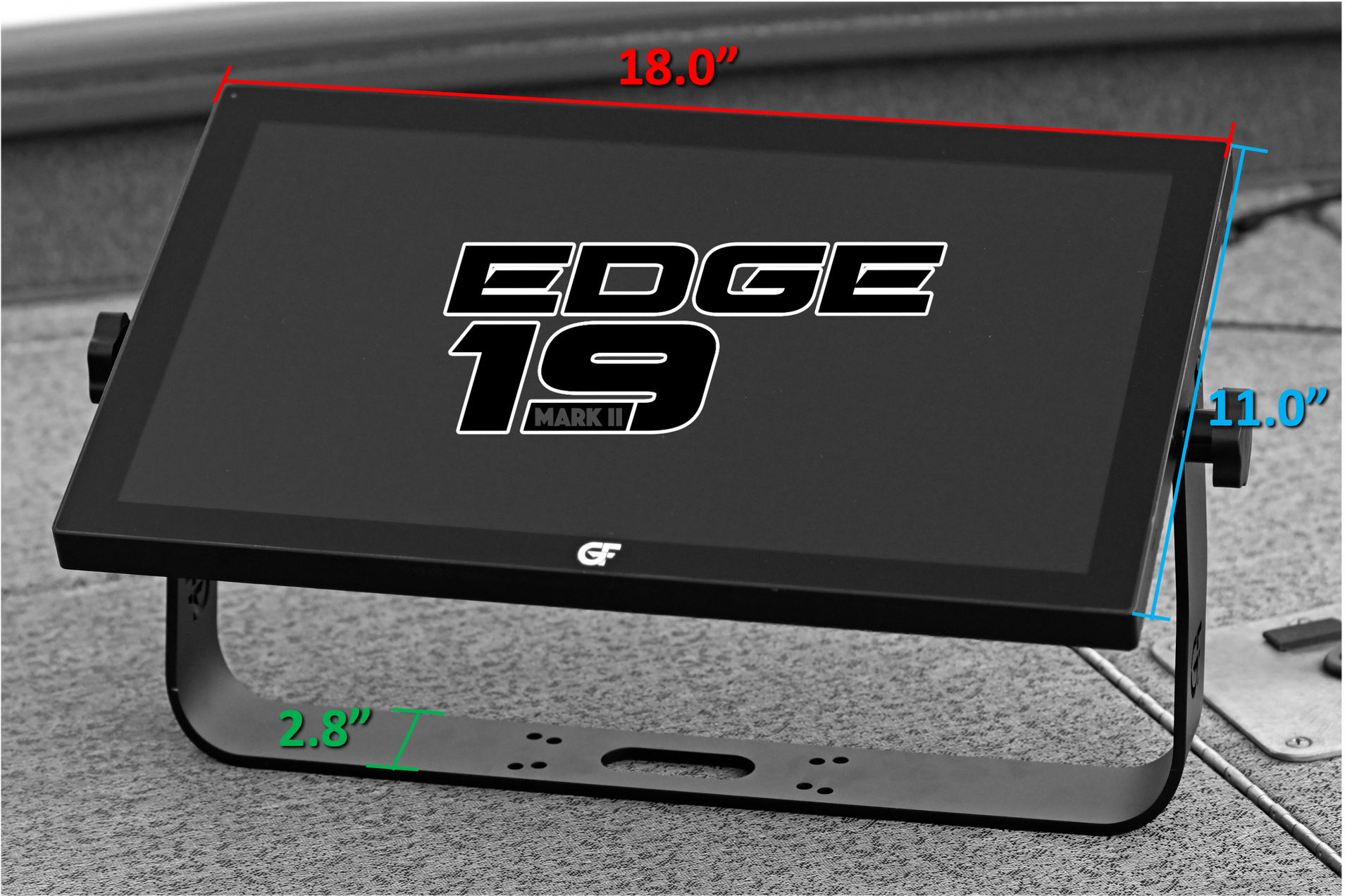

• 18.5" industrial-grade LCD, 1920×1080 Full HD, 16:9 aspect ratio
• Brightness: 1500 nits sunlight-readable with auto-dimming light sensor
• Contrast Ratio: 1000:1
• Viewing Angles: 85°/85°/85°/85° (R/L/U/D)

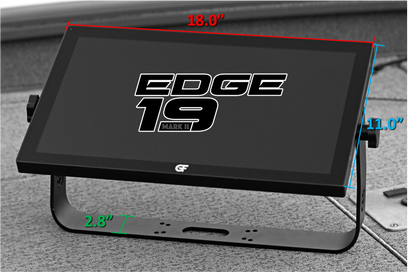

• Weight w/Stand: 14.6lb

👆 Touch Technology:

• 10-point capacitive
• EETI waterproof solution – works even with water on screen

🛡️ Build & Protection:

• Optical bonding prevents condensation, improves clarity
• Anti-glare coating reduces reflections
• IP67-rated, fully waterproof and dustproof

🔋 Power & Connectivity:

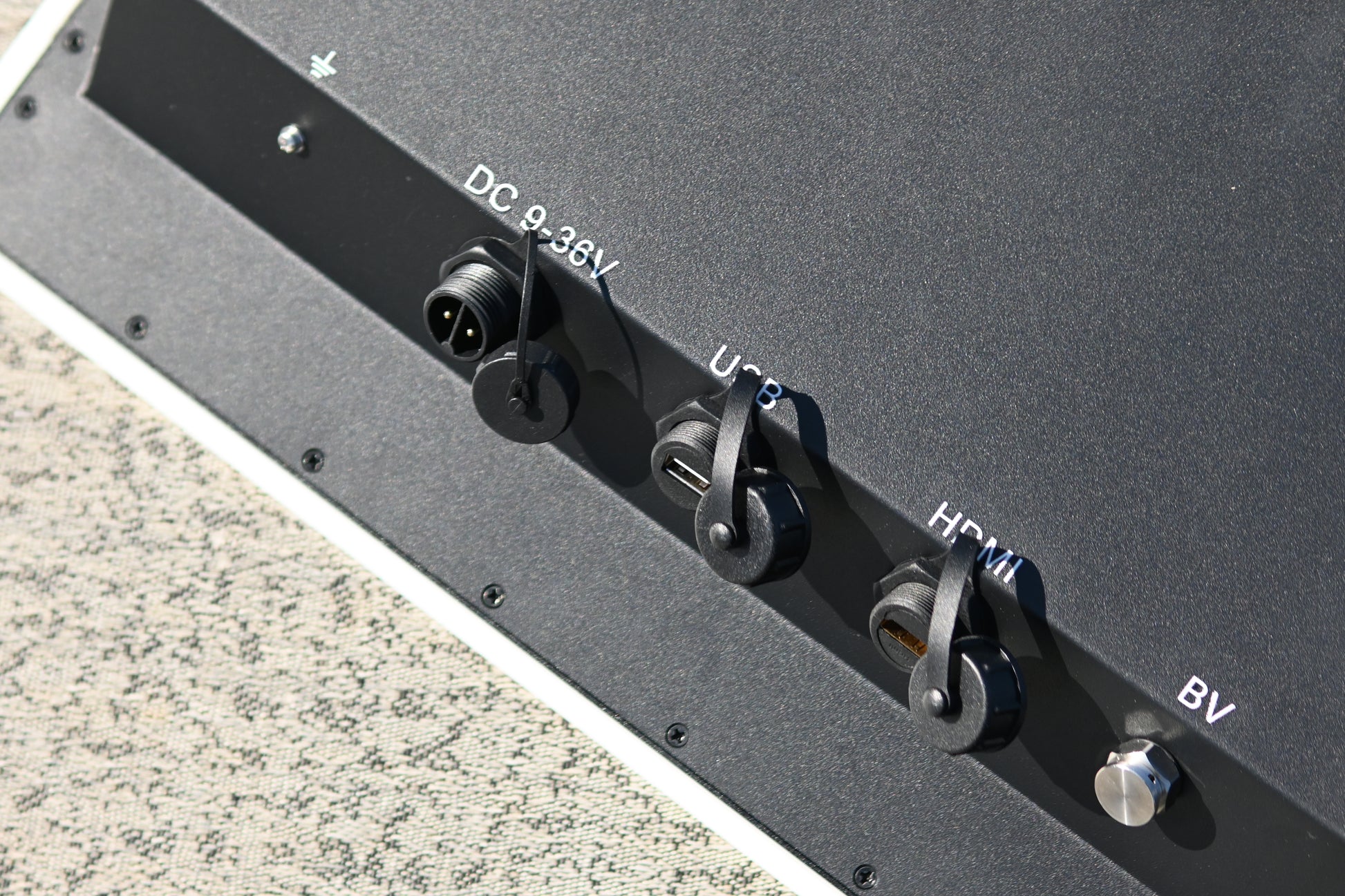

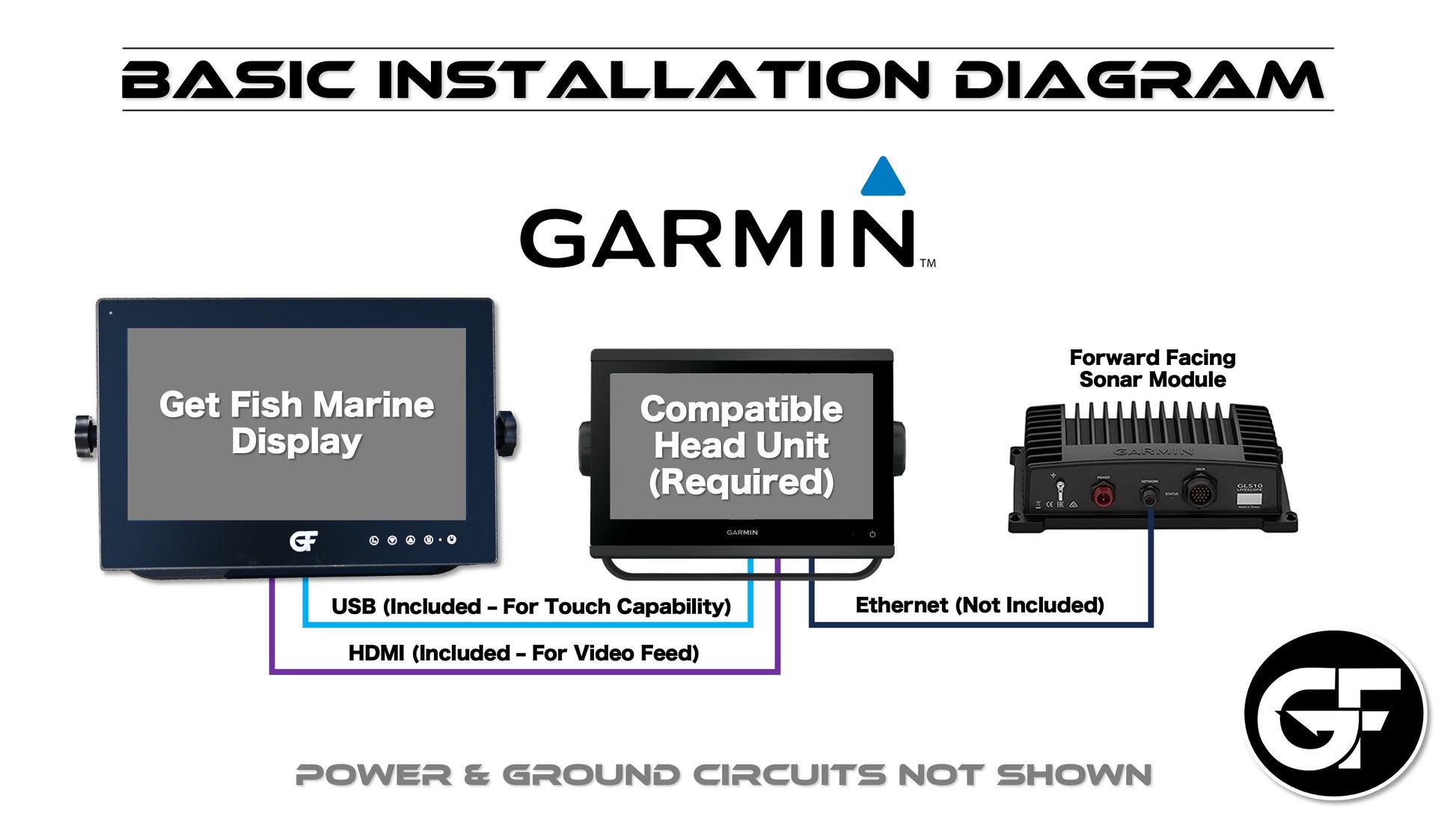

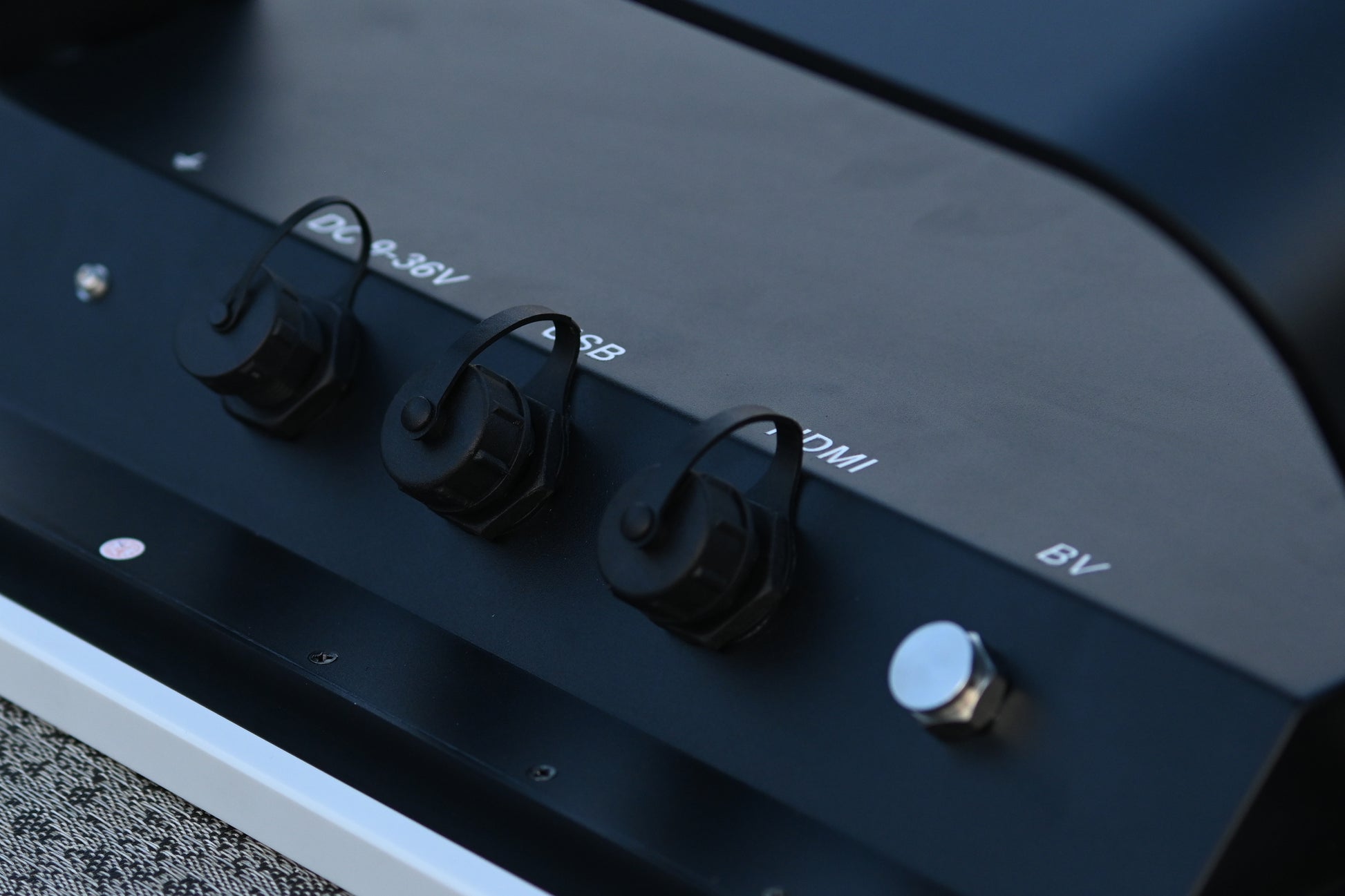

• HDMI + USB Touch + DC IN
• Operating Temp: -4°F to 158°F (-20°C to 70°C)
• Power Input: DC 9–36 V

❓Comparison:

• NBT Marine vs Get Fish Marine Specs (10/06/2025)
