Core 16 (Mark II)  – 15.6" Waterproof HD Display

Rugged. Bright. Built for the water.
The Core 16 delivers crystal-clear visibility in blazing sun, pounding waves, and driving rain — now in a lighter, more refined package. With its 1500-nit industrial-grade display, optical bonding, and anti-glare finish, you get sharp, high-contrast images no matter the conditions. Fully sealed to IP67 standards and engineered to be 33% lighter without compromising strength, it’s ready for any marine power setup and built to perform season after season.

📦 Flat Rate $25 Shipping - Please note: A signature will be required upon delivery of all GF Screen orders to ensure safe arrival.

🎣 Why You’ll Love It

• Sunlight-Readable: 1500 nits with auto-dimming sensor

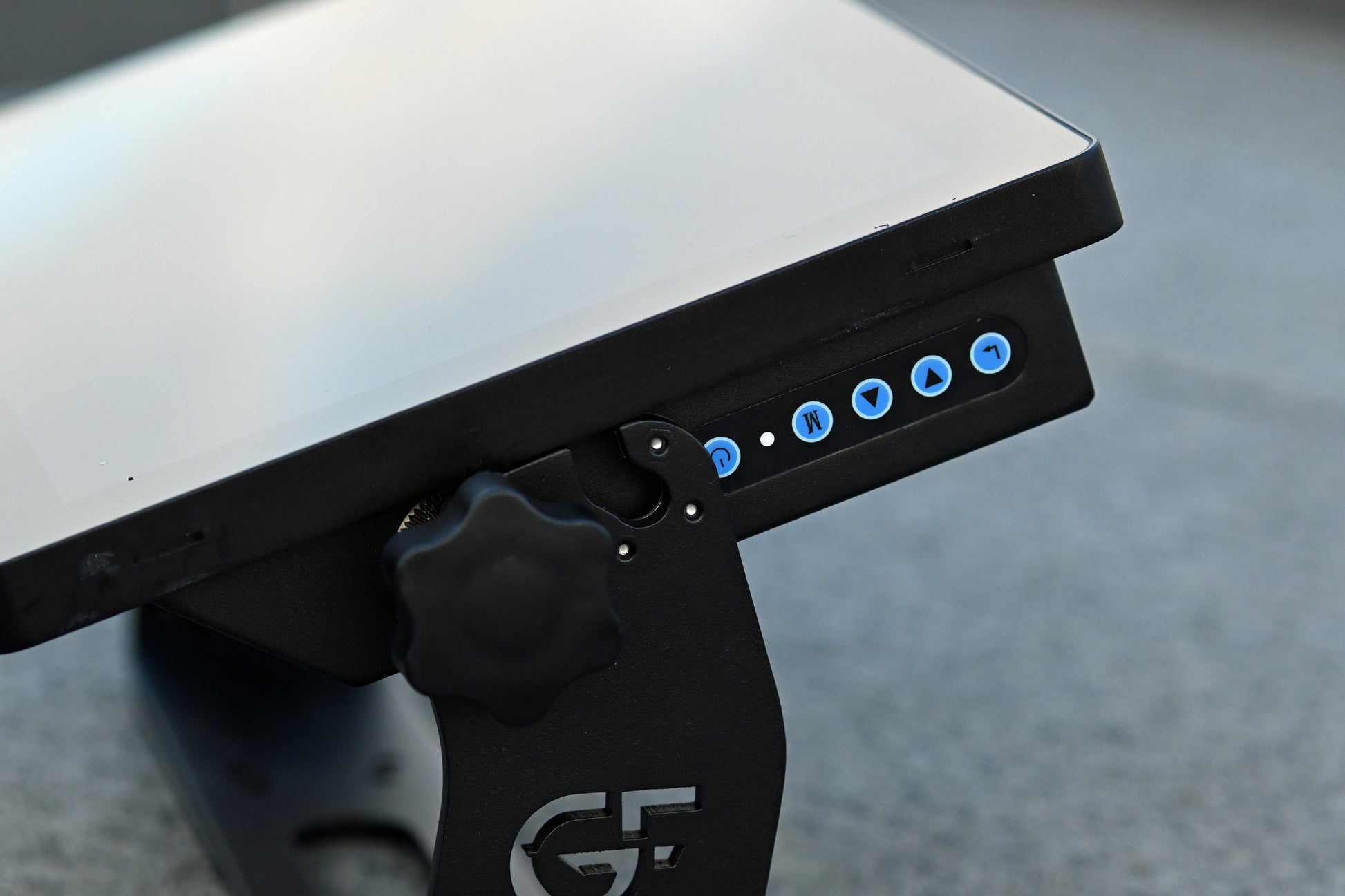

• Slimmer Package: Relocated buttons for a tighter layout on your rig.
• New Aluminum Cradle: Lighter and now with a second pivot point.
• True Waterproofing: IP67-rated, dustproof, and wash-down safe
• Always Clear: Optical bonding + anti-glare to cut fog and reflections
• Friendly Touch: 10-point capacitive works even with water droplets
• Ready to Mount: Includes bracket, sun cover, and waterproof cables

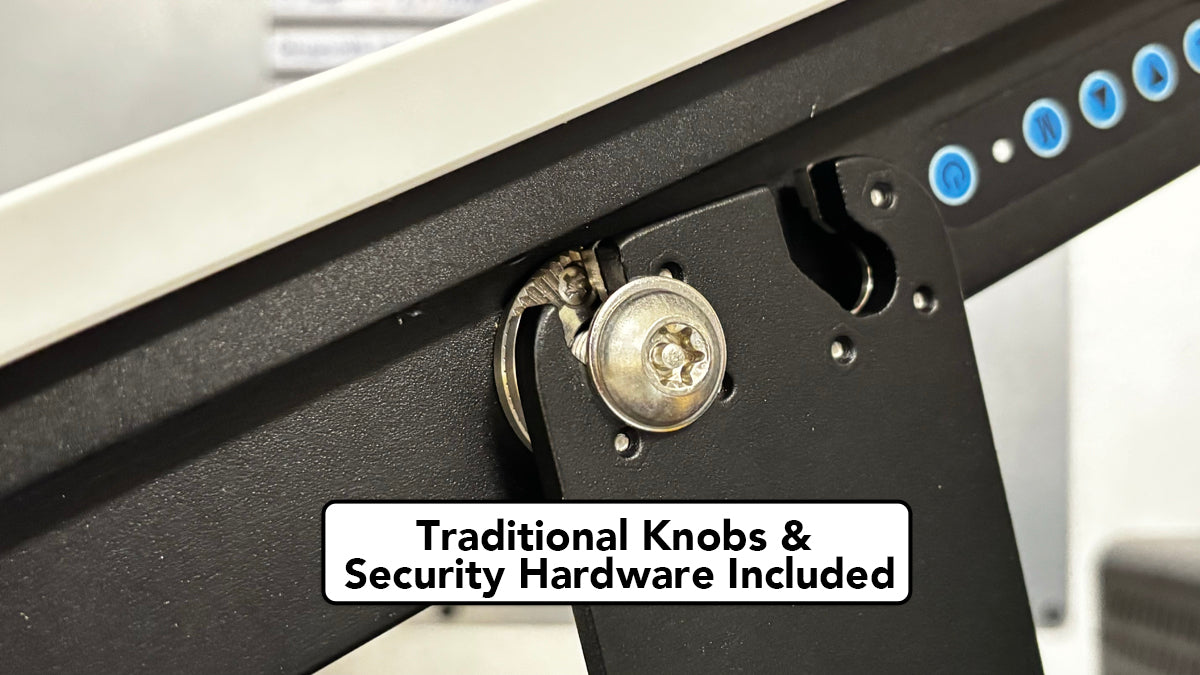

• Added Security: We include Tamper-proof Display-to-Cradle Hardware



📦 Package Includes:

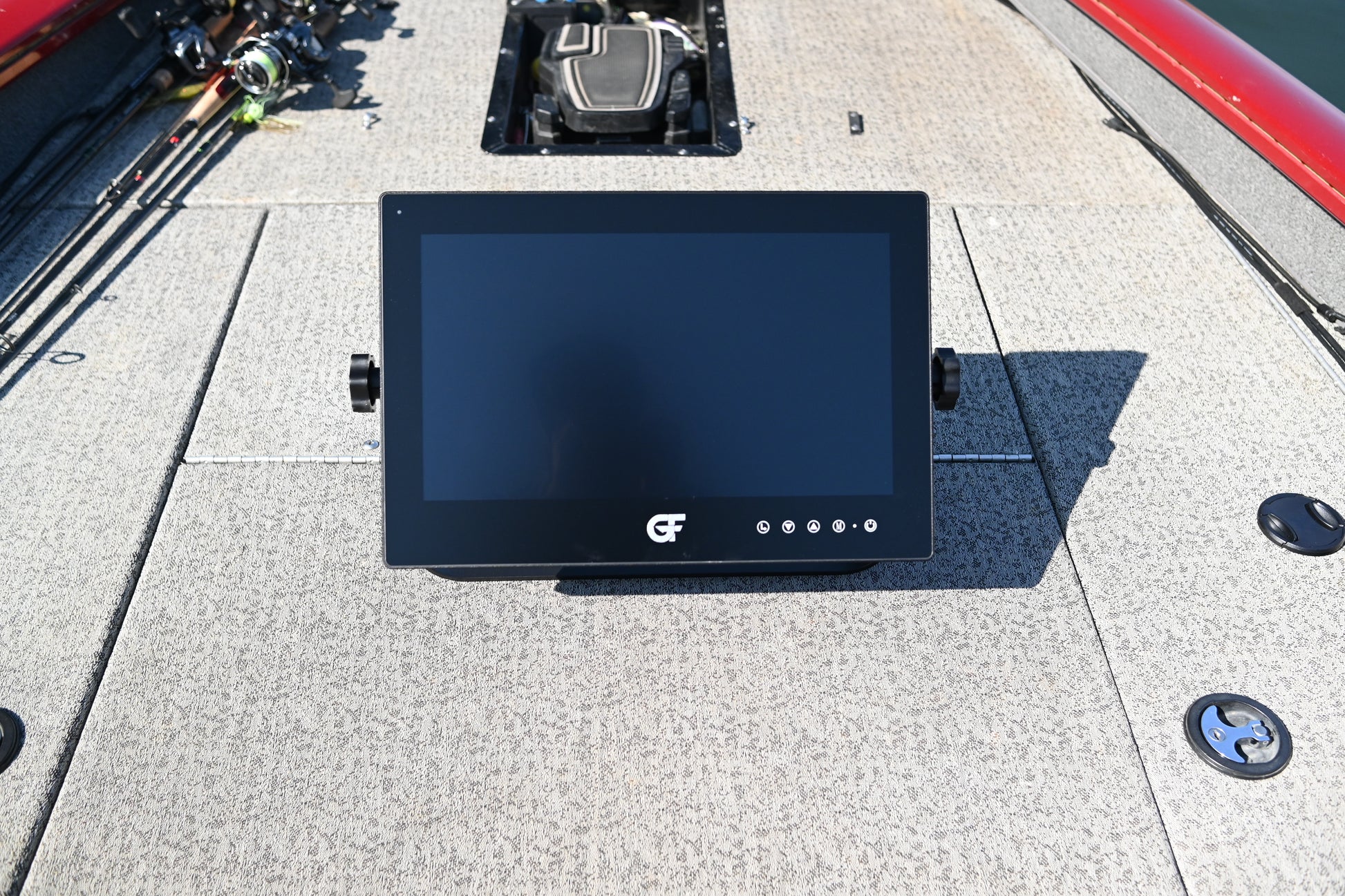

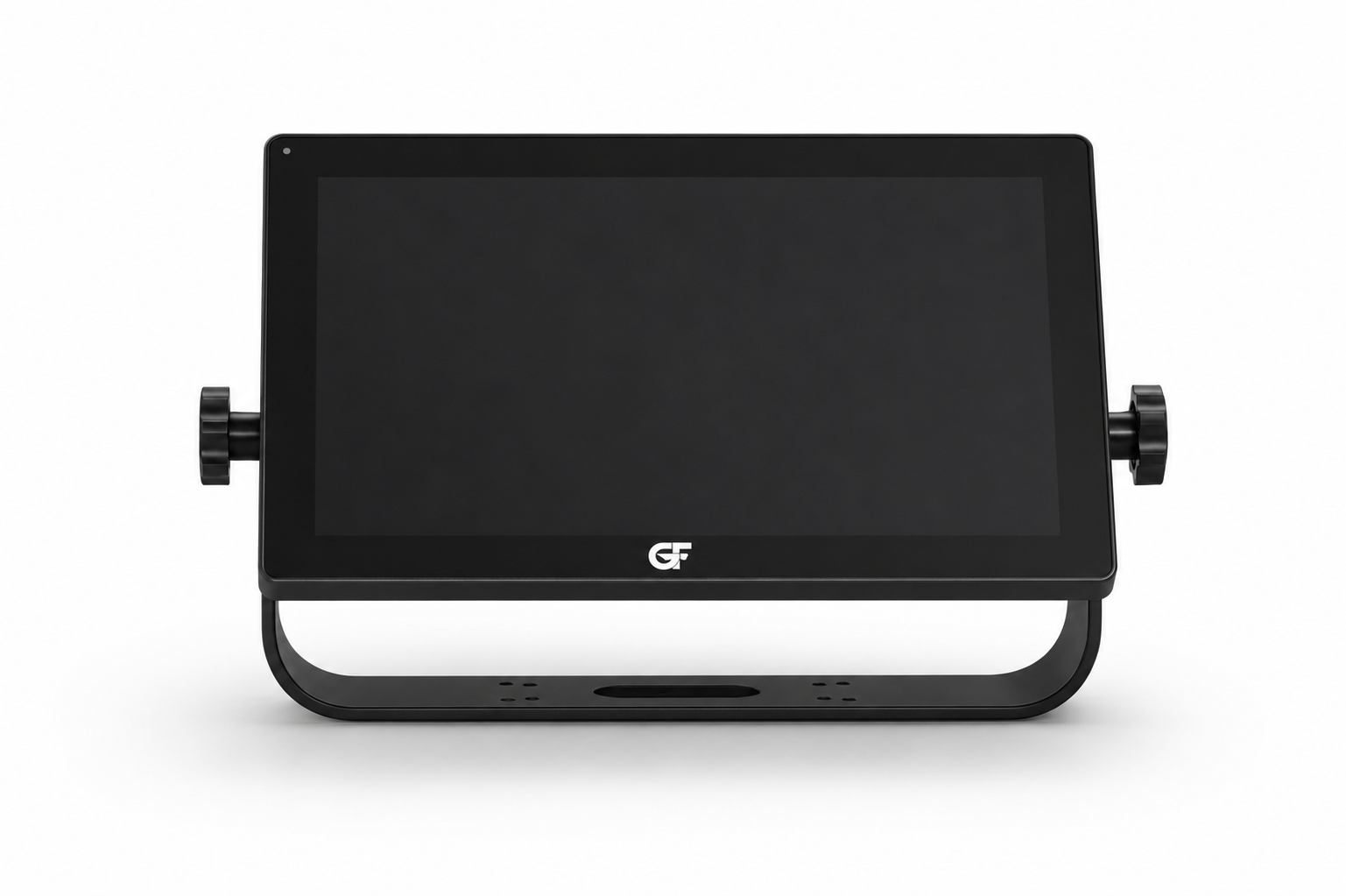

• 15.6" Full IP67 Waterproof Touch Display

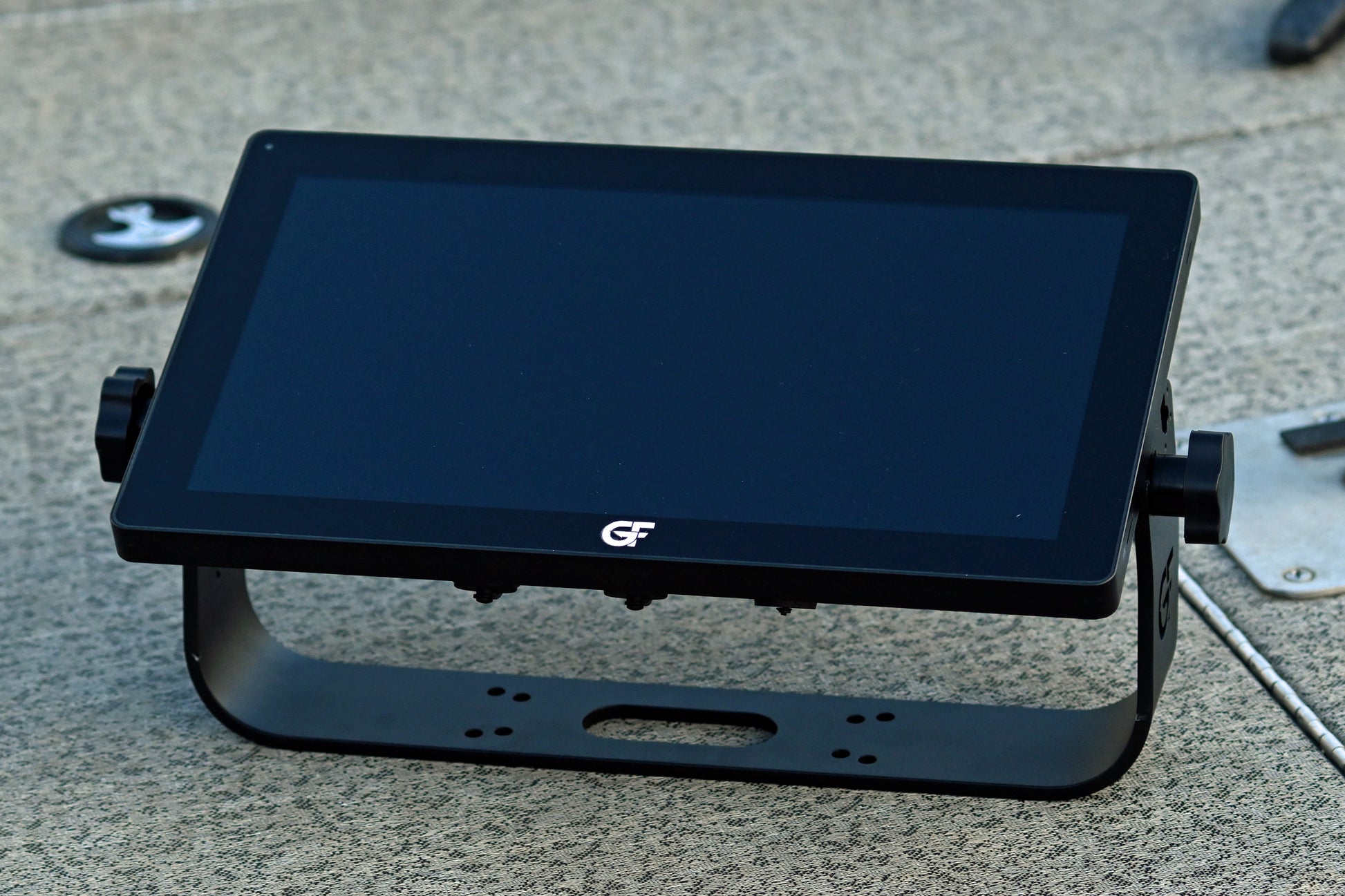

• Heavy-Duty U-shaped mounting bracket w/Knobs

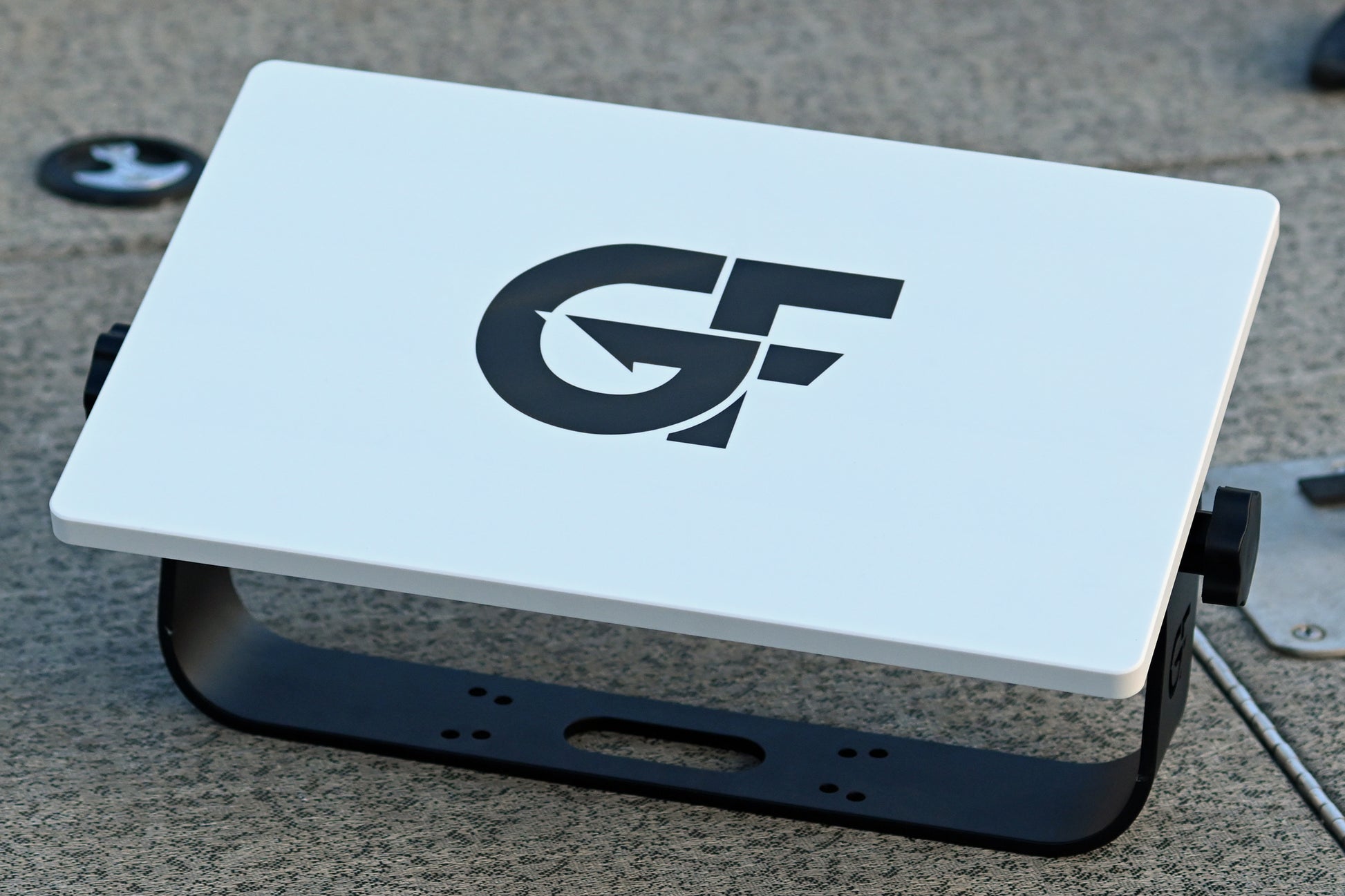

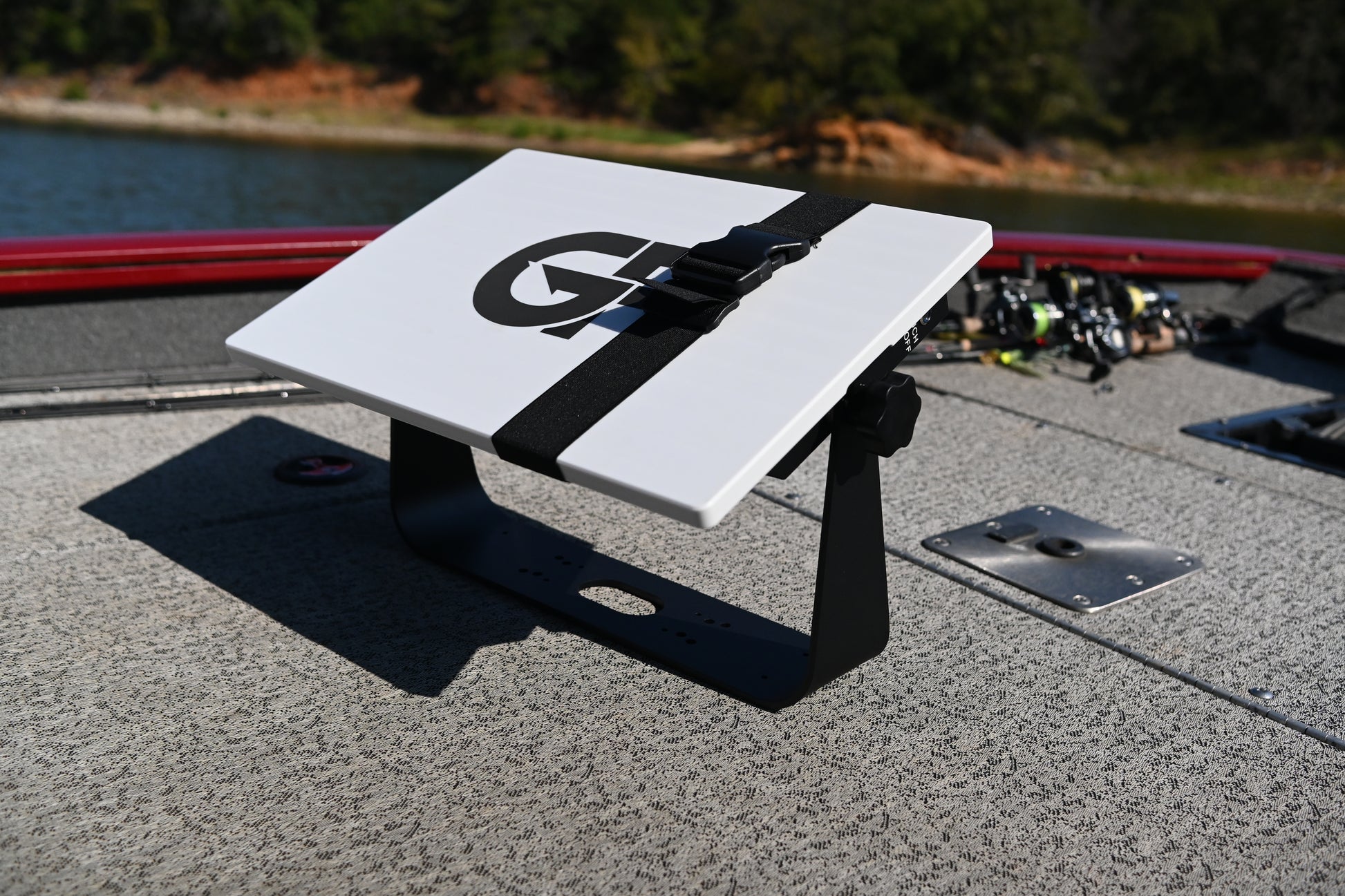

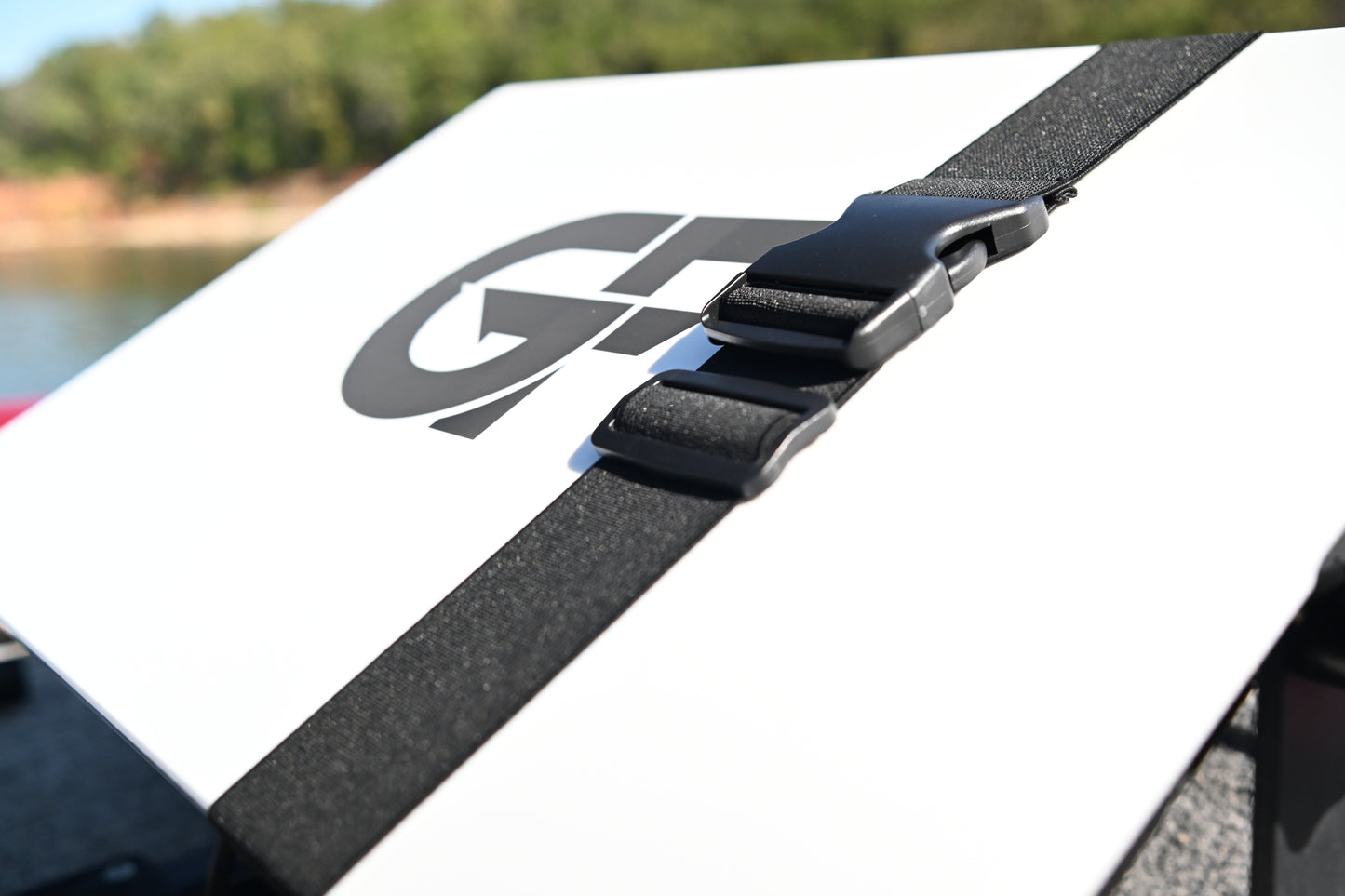

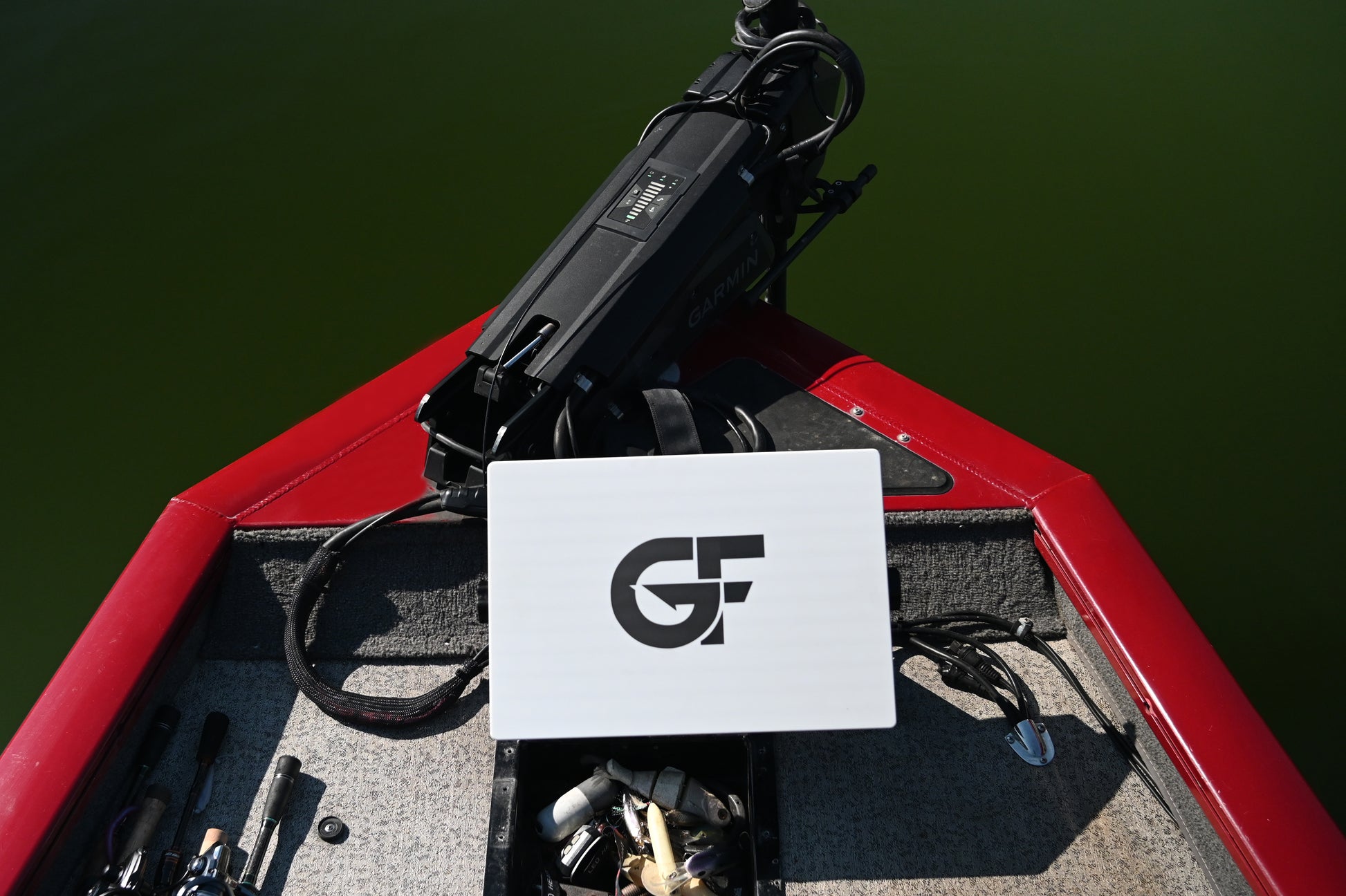

• "GF" protective sun cover with buckle strap (for towing & storage)
• (2) Stainless Tamper-Proof Torx Display-to-Cradle Bolts
• Waterproof HDMI cable – 26 ft (8 m) - Updated Length
• (1) Waterproof USB touch cable – 26 ft (8 m) - Updated Length
• (1) USB adapter -  where applicable.
• DC power cable – 26 ft (8 m) - Updated Length

✅ Compatibility:

• See Get Fish Marine Compatibility Page

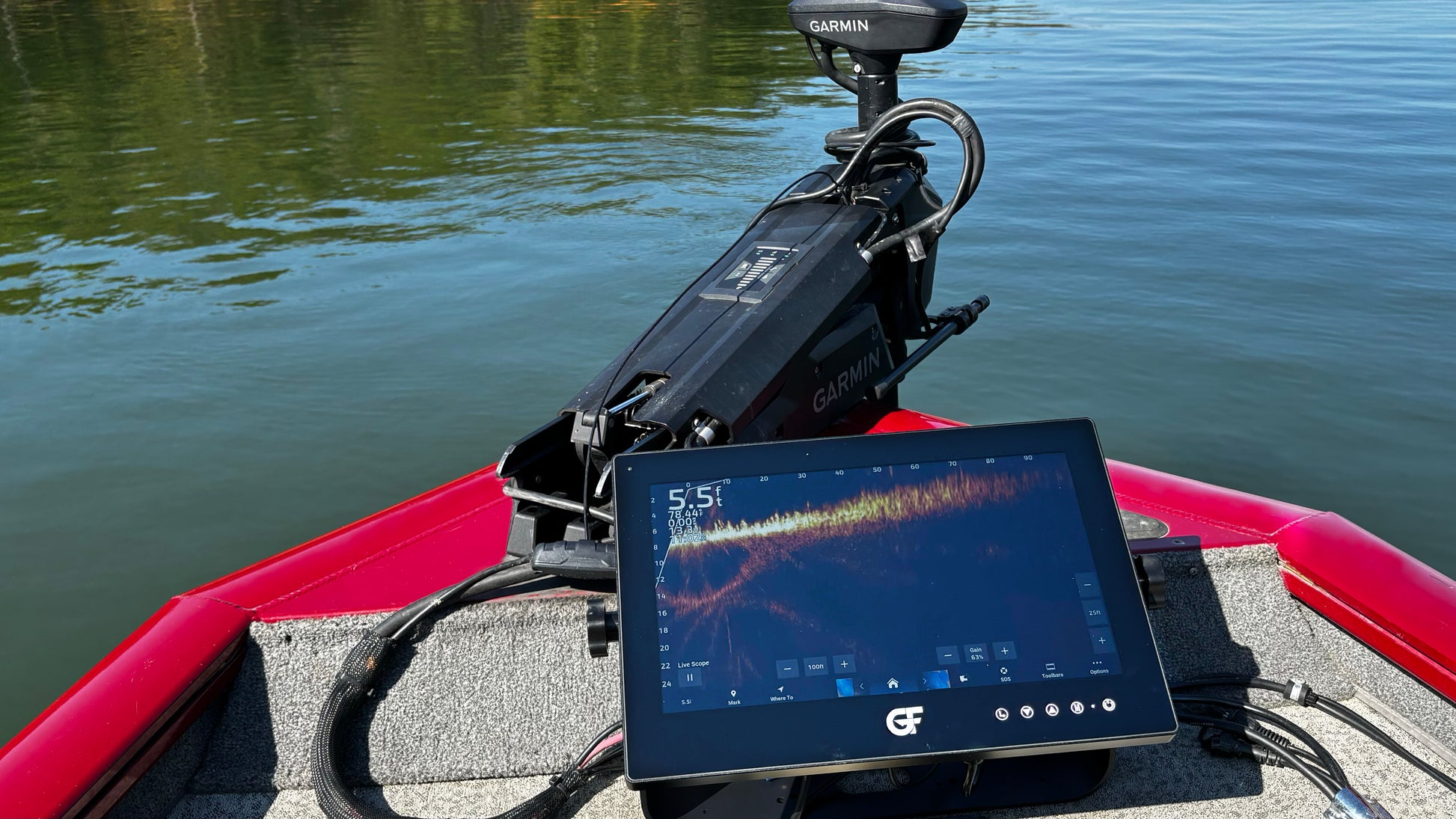

• Compatible with Most Garmin GPSMAP Units


🖥️ Display:

• 15.6" industrial-grade LCD, 1920×1080 Full HD, 16:9 aspect ratio
• Brightness: 1500 nits sunlight-readable with auto-dimming light sensor
• Contrast Ratio: 800:1
• Anti-Glare Viewing Angles: 85°/85°/85°/85° (R/L/U/D)
  • Readable with Polarized Sunglasses
• Weight w/Stand: 11.2lb

👆Touch Technology:

• 10-point capacitive
• EETI waterproof solution – works even with water on screen

🛡️ Build & Protection:

• Optical bonding prevents condensation, improves clarity
• Anti-glare coating reduces reflections
• IP67-rated, fully waterproof and dustproof

🔋 Power & Connectivity:

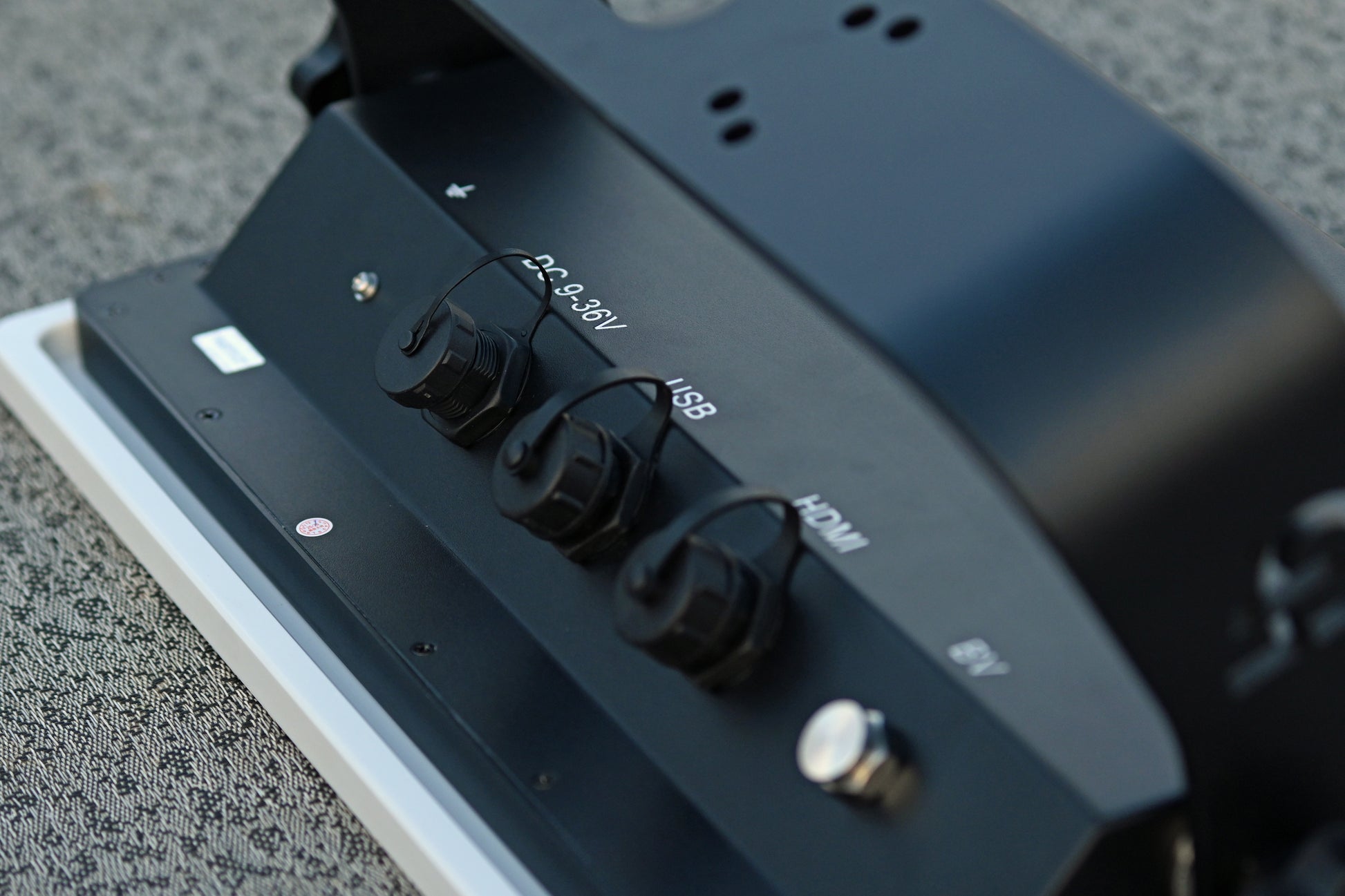

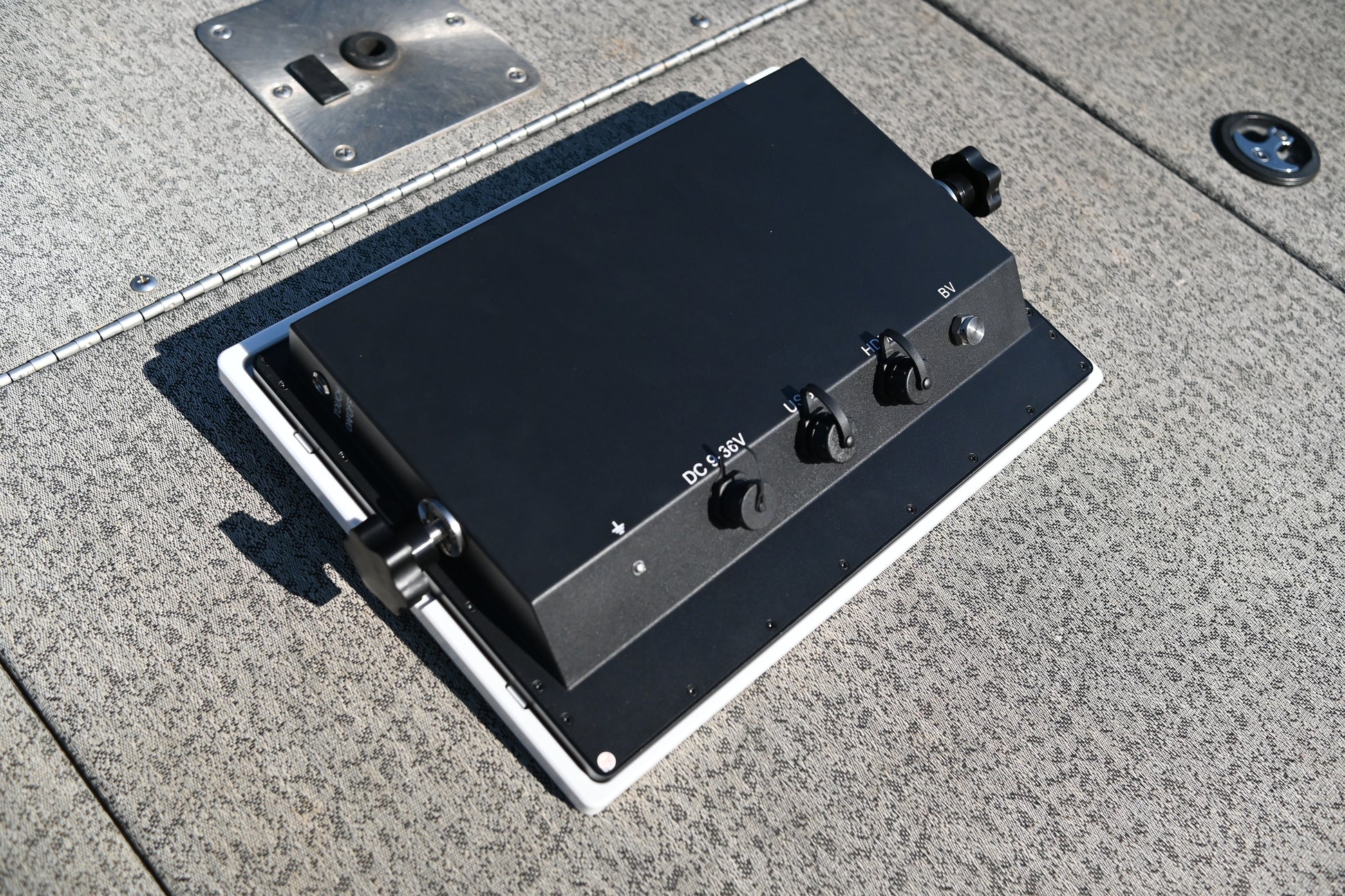

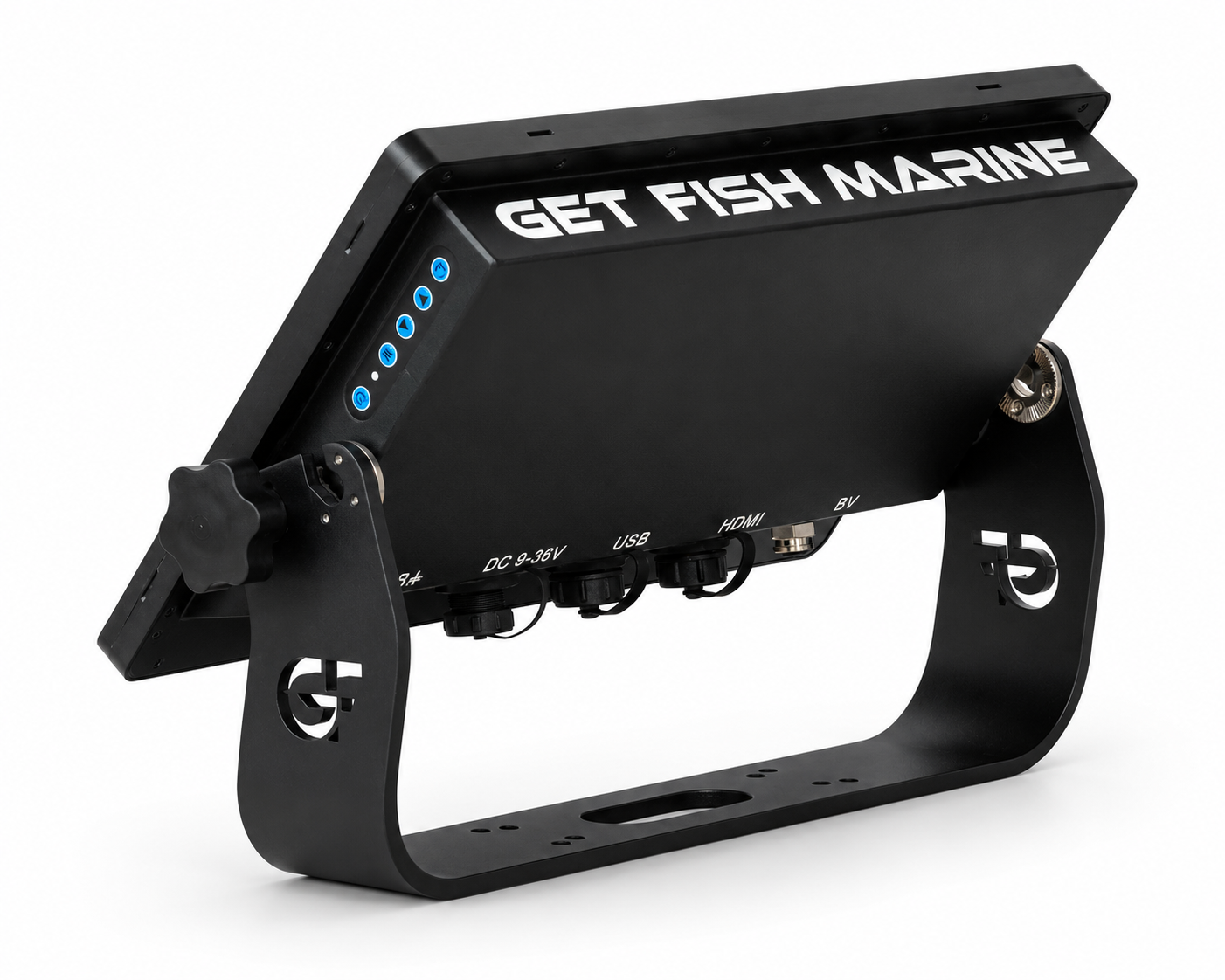

• HDMI + USB Touch + DC IN
• Operating Temp: -4°F to 158°F (-20°C to 70°C)
• Power Input: DC 9–36 V wide-range

❓Comparison:

• NBT Marine vs Get Fish Marine Specs (10/06/2025)
